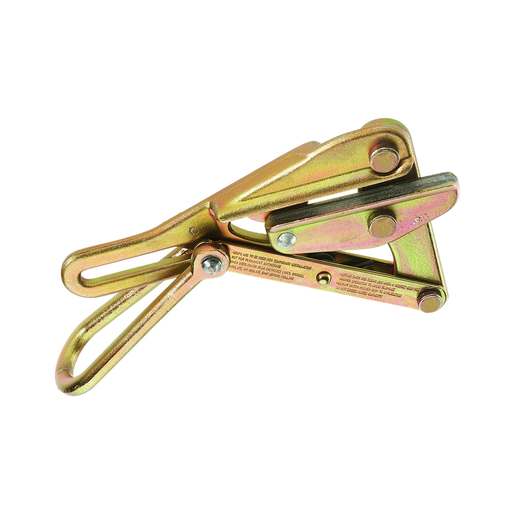

Grip for High Strength Cables 0.37"
MFG #1613-40
Product Description:
This Klein Tools 1613-40 Chicago Grip is designed for EHS, Messenger, and Guy Strand cable. The double V grooves provide four-point contact, which reduces chances of slipping and also provides proper alignment of wire and cable. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
HESCO Part Number
KLE161340
UPC
092644470158
Manufacturer Part Number
1613-40
Manufacturer
Klein Tools
Grip for High Strength Cables 0.37"
MFG #1613-40
Product Description:
This Klein Tools 1613-40 Chicago Grip is designed for EHS, Messenger, and Guy Strand cable. The double V grooves provide four-point contact, which reduces chances of slipping and also provides proper alignment of wire and cable. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
HESCO Part Number
KLE161340
UPC
092644470158
Manufacturer Part Number
1613-40
Manufacturer
Klein Tools
Grip for High Strength Cables 0.37"
MFG #1613-40
Product Description:
This Klein Tools 1613-40 Chicago Grip is designed for EHS, Messenger, and Guy Strand cable. The double V grooves provide four-point contact, which reduces chances of slipping and also provides proper alignment of wire and cable. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
HESCO Part Number
KLE161340
UPC
092644470158
Manufacturer Part Number
1613-40
Manufacturer
Klein Tools
- Features
- Specifications
- Resources
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- Works with aircraft, EHS, messenger and guy strand cable
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Designed for cable sizes from 0.12 to 0.37-Inch (3.05 to 9.40 mm) and has max safe load of 4500-Pound (2041 kg)
- Do not exceed rated capacity.
- Double ''V'' grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
- Always match proper size and type of grip to application.
- Sawtooth profile provides extra gripping power
- Grips are to be used for temporary installation, not for permanent anchorage.
- Made in USA
- For larger conductors, see our grips with round inside-jaw contour
Specifications
| Application | :Â Â | Extra-High-Strength Cables, Messenger, Guy Strand |
| Maximum Safe Load | :Â Â | 4500 lb (2041 kg) |
| Type | :Â Â | Chicago Grip |
| Jaw Type | :Â Â | Double V |
| Weight | :Â Â | 2.7 lb (1.2 kg) |
| Cable Diameter | :Â Â | 0.12" to 0.37" (3.05 to 9.4 mm) |
| Jaw Length | :Â Â | 4.188" (10.6 cm) |
| Cable Type | :Â Â | Aircraft, EHS, Messenger, Guy Strand |
| Locking Handle | :Â Â | Yes |
| Hot Latch | :Â Â | No |
| Spring | :Â Â | No |
| Swing Latch | :Â Â | No |
| Accessories | :Â Â | 25450 |
| Item Height | :Â Â | 2.0250 in |
| Item Width | :Â Â | 4.2750 in |
| Item Depth | :Â Â | 7.4250 in |
| Item Weight | :Â Â | 2.6640 lbs |
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- Works with aircraft, EHS, messenger and guy strand cable
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Designed for cable sizes from 0.12 to 0.37-Inch (3.05 to 9.40 mm) and has max safe load of 4500-Pound (2041 kg)
- Do not exceed rated capacity.
- Double ''V'' grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
- Always match proper size and type of grip to application.
- Sawtooth profile provides extra gripping power
- Grips are to be used for temporary installation, not for permanent anchorage.
- Made in USA
- For larger conductors, see our grips with round inside-jaw contour
Specifications
Application :Â Â Extra-High-Strength Cables, Messenger, Guy Strand Maximum Safe Load :Â Â 4500 lb (2041 kg) Type :Â Â Chicago Grip Jaw Type :Â Â Double V Weight :Â Â 2.7 lb (1.2 kg) Cable Diameter :Â Â 0.12" to 0.37" (3.05 to 9.4 mm) Jaw Length :Â Â 4.188" (10.6 cm) Cable Type :Â Â Aircraft, EHS, Messenger, Guy Strand Locking Handle :Â Â Yes Hot Latch :Â Â No Spring :Â Â No Swing Latch :Â Â No Accessories :Â Â 25450 Item Height :Â Â 2.0250 in Item Width :Â Â 4.2750 in Item Depth :Â Â 7.4250 in Item Weight :Â Â 2.6640 lbs - Downloads
Spec SheetInstructionsInstructions 2
