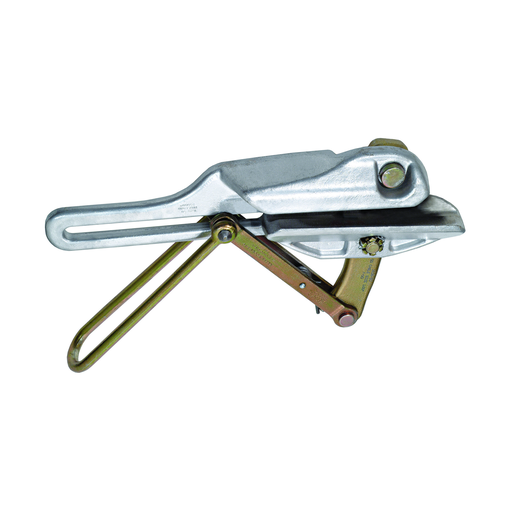

Grip for Large Diameter Conductors
MFG #162850
Requires Quote
/ EACH
Product Description:
This Chicago® Grip is specifically made for ACSR, AAC and copper cabling with larger diameters. These non-returnable grips are special order only. When ordering, please specify exact outside cable diameter, circular mills with strand combination, or the manufacturer's code. Please allow 30 days for delivery.
HESCO Part Number
KLE162850
UPC
092644470660
Manufacturer Part Number
162850
Manufacturer
Klein Tools
Grip for Large Diameter Conductors
MFG #162850
Product Description:
This Chicago® Grip is specifically made for ACSR, AAC and copper cabling with larger diameters. These non-returnable grips are special order only. When ordering, please specify exact outside cable diameter, circular mills with strand combination, or the manufacturer's code. Please allow 30 days for delivery.
HESCO Part Number
KLE162850
UPC
092644470660
Manufacturer Part Number
162850
Manufacturer
Klein Tools
Requires Quote
/ EACH
- Features
- Specifications
- Resources
- Removable jaw allows for installation of cable
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- Round jaws are provide maximum contact with the cable minimizing deformation
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Removable floating jaw held in place by a bolt swaged into the lever arm of the grip, secured by a nut and cotter pin
- Do not exceed rated capacity.
- These Made in USA grips are special order only. Please allow 30 days for delivery. These are not returnable.
- Always match proper size and type of grip to application.
- Jaw must be removed to insert cable
- Grips are to be used for temporary installation, not for permanent anchorage.
- Orders must specify exact outside diameter of cables, circular mills with strand combination, or manufacturer's code.
- These grips are special order only, please allow 30 days for delivery, not returnable -- Removable floating jaw held in place by a bolt swaged into the lever arm of the grip, secured by a nut and cotter pin -- Jaw must be removed to insert cable
Specifications
| Cable Diameter | : | 0.95" to 1.89" (24.13 to 48 mm) |
| Overall Width | : | 3.12" (7.9 cm) |
| Type | : | Chicago Grip |
| Application | : | Wire Pulling |
| Overall Height | : | 9.19" (23.3 cm) |
| Material | : | Steel |
| Maximum Safe Load | : | 25,000 lb (11,340 kg) |
| Cable Type | : | ACSR, ACSS, ACSS-TW, AAC |
| Jaw Length | : | 10.75" (27.3 cm) |
| Overall Length | : | 31" (78.7 cm) |
| Jaw Type | : | Round |
| Locking Handle | : | Yes |
| Hot Latch | : | No |
| Spring | : | Yes |
| Swing Latch | : | No |
| Teeth Type | : | Smooth |
| Height | : | 2.9250 in |
| Width | : | 8.5500 in |
| Depth | : | 17.5500 in |
| Weight | : | 29.0250 lbs |
Instructions
Grip_Instructions.pdf
Grip_Maintenance_Guide_139168ART.pdf
Downloads
Spec Sheet
Video Download
Grip_Instructions.pdfGrip_Maintenance_Guide_139168ART.pdfDownloads
Spec SheetVideo Download- Removable jaw allows for installation of cable
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- Round jaws are provide maximum contact with the cable minimizing deformation
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Removable floating jaw held in place by a bolt swaged into the lever arm of the grip, secured by a nut and cotter pin
- Do not exceed rated capacity.
- These Made in USA grips are special order only. Please allow 30 days for delivery. These are not returnable.
- Always match proper size and type of grip to application.
- Jaw must be removed to insert cable
- Grips are to be used for temporary installation, not for permanent anchorage.
- Orders must specify exact outside diameter of cables, circular mills with strand combination, or manufacturer's code.
- These grips are special order only, please allow 30 days for delivery, not returnable -- Removable floating jaw held in place by a bolt swaged into the lever arm of the grip, secured by a nut and cotter pin -- Jaw must be removed to insert cable
Specifications
Cable Diameter : 0.95" to 1.89" (24.13 to 48 mm) Overall Width : 3.12" (7.9 cm) Type : Chicago Grip Application : Wire Pulling Overall Height : 9.19" (23.3 cm) Material : Steel Maximum Safe Load : 25,000 lb (11,340 kg) Cable Type : ACSR, ACSS, ACSS-TW, AAC Jaw Length : 10.75" (27.3 cm) Overall Length : 31" (78.7 cm) Jaw Type : Round Locking Handle : Yes Hot Latch : No Spring : Yes Swing Latch : No Teeth Type : Smooth Height : 2.9250 in Width : 8.5500 in Depth : 17.5500 in Weight : 29.0250 lbs - InstructionsGrip_Instructions.pdfGrip_Maintenance_Guide_139168ART.pdf
DownloadsSpec SheetVideo Download
