CCH19-S10-M Cable Clamp
MFG #CCH19-S10-M
$0.17 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
Product Description:

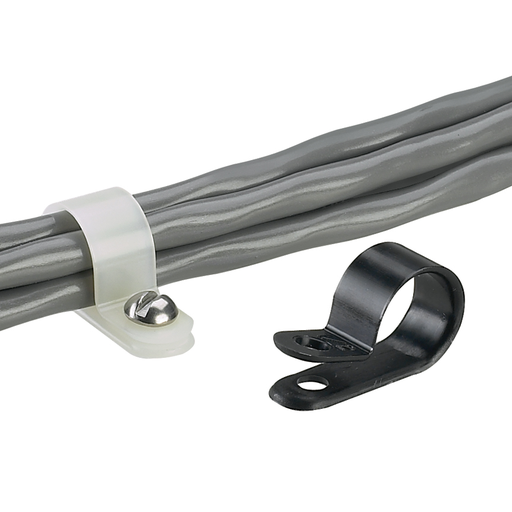

Fixed diameter cable clamp, heavy duty, #10 screw (M5), .19" (4.8mm) bundle, white, bulk package.
HESCO Part Number
PANCCH19S10M
UPC
074983600519
Manufacturer Part Number
CCH19-S10-M
Manufacturer
Panduit
CCH19-S10-M Cable Clamp
MFG #CCH19-S10-M
Product Description:
Fixed diameter cable clamp, heavy duty, #10 screw (M5), .19" (4.8mm) bundle, white, bulk package.
HESCO Part Number
PANCCH19S10M
UPC
074983600519
Manufacturer Part Number
CCH19-S10-M
Manufacturer
Panduit
$0.17 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
- Specifications
- Resources
Specifications
| Product Segment | : | IEI |
| Note | : | Not available in Japan |
| Application | : | For securing wires and cables via fixed diameter clamping |
| Product Type | : | Cable Clamp |
| Color | : | Natural |
| Environment | : | Indoor |
| Finish/Coating | : | None |
| Material | : | Nylon 6.6 |
| Maximum Bundle Diameter (mm) | : | 4.8 |
| Maximum Bundle Diameter (In.) | : | 0.19 |
| Maximum Operating Temperature (°F) | : | 185 |
| Maximum Operating Temperature (°C) | : | 85 |
| Minimum Operating Temperature (°C) | : | -60 |
| Minimum Operating Temperature (°F) | : | -76 |
| Mount Method | : | #10 (M5) Screw |
| Mounting Hole Diameter (In.) | : | 0.203 |
| Mounting Hole Diameter (mm) | : | 5.1 |
| Overall Height (mm) | : | 7.4 |
| Overall Height (In.) | : | 0.29 |
| Overall Length (In.) | : | 0.565 |
| Overall Length (mm) | : | 14.4 |
| Overall Width (In.) | : | 0.5 |
| Overall Width (mm) | : | 12.7 |
| Standards Met | : | UL Recognized E136577, RoHS Compliant |
| Maximum Flange Thickness (In.) | : | 0.05 |
| Maximum Flange Thickness (mm) | : | 1.3 |
Packaging Details | ||
| UPC | : | 07498360051 |
| GTIN Package | : | 00074983600519 |
| Standard Package Volume Ft3 | : | 0.1497 |
| Standard Package Weight Pounds | : | 1.6000 |
| Std Package Height In | : | 3 |
| Std Package Height MM | : | 76.2 |
| Std Package Length In | : | 10.85 |
| Std Package Length MM | : | 275.59 |
| Std Package Width In | : | 9.7 |
| Std Package Width MM | : | 246.38 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 1000 |
| GTIN Carton | : | 50074983600514 |
| Standard Carton Volume Ft3 | : | 0.7483 |
| Standard Carton Weight Pounds | : | 8.0000 |
| Std Carton Height In | : | 9.7 |
| Std Carton Height MM | : | 246.38 |
| Std Carton Length In | : | 14.2 |
| Std Carton Length MM | : | 360.68 |
| Std Carton Width In | : | 9.1 |
| Std Carton Width MM | : | 231.14 |
| Std Ctn Qty | : | 5000 |
| Min. Order UOM | : | Piece |
| Country of Origin 2Digit | : | US |
| RoHS Compliant | : | Compliant |
| EAN | : | 00074983600519 |
| REACH Status | : | False |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | No |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 5,000 |
| Pallet Quantity | : | 300,000 |
| Pallet Volume | : | 44.899653 |
| Pallet Weight | : | 480.0000 |
Specifications
Product Segment : IEI Note : Not available in Japan Application : For securing wires and cables via fixed diameter clamping Product Type : Cable Clamp Color : Natural Environment : Indoor Finish/Coating : None Material : Nylon 6.6 Maximum Bundle Diameter (mm) : 4.8 Maximum Bundle Diameter (In.) : 0.19 Maximum Operating Temperature (°F) : 185 Maximum Operating Temperature (°C) : 85 Minimum Operating Temperature (°C) : -60 Minimum Operating Temperature (°F) : -76 Mount Method : #10 (M5) Screw Mounting Hole Diameter (In.) : 0.203 Mounting Hole Diameter (mm) : 5.1 Overall Height (mm) : 7.4 Overall Height (In.) : 0.29 Overall Length (In.) : 0.565 Overall Length (mm) : 14.4 Overall Width (In.) : 0.5 Overall Width (mm) : 12.7 Standards Met : UL Recognized E136577, RoHS Compliant Maximum Flange Thickness (In.) : 0.05 Maximum Flange Thickness (mm) : 1.3 Packaging Details
UPC : 07498360051 GTIN Package : 00074983600519 Standard Package Volume Ft3 : 0.1497 Standard Package Weight Pounds : 1.6000 Std Package Height In : 3 Std Package Height MM : 76.2 Std Package Length In : 10.85 Std Package Length MM : 275.59 Std Package Width In : 9.7 Std Package Width MM : 246.38 Std. Pkg. UOM : Piece UOM EA PK : PK Std. Pkg. Qty. : 1000 GTIN Carton : 50074983600514 Standard Carton Volume Ft3 : 0.7483 Standard Carton Weight Pounds : 8.0000 Std Carton Height In : 9.7 Std Carton Height MM : 246.38 Std Carton Length In : 14.2 Std Carton Length MM : 360.68 Std Carton Width In : 9.1 Std Carton Width MM : 231.14 Std Ctn Qty : 5000 Min. Order UOM : Piece Country of Origin 2Digit : US RoHS Compliant : Compliant EAN : 00074983600519 REACH Status : False California Pro65 Cancer : No ARRA Compliant : Y Mercury Content Indicator : No Hazardous Material Flag : N Min Order Qty : 5,000 Pallet Quantity : 300,000 Pallet Volume : 44.899653 Pallet Weight : 480.0000 - Part Drawings
