FxdDiaClmp,.38"Bdl,#10Screw,WH,PK100
MFG #CCH38-S10-C
$0.22 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
Product Description:

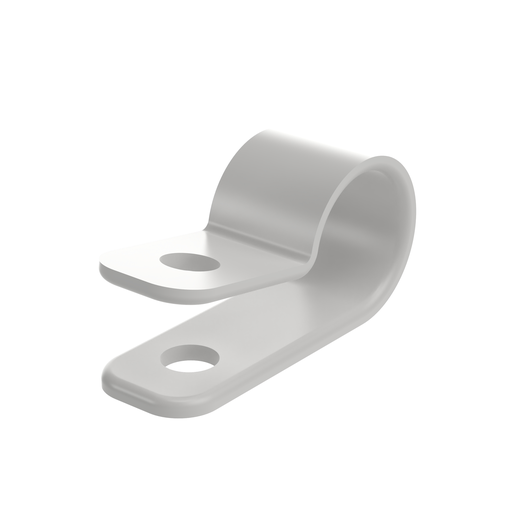

Fixed diameter cable clamp, heavy duty, #10 screw (M5), .38" (9.7mm) bundle, white, standard package.
HESCO Part Number
PANCCH38S10C
UPC
074983600090
Manufacturer Part Number
CCH38-S10-C
Manufacturer
Panduit
FxdDiaClmp,.38"Bdl,#10Screw,WH,PK100
MFG #CCH38-S10-C
$0.22 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
Product Description:
Fixed diameter cable clamp, heavy duty, #10 screw (M5), .38" (9.7mm) bundle, white, standard package.
HESCO Part Number
PANCCH38S10C
UPC
074983600090
Manufacturer Part Number
CCH38-S10-C
Manufacturer
Panduit
FxdDiaClmp,.38"Bdl,#10Screw,WH,PK100
MFG #CCH38-S10-C
Product Description:
Fixed diameter cable clamp, heavy duty, #10 screw (M5), .38" (9.7mm) bundle, white, standard package.
HESCO Part Number
PANCCH38S10C
UPC
074983600090
Manufacturer Part Number
CCH38-S10-C
Manufacturer
Panduit
$0.22 / E
(Must order in increments of 100/E)
(Must order in increments of 100/E)
- Specifications
- Resources
- Product
Specifications
| Product Segment | : | IEI |
| Product Type | : | Cable Clamp |
| Note | : | Not available in Japan |
| Application | : | For securing wires and cables via fixed diameter clamping |
| Color | : | Natural |
| Environment | : | Indoor |
| Finish/Coating | : | None |
| Material | : | Nylon 6.6 |
| Maximum Bundle Diameter (mm) | : | 9.6 |
| Maximum Bundle Diameter (In.) | : | 0.38 |
| Minimum Operating Temperature (°C) | : | -60 |
| Maximum Operating Temperature (°F) | : | 185 |
| Maximum Operating Temperature (°C) | : | 85 |
| Minimum Operating Temperature (°F) | : | -76 |
| Mount Method | : | #10 (M5) Screw |
| Mounting Hole Diameter (In.) | : | 0.203 |
| Mounting Hole Diameter (mm) | : | 5.1 |
| Overall Height (In.) | : | 0.48 |
| Overall Height (mm) | : | 12.1 |
| Overall Length (mm) | : | 19.55 |
| Overall Length (In.) | : | 0.77 |
| Overall Width (In.) | : | 0.5 |
| Overall Width (mm) | : | 12.7 |
| Standards Met | : | UL Recognized E136577, RoHS Compliant |
| Maximum Flange Thickness (In.) | : | 0.05 |
| Maximum Flange Thickness (mm) | : | 1.3 |
Packaging Details | ||
| UPC | : | 07498360009 |
| GTIN Package | : | 00074983600090 |
| Standard Package Volume Ft3 | : | 0.0539 |
| Standard Package Weight Pounds | : | 0.3500 |
| Std Package Height In | : | 1.8 |
| Std Package Height MM | : | 45.72 |
| Std Package Length In | : | 7.2 |
| Std Package Length MM | : | 182.88 |
| Std Package Width In | : | 5.75 |
| Std Package Width MM | : | 146.05 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983600095 |
| Standard Carton Volume Ft3 | : | 0.2695 |
| Standard Carton Weight Pounds | : | 1.7500 |
| Std Carton Height In | : | 4.45 |
| Std Carton Height MM | : | 113.03 |
| Std Carton Length In | : | 10.3 |
| Std Carton Length MM | : | 261.62 |
| Std Carton Width In | : | 10.3 |
| Std Carton Width MM | : | 261.62 |
| Std Ctn Qty | : | 500 |
| Min. Order UOM | : | Piece |
| Country of Origin 2Digit | : | US |
| RoHS Compliant | : | Compliant |
| EAN | : | 00074983600090 |
| REACH Status | : | False |
| California Pro65 Cancer | : | No |
| Buy American Compliant | : | Y |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | No |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 500 |
| Pallet Quantity | : | 80,000 |
| Pallet Volume | : | 43.121272 |
| Pallet Weight | : | 280.0000 |
