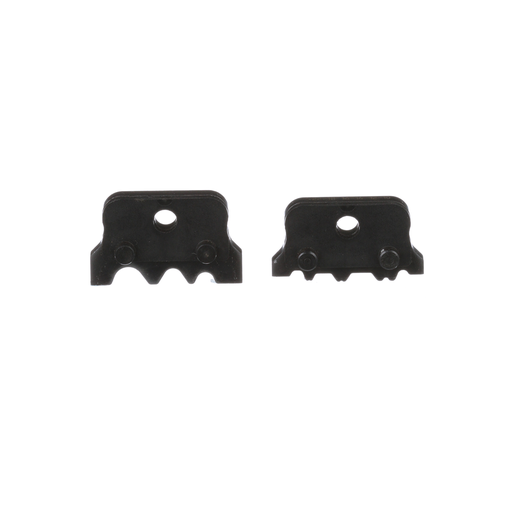

Pan-Term® CD-570 Die Insert, PK1
MFG #CD-570
$237.57 / E
Each
Each
Product Description:
The CD-570 Die Insert can be used with the UP14ZLW benchtop press, CT-2300/ST BlackFin battery-powered crimping tool, and CT-2500/L crimping tool with CT-2500CH crimp head to install Panduit terminals, disconnects, and splices.
HESCO Part Number
PANCD570
UPC
074983107988
Manufacturer Part Number
CD-570
Manufacturer
Panduit
Pan-Term® CD-570 Die Insert, PK1
MFG #CD-570
Product Description:
The CD-570 Die Insert can be used with the UP14ZLW benchtop press, CT-2300/ST BlackFin battery-powered crimping tool, and CT-2500/L crimping tool with CT-2500CH crimp head to install Panduit terminals, disconnects, and splices.
HESCO Part Number
PANCD570
UPC
074983107988
Manufacturer Part Number
CD-570
Manufacturer
Panduit
$237.57 / E
Each
Each
- Specifications
- Resources
Packaging Details
| UPC | : | 07498310798 |
| GTIN Package | : | 00074983107988 |
| Standard Package Volume Ft3 | : | 0.0038 |
| Standard Package Weight Pounds | : | 0.1000 |
| Std Package Height In | : | 1.6 |
| Std Package Height MM | : | 40.64 |
| Std Package Length In | : | 3.6 |
| Std Package Length MM | : | 91.44 |
| Std Package Width In | : | 2.1 |
| Std Package Width MM | : | 53.34 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| Min. Order UOM | : | Piece |
| Country of Origin 2Digit | : | DE |
| RoHS Compliant | : | RoHS directive is not applicable |
| EAN | : | 00074983107988 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1 |
| Pallet Quantity | : | 360 |
| Pallet Weight | : | 36.0000 |
Specifications | ||
| Product Segment | : | IEI |
| Product Type | : | Crimp Die |
| Compatible Connector | : | Select D, DR, P, & PS series non-insulated Disconnects, Terminals, and Splices |
| Sub Brand | : | Pan-Term® |
| Copper Conductor Size (AWG) | : | #22 - #10 |
| For Use With | : | CT-2300/ST, CT-2500/L (CT-2500CH), UP14ZLW |
| Crimp Profile | : | Indenter |
| Base Material | : | Steel |
| Finish/Coating | : | Black Oxide |
