GEE36F-C Slotted Grommet, Natural, PE, 0.04" Max Panel, 100' L, PK1
MFG #GEE36F-C
$55.29 / E
EACH
EACH
Product Description:

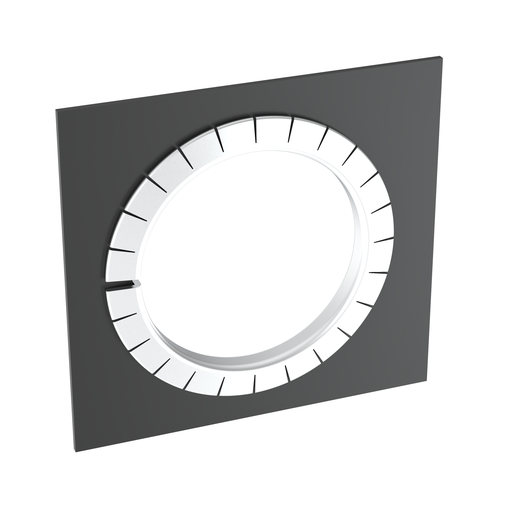

Slotted grommet edging, .036" thickness, polyethylene, natural.
HESCO Part Number
PANGEE36FC
UPC
074983601714
Manufacturer Part Number
GEE36F-C
Manufacturer
Panduit
GEE36F-C Slotted Grommet, Natural, PE, 0.04" Max Panel, 100' L, PK1
MFG #GEE36F-C
Product Description:
Slotted grommet edging, .036" thickness, polyethylene, natural.
HESCO Part Number
PANGEE36FC
UPC
074983601714
Manufacturer Part Number
GEE36F-C
Manufacturer
Panduit
$55.29 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- Standards Met: RoHS Compliant
Packaging Details
| UPC | : | 07498360171 |
| GTIN Package | : | 00074983601714 |
| Standard Package Volume Ft3 | : | 0.1339 |
| Standard Package Weight Pounds | : | 0.8000 |
| Std Package Height In | : | 2.65 |
| Std Package Height MM | : | 67.31 |
| Std Package Length In | : | 11.95 |
| Std Package Length MM | : | 303.53 |
| Std Package Width In | : | 11.9 |
| Std Package Width MM | : | 302.26 |
| Std. Pkg. UOM | : | Roll |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Roll |
| EAN | : | 00074983601714 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 171 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 136.8000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Overall Height (mm) | : | 3 |
| Product Type | : | Slotted Grommet Edging |
| Material | : | Polyethylene |
| Overall Width (In.) | : | 0.11 |
| Application | : | To Protect and Prevent Wires and Cables from Chafing Against Sharp Edges of Panel Walls and Knockouts. |
| Overall Height (In.) | : | 0.12 |
| Overall Width (mm) | : | 2.7 |
| Minimum Operating Temperature (°F) | : | -40 |
| Minimum Compatible Panel Thickness (mm) | : | 0.7 |
| Minimum Compatible Panel Thickness (In.) | : | 0.026 |
| Flammability Rating | : | UL94-HB |
| Minimum Operating Temperature (°C) | : | -40 |
| Maximum Operating Temperature (°F) | : | 122 |
| Maximum Compatible Panel Thickness (mm) | : | 0.9 |
| Resistance Properties | : | Abrasion-Resistant |
| Overall Length (m) | : | 30.48 |
| Maximum Compatible Panel Thickness (In.) | : | 0.036 |
| Overall Length (ft.) | : | 100 |
| Color | : | Natural |
| Maximum Operating Temperature (°C) | : | 50 |
