Grom Edg Slit,.13"x.14",.063",Ny,NAT,1rl
MFG #GEE55N-C
$139.24 / E
Each
Each
Product Description:

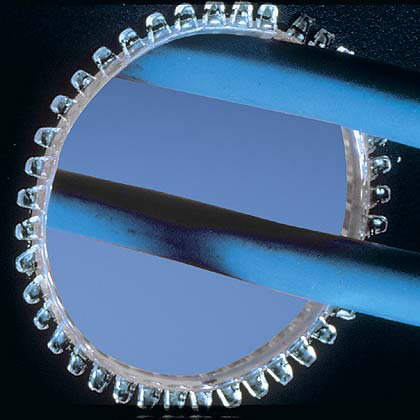

Slotted grommet edging, .063" thickness, nylon 6, natural.
HESCO Part Number
PANGEE55NC
UPC
074983602025
Manufacturer Part Number
GEE55N-C
Manufacturer
Panduit
Grom Edg Slit,.13"x.14",.063",Ny,NAT,1rl
MFG #GEE55N-C
$139.24 / E
Each
Each
Product Description:
Slotted grommet edging, .063" thickness, nylon 6, natural.
HESCO Part Number
PANGEE55NC
UPC
074983602025
Manufacturer Part Number
GEE55N-C
Manufacturer
Panduit
Grom Edg Slit,.13"x.14",.063",Ny,NAT,1rl
MFG #GEE55N-C
Product Description:
Slotted grommet edging, .063" thickness, nylon 6, natural.
HESCO Part Number
PANGEE55NC
UPC
074983602025
Manufacturer Part Number
GEE55N-C
Manufacturer
Panduit
$139.24 / E
Each
Each
- Specifications
- Resources
- Product
Specifications
| Product Segment | : | IEI |
| Product Type | : | Slotted Grommet Edging |
| Color | : | Natural |
| Flammability Rating | : | UL94V-2 |
| Material | : | Nylon 6.6 |
| Maximum Compatible Panel Thickness (mm) | : | 1.6 |
| Maximum Compatible Panel Thickness (In.) | : | 0.063 |
| Maximum Operating Temperature (°F) | : | 149 |
| Maximum Operating Temperature (°C) | : | 65 |
| Minimum Compatible Panel Thickness (mm) | : | 1.2 |
| Minimum Compatible Panel Thickness (In.) | : | 0.047 |
| Minimum Operating Temperature (°C) | : | -40 |
| Minimum Operating Temperature (°F) | : | -40 |
| Overall Height (mm) | : | 3.6 |
| Overall Height (In.) | : | 0.14 |
| Overall Width (In.) | : | 0.13 |
| Overall Width (mm) | : | 3.4 |
| Overall Length (m) | : | 30.5 |
| Overall Length (ft.) | : | 100 |
| Resistance Properties | : | Abrasion Protection |
| Standards Met | : | RoHS Compliant |
| Application | : | To Protect and Prevent Wires and Cables from Chafing Against Sharp Edges of Panel Walls and Knockouts. |
Packaging Details | ||
| UPC | : | 07498360202 |
| GTIN Package | : | 00074983602025 |
| Standard Package Volume Ft3 | : | 0.1254 |
| Standard Package Weight Pounds | : | 0.7000 |
| Std Package Height In | : | 3.05 |
| Std Package Height MM | : | 77.47 |
| Std Package Length In | : | 8.6 |
| Std Package Length MM | : | 218.44 |
| Std Package Width In | : | 8.55 |
| Std Package Width MM | : | 217.17 |
| Std. Pkg. UOM | : | Roll |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Roll |
| Country of Origin 2Digit | : | JP |
| RoHS Compliant | : | Compliant |
| EAN | : | 00074983602025 |
| REACH Status | : | False |
| Buy American Compliant | : | Y |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | No |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1 |
| Pallet Quantity | : | 0 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 0.0000 |
