GES144F-C Solid Grommet Edging
MFG #GES144F-C
$52.42 / E
Each
Each
Product Description:

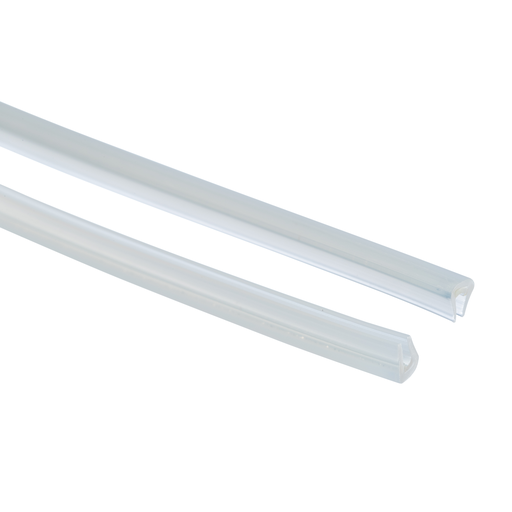

Solid grommet edging (use on straight edges only), .144" thickness, polyethylene, natural.
HESCO Part Number
PANGES144FC
UPC
074983601776
Manufacturer Part Number
GES144F-C
Manufacturer
Panduit
GES144F-C Solid Grommet Edging
MFG #GES144F-C
Product Description:
Solid grommet edging (use on straight edges only), .144" thickness, polyethylene, natural.
HESCO Part Number
PANGES144FC
UPC
074983601776
Manufacturer Part Number
GES144F-C
Manufacturer
Panduit
$52.42 / E
Each
Each
- Specifications
- Resources
Specifications
| Product Segment | : | IEI |
| Product Type | : | Solid Grommet Edging |
| Color | : | Natural |
| Flammability Rating | : | UL94-HB |
| Material | : | Polyethylene |
| Maximum Compatible Panel Thickness (mm) | : | 3.7 |
| Maximum Compatible Panel Thickness (In.) | : | 0.144 |
| Minimum Compatible Panel Thickness (mm) | : | 2.5 |
| Minimum Compatible Panel Thickness (In.) | : | 0.099 |
| Maximum Operating Temperature (°C) | : | 50 |
| Maximum Operating Temperature (°F) | : | 122 |
| Minimum Operating Temperature (°F) | : | -40 |
| Minimum Operating Temperature (°C) | : | -40 |
| Overall Length (ft.) | : | 100 |
| Overall Length (m) | : | 30.5 |
| Overall Width (mm) | : | 5.4 |
| Overall Width (In.) | : | 0.21 |
| Overall Height (In.) | : | 0.22 |
| Overall Height (mm) | : | 5.6 |
| Resistance Properties | : | Abrasion-Resistant |
| Standards Met | : | RoHS Compliant |

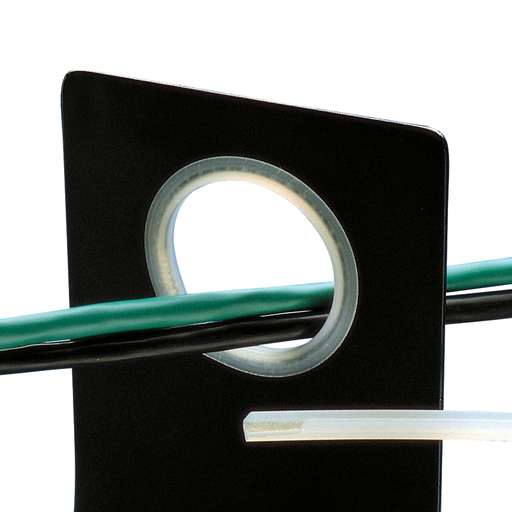

| Application | : | To Protect and Prevent Wires and Cables from Chafing Against Sharp Edges of Panel Walls and Knockouts. |
Packaging Details | ||
| UPC | : | 07498360177 |
| GTIN Package | : | 00074983601776 |
| Standard Package Volume Ft3 | : | 0.2201 |
| Standard Package Weight Pounds | : | 1.5500 |
| Std Package Height In | : | 2.25 |
| Std Package Height MM | : | 57.15 |
| Std Package Length In | : | 13 |
| Std Package Length MM | : | 330.2 |
| Std Package Width In | : | 13 |
| Std Package Width MM | : | 330.2 |
| Std. Pkg. UOM | : | Roll |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| Min. Order UOM | : | Roll |
| Country of Origin 2Digit | : | US |
| RoHS Compliant | : | Compliant |
| EAN | : | 00074983601776 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 56 |
| Pallet Weight | : | 86.8000 |
