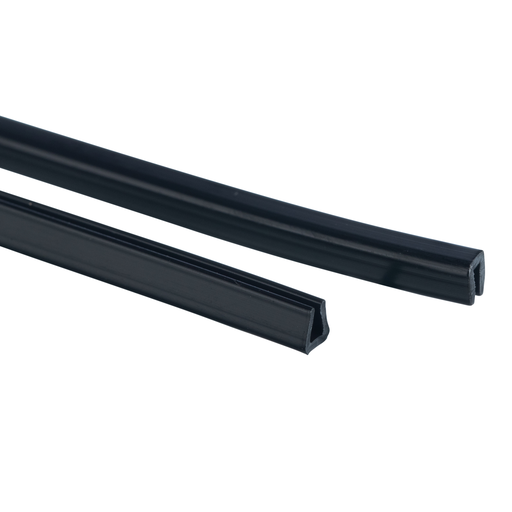

GES36F-C0 Solid Grommet Edging
MFG #GES36F-C0
$49.53 / E
EACH
EACH
Product Description:
Solid grommet edging (use on straight edges only), .036" thickness, weather resistant polyethylene, black.
HESCO Part Number
PANGES36FC0
UPC
074983601806
Manufacturer Part Number
GES36F-C0
Manufacturer
Panduit
GES36F-C0 Solid Grommet Edging
MFG #GES36F-C0
Product Description:
Solid grommet edging (use on straight edges only), .036" thickness, weather resistant polyethylene, black.
HESCO Part Number
PANGES36FC0
UPC
074983601806
Manufacturer Part Number
GES36F-C0
Manufacturer
Panduit
$49.53 / E
EACH
EACH
- Features
- Specifications
- Resources
- Product
- Standards Met: RoHS Compliant
Packaging Details
| UPC | : | 07498360180 |
| GTIN Package | : | 00074983601806 |
| Standard Package Volume Ft3 | : | 0.1339 |
| Standard Package Weight Pounds | : | 0.2500 |
| Std Package Height In | : | 2.5 |
| Std Package Height MM | : | 63.5 |
| Std Package Length In | : | 12 |
| Std Package Length MM | : | 304.8 |
| Std Package Width In | : | 11.85 |
| Std Package Width MM | : | 300.99 |
| Std. Pkg. UOM | : | Roll |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Roll |
| EAN | : | 00074983601806 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 171 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 42.7500 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Overall Height (In.) | : | 0.12 |
| Maximum Compatible Panel Thickness (In.) | : | 0.036 |
| Overall Width (mm) | : | 2.7 |
| Resistance Properties | : | Weather-Resistant |
| Material | : | Polyethylene |
| Product Type | : | Solid Grommet Edging |
| Minimum Operating Temperature (°F) | : | -40 |
| Overall Height (mm) | : | 3 |
| Overall Length (m) | : | 30.48 |
| Minimum Compatible Panel Thickness (mm) | : | 0.7 |
| Maximum Compatible Panel Thickness (mm) | : | 0.9 |
| Color | : | Black |
| Minimum Compatible Panel Thickness (In.) | : | 0.026 |
| Overall Width (In.) | : | 0.11 |
| Minimum Operating Temperature (°C) | : | -40 |
| Overall Length (ft.) | : | 100 |
| Application | : | To Protect and Prevent Wires and Cables from Chafing Against Sharp Edges of Panel Walls and Knockouts. |
| Maximum Operating Temperature (°F) | : | 122 |
| Maximum Operating Temperature (°C) | : | 50 |
| Flammability Rating | : | UL94-HB |
