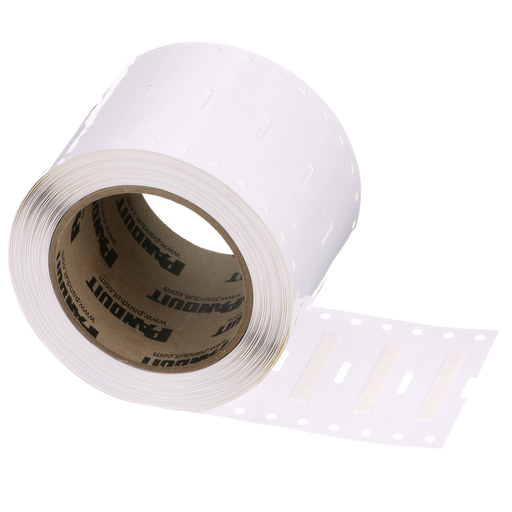

H050X025H1T Heatshrink, PO, White, Mil Grade, 2000 Lbls, 0.25"x0.5"
MFG #H050X025H1T
$399.63 / E
EACH
EACH
Product Description:
The H050X025H1T Military-Grade Polyolefin Heat-Shrink Label is a single-sided printable. It offers crisp, clear legends with superior readability for quick and easy label production. The heat-shrink sleeve is designed to provide a clear, reliable, and durable way to identify wires and cables. Designed for use with Panduit TDP printers. Shrink ratio 3:1. 0.5" x 0.25" (12.7 mm x 6.4 mm). Color White. 2000 labels per roll.
HESCO Part Number
PANH050X025H1T
UPC
074983518470
Manufacturer Part Number
H050X025H1T
Manufacturer
Panduit
H050X025H1T Heatshrink, PO, White, Mil Grade, 2000 Lbls, 0.25"x0.5"
MFG #H050X025H1T
Product Description:
The H050X025H1T Military-Grade Polyolefin Heat-Shrink Label is a single-sided printable. It offers crisp, clear legends with superior readability for quick and easy label production. The heat-shrink sleeve is designed to provide a clear, reliable, and durable way to identify wires and cables. Designed for use with Panduit TDP printers. Shrink ratio 3:1. 0.5" x 0.25" (12.7 mm x 6.4 mm). Color White. 2000 labels per roll.
HESCO Part Number
PANH050X025H1T
UPC
074983518470
Manufacturer Part Number
H050X025H1T
Manufacturer
Panduit
$399.63 / E
EACH
EACH
- Features
- Specifications
- Resources
- Standards Met: Meets UL Standard 224 for flammability and AMS-DTL-23053/5C (Class 1 and Class 3). Meets SAE-AS81531, MIL-STD-883F Method 2015.13, Solutions A, B, and D, and D202F, and MIL-STD-202G Method 215K, Solutions A, C, and D when printed with resin or hybrid thermal transfer ribbons. RoHS Compliant.
Packaging Details
| UPC | : | 07498351847 |
| GTIN Package | : | 00074983518470 |
| Standard Package Volume Ft3 | : | 0.1239 |
| Standard Package Weight Pounds | : | 2.3500 |
| Std Package Height In | : | 5.1 |
| Std Package Height MM | : | 129.54 |
| Std Package Length In | : | 6.55 |
| Std Package Length MM | : | 166.37 |
| Std Package Width In | : | 6.35 |
| Std Package Width MM | : | 161.29 |
| Std. Pkg. UOM | : | Roll |
| UOM EA PK | : | EA |
| Std. Pkg. Qty. | : | 1 |
| Standard Carton Volume Ft3 | : | 0.0000 |
| Standard Carton Weight Pounds | : | 0.0000 |
| Std Ctn Qty | : | 0 |
| Min. Order UOM | : | Roll |
| EAN | : | 00074983518470 |
| REACH Status | : | N |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1.0000 |
| Pallet Quantity | : | 336 |
| Pallet Volume | : | 0.000000 |
| Pallet Weight | : | 789.6000 |
| RoHS Compliant | : | Compliant |
Specifications | ||
| Country of Origin | : | United States |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Resistance Properties | : | Military Grade |
| Minimum Operating Temperature (°F) | : | -67 |
| Flammability Rating | : | VW-1 |
| Maximum Cable Diameter (mm) | : | 3.3 |
| Minimum Cable Diameter (In.) | : | 0.4 |
| Number of Labels per Row | : | 4 |
| Overall Height (mm) | : | 6.4 |
| Maximum Cable Diameter (In.) | : | 0.13 |
| Overall Width (mm) | : | 12.7 |
| Maximum Operating Temperature (°F) | : | 275 |
| Color | : | White |
| Maximum Operating Temperature (°C) | : | 135 |
| Material | : | Polyolefin |
| Number of Sides | : | 1 |
| Diameter (mm) | : | 3.3 |
| Overall Height (In.) | : | 0.25 |
| Label Application | : | Cable & Wire Marking |
| Minimum Cable Diameter (mm) | : | 1 |
| Number of Labels | : | 2000 |
| Overall Width (In.) | : | 0.5 |
| Product Type | : | Heat Shrink Label |
| Minimum Operating Temperature (°C) | : | -55 |
| Diameter (In.) | : | 0.13 |
| Label Dimensions (In.) | : | 0.5W x 0.25H |
| Compatible Wire Gauge | : | 22-18 AWG |
