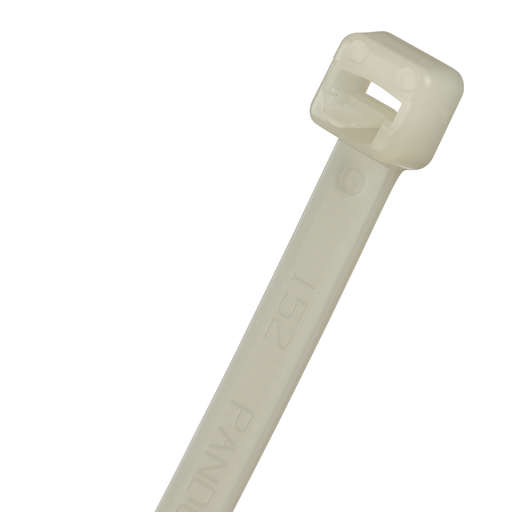

Pan-Ty® PRT4S-C Releasable Cable Tie, PA6.6, 14.5"L, 50lb, PK100
MFG #PRT4S-C
$0.93 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
Product Description:
Panduit PRT4S-C Releasable Cable Ties have a release tab that permits easy release where changes are anticipated during development, production or servicing in the field. Standard cross section, 14.5” (368mm) length. For Indoor use, made of Nylon 6.6, are natural in color and come in packages of 100.
HESCO Part Number
PANPRT4SC
UPC
074983548910
Manufacturer Part Number
PRT4S-C
Manufacturer
Panduit
Pan-Ty® PRT4S-C Releasable Cable Tie, PA6.6, 14.5"L, 50lb, PK100
MFG #PRT4S-C
Product Description:
Panduit PRT4S-C Releasable Cable Ties have a release tab that permits easy release where changes are anticipated during development, production or servicing in the field. Standard cross section, 14.5” (368mm) length. For Indoor use, made of Nylon 6.6, are natural in color and come in packages of 100.
HESCO Part Number
PANPRT4SC
UPC
074983548910
Manufacturer Part Number
PRT4S-C
Manufacturer
Panduit
$0.93 / E
(Must order in increments of 1000/E)
(Must order in increments of 1000/E)
- Features
- Specifications
- Resources
- Product
- No
- Standards Met: UL 62275 Compliant (Type 2S, 21S), UL Listed (File #E56854), UL Recognized (File #E56854), CE, RoHS Compliant
Specifications
| Country of Origin | : | Malaysia |
| Any Reason Not to Sell | : | N |
| Product Segment | : | IEI |
| Minimum Operating Temperature (°F) | : | -76 |
| Minimum Bundle Diameter (mm) | : | 1.5 |
| Overall Length (In.) | : | 14.5 |
| Minimum Installation Temperature (°F) | : | -4 |
| Color | : | Natural |
| Maximum Operating Temperature (°C) | : | 85 |
| Minimum Operating Temperature (°C) | : | -60 |
| Material | : | Nylon 6.6 |
| Minimum Loop Tensile Strength (N) | : | 222 |
| Body Width (In.) | : | 0.19 |
| Overall Length (mm) | : | 368 |
| Minimum Bundle Diameter (In.) | : | 0.06 |
| Maximum Bundle Diameter (mm) | : | 102 |
| Minimum Installation Temperature (°C) | : | -20 |
| Minimum Loop Tensile Strength (lb) | : | 50 |
| Body Width (mm) | : | 4.8 |
| Product Type | : | Premium Cable Tie |
| For Use With | : | Hand Install Only |
| Environment | : | Indoor |
| Maximum Bundle Diameter (In.) | : | 4 |
| Maximum Operating Temperature (°F) | : | 185 |
| Material Description | : | Nylon 6.6 |
Packaging Details | ||
| UPC | : | 07498354891 |
| GTIN Package | : | 00074983548910 |
| Standard Package Volume Ft3 | : | 0.0556 |
| Standard Package Weight Pounds | : | 0.7000 |
| Std Package Height In | : | 1.55 |
| Std Package Height MM | : | 39.37 |
| Std Package Length In | : | 17.4 |
| Std Package Length MM | : | 441.96 |
| Std Package Width In | : | 5.7 |
| Std Package Width MM | : | 144.78 |
| Std. Pkg. UOM | : | Piece |
| UOM EA PK | : | PK |
| Std. Pkg. Qty. | : | 100 |
| GTIN Carton | : | 50074983548915 |
| Standard Carton Volume Ft3 | : | 0.5563 |
| Standard Carton Weight Pounds | : | 7.0000 |
| Std Carton Height In | : | 5.95 |
| Std Carton Height MM | : | 151.13 |
| Std Carton Length In | : | 16.75 |
| Std Carton Length MM | : | 425.45 |
| Std Carton Width In | : | 8.85 |
| Std Carton Width MM | : | 224.79 |
| Std Ctn Qty | : | 1000 |
| Min. Order UOM | : | Piece |
| EAN | : | 00074983548910 |
| REACH Status | : | N |
| California Pro65 Cancer | : | No |
| ARRA Compliant | : | Y |
| Mercury Content Indicator | : | N |
| Lead Content Indicator | : | N |
| Restricted Use of Hazardous Substances | : | N |
| Hazardous Material Flag | : | N |
| Min Order Qty | : | 1,000.0000 |
| Pallet Quantity | : | 96,000 |
| Pallet Volume | : | 53.400842 |
| Pallet Weight | : | 672.0000 |
| RoHS Compliant | : | Compliant |
