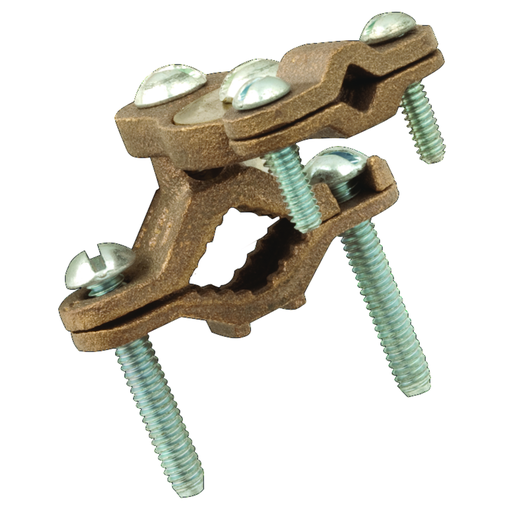

0.5 in to 1 in Ground Clamp for Bare Armored Ground Wires, Bronze Alloy
MFG #2507
$103.01Â /Â E
Each
Each
Product Description:
0.5 in to 1 in Ground Clamp for Bare Armored Ground Wires, Bronze Alloy
HESCO Part Number
RAC2507
UPC
050169025079
Manufacturer Part Number
2507
Manufacturer
Raco
0.5 in to 1 in Ground Clamp for Bare Armored Ground Wires, Bronze Alloy
MFG #2507
Product Description:
0.5 in to 1 in Ground Clamp for Bare Armored Ground Wires, Bronze Alloy
HESCO Part Number
RAC2507
UPC
050169025079
Manufacturer Part Number
2507
Manufacturer
Raco
$103.01Â /Â E
Each
Each
- Features
- Specifications
- Resources
- Bronze cast construction assures ground path continuity and provides corrosion resistance
- Additional sizes available
Specifications
| Country of Origin | :Â Â | IN |
| Dimensions | :Â Â | 2.375 in x 2.25 in x 2.75 in |
| Width | :Â Â | 2.281 in |
| Each - Width | :Â Â | 2.281 in |
| Height | :Â Â | 2.75 in |
| Industry Standard(s) | :Â Â | UL 514B |
| Application | :Â Â | For use with grounding wire or conduit to water pipes or ground rods |
| Length | :Â Â | 2.375 in |
| Standard | :Â Â | UL 514B |
| Conductor Range | :Â Â | #6 AWG to #10 AWG |
| Weight | :Â Â | 0.355 lb. |
| Class Code | :Â Â | D04 |
| Description - Invoice | :Â Â | GROUND CLAMP 1/2 IN - 1 IN PIPE 6-10AWG |
| Freight Class Code | :Â Â | 06202000 |
| Harmonization Code | :Â Â | 7419805050 |
| Image Actual Or Representative | :Â Â | R |
| Sub Class Code | :Â Â | D04D050 |
| Material | :Â Â | Bronze Alloy |
| Base Unit of Measure | :Â Â | EA |
| BOX SIZE | :Â Â | 6.500x8.750x8.750 (in) |
| Carton - Gross Weight per Pack | :Â Â | 8.875 lb. |
| Carton - Number of Sub Packs | :Â Â | 25 |
| Carton - Pack Description | :Â Â | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | :Â Â | 00050169025079 |
| Carton - Total Units | :Â Â | 25 EA |
| Pallet - GTIN - Package | :Â Â | 70050169025078 |
| Pallet - SCC-14 Next Lower Level Sub Pack | :Â Â | 50050169025074 |
| Pallet - Total Units | :Â Â | 3000 EA |
| Pallet Height | :Â Â | 44.500 in |
| Pallet Length | :Â Â | 48.000 in |
| Pallet Weight | :Â Â | 1103.640 lb. |
| Pallet Width | :Â Â | 42.000 in |
Certifications | ||
| Certified Listed | :Â Â | UL Listed |
- Bronze cast construction assures ground path continuity and provides corrosion resistance
- Additional sizes available
Specifications
Country of Origin :Â Â IN Dimensions :Â Â 2.375 in x 2.25 in x 2.75 in Width :Â Â 2.281 in Each - Width :Â Â 2.281 in Height :Â Â 2.75 in Industry Standard(s) :Â Â UL 514B Application :Â Â For use with grounding wire or conduit to water pipes or ground rods Length :Â Â 2.375 in Standard :Â Â UL 514B Conductor Range :Â Â #6 AWG to #10 AWG Weight :Â Â 0.355 lb. Class Code :Â Â D04 Description - Invoice :Â Â GROUND CLAMP 1/2 IN - 1 IN PIPE 6-10AWG Freight Class Code :Â Â 06202000 Harmonization Code :Â Â 7419805050 Image Actual Or Representative :Â Â R Sub Class Code :Â Â D04D050 Material :Â Â Bronze Alloy Base Unit of Measure :Â Â EA BOX SIZE :Â Â 6.500x8.750x8.750 (in) Carton - Gross Weight per Pack :Â Â 8.875 lb. Carton - Number of Sub Packs :Â Â 25 Carton - Pack Description :Â Â Carton Carton - SCC-14 Next Lower Level Sub Pack :Â Â 00050169025079 Carton - Total Units :Â Â 25 EA Pallet - GTIN - Package :Â Â 70050169025078 Pallet - SCC-14 Next Lower Level Sub Pack :Â Â 50050169025074 Pallet - Total Units :Â Â 3000 EA Pallet Height :Â Â 44.500 in Pallet Length :Â Â 48.000 in Pallet Weight :Â Â 1103.640 lb. Pallet Width :Â Â 42.000 in Certifications
Certified Listed :Â Â UL Listed - Downloads
