Mogul Pulling Elbows, Covers & Gaskets
MFG #MALB-5
$337.20Â /Â E
Each
Each
Product Description:

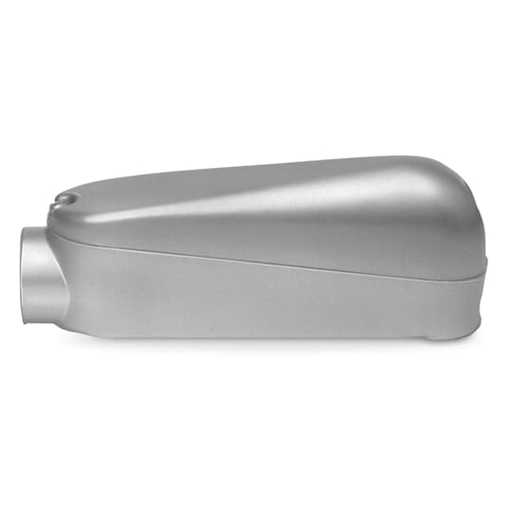

1-1/2 inch Threaded Die Cast Aluminum Mogul Conduit Body with Cover and Gasket. For Use with Rigid/IMC Conduit.
HESCO Part Number
REDMALB5
UPC
04226939632
Manufacturer Part Number
MALB-5
Manufacturer
Thomas & Betts
Mogul Pulling Elbows, Covers & Gaskets
MFG #MALB-5
Product Description:
1-1/2 inch Threaded Die Cast Aluminum Mogul Conduit Body with Cover and Gasket. For Use with Rigid/IMC Conduit.
HESCO Part Number
REDMALB5
UPC
04226939632
Manufacturer Part Number
MALB-5
Manufacturer
Thomas & Betts
$337.20Â /Â E
Each
Each
- Features
- Specifications
- Resources
- Less than .004 copper content.
- For use with rigid/IMC conduit
- Rain tight junction for bringing electrical service into a location.
- CSA
- UL
- Deep slotted stainless steel cover screws for faster installation.
- Clear UL, CSA and cubic content markings speed approval by inspectors.
- Dome-style cover permits easy wire pulling.
- Precision NPT threaded hubs enable trouble-free field installation for rigid and IMC conduit.
- Precision cast and machined surfaces permit safer wire pulling.
- Copper-free aluminum provides increased corrosion resistance.
- Clean cover edges provide good gasket sealing.
Dimension Information
| C (inches) | :Â Â | 2 3/4 |
| F (inches) | :Â Â | 13 |
| D (inches) | :Â Â | 4 |
| B (inches) | :Â Â | 14 1/4 |
| A (inches) | :Â Â | 14 17/32 |
| E (inches) | :Â Â | 21 3/16 |
| G (inches) | :Â Â | 5 7/32 |
Certifications | ||
| RoHS Compliance | :Â Â | Yes |
Packaging | ||
| T&B Weight Per UOM | :Â Â | 4.25 lbs. Each |
| Package Width | :Â Â | 5.63 |
| T&B Sold in UOM | :Â Â | Each |
| Package Height | :Â Â | 4.25 |
| Outer Package | :Â Â | 1 |
| Package Length | :Â Â | 14.56 |
General | ||
| Material | :Â Â | Die Cast Aluminum |
| Trade Size (inches) | :Â Â | 1-1/2 |
| Volume (cu.in.) | :Â Â | 128 |
Accessories & Components | ||
| Replacement Gasket-Composition | :Â Â | MGKV-5 |
| Replacement Cover-Die Cast | :Â Â | MALB-56CV |
- Less than .004 copper content.
- For use with rigid/IMC conduit
- Rain tight junction for bringing electrical service into a location.
- CSA
- UL
- Deep slotted stainless steel cover screws for faster installation.
- Clear UL, CSA and cubic content markings speed approval by inspectors.
- Dome-style cover permits easy wire pulling.
- Precision NPT threaded hubs enable trouble-free field installation for rigid and IMC conduit.
- Precision cast and machined surfaces permit safer wire pulling.
- Copper-free aluminum provides increased corrosion resistance.
- Clean cover edges provide good gasket sealing.
Dimension Information
C (inches) :Â Â 2 3/4 F (inches) :Â Â 13 D (inches) :Â Â 4 B (inches) :Â Â 14 1/4 A (inches) :Â Â 14 17/32 E (inches) :Â Â 21 3/16 G (inches) :Â Â 5 7/32 Certifications
RoHS Compliance :Â Â Yes Packaging
T&B Weight Per UOM :Â Â 4.25 lbs. Each Package Width :Â Â 5.63 T&B Sold in UOM :Â Â Each Package Height :Â Â 4.25 Outer Package :Â Â 1 Package Length :Â Â 14.56 General
Material :Â Â Die Cast Aluminum Trade Size (inches) :Â Â 1-1/2 Volume (cu.in.) :Â Â 128 Accessories & Components
Replacement Gasket-Composition :Â Â MGKV-5 Replacement Cover-Die Cast :Â Â MALB-56CV - Certifications
RoHS Compliance
