GRND PLT CU POLE 10-2/0 AL BRZALLOY
MFG #PBGW
$103.64Â /Â E
Each
Each
Product Description:

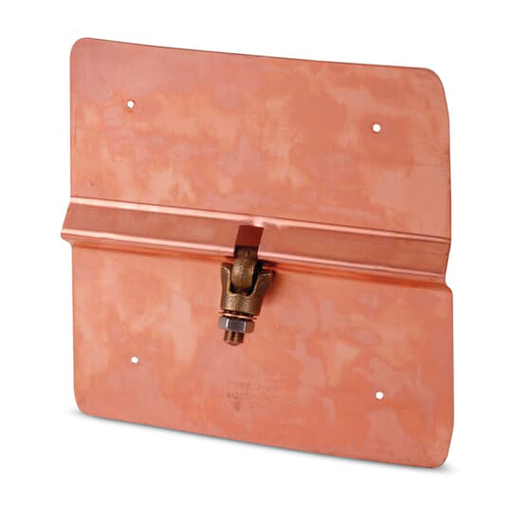

Ground Plate, Type PB - Copper Pole for Wire Range 10 Solid - 2/0 Stranded, Connector is Eye-Bolt type, cast of corrosion resistant Aluminum Bronze Alloy, with Silicon Bronze nut and lock washer.
HESCO Part Number
BLBPBGW
UPC
783786333318
Manufacturer Part Number
PBGW
Manufacturer
Thomas & Betts
GRND PLT CU POLE 10-2/0 AL BRZALLOY
MFG #PBGW
$103.64Â /Â E
Each
Each
Product Description:
Ground Plate, Type PB - Copper Pole for Wire Range 10 Solid - 2/0 Stranded, Connector is Eye-Bolt type, cast of corrosion resistant Aluminum Bronze Alloy, with Silicon Bronze nut and lock washer.
HESCO Part Number
BLBPBGW
UPC
783786333318
Manufacturer Part Number
PBGW
Manufacturer
Thomas & Betts
GRND PLT CU POLE 10-2/0 AL BRZALLOY
MFG #PBGW
Product Description:
Ground Plate, Type PB - Copper Pole for Wire Range 10 Solid - 2/0 Stranded, Connector is Eye-Bolt type, cast of corrosion resistant Aluminum Bronze Alloy, with Silicon Bronze nut and lock washer.
HESCO Part Number
BLBPBGW
UPC
783786333318
Manufacturer Part Number
PBGW
Manufacturer
Thomas & Betts
$103.64Â /Â E
Each
Each
- Specifications
Container Information
Package Level 1 Units | :Â Â | 50 piece |
Package Level 1 Width | :Â Â | 26 in660 mm |
Package Level 1 Height | :Â Â | 7.8 in198 mm |
Package Level 1 Depth / Length | :Â Â | 11.8 in300 mm |
Additional Information | ||
Application | :Â Â | Installed on Butt end of utility poles to provide an economical, low resistance neutral ground |
Brand / Label | :Â Â | Blackburn |
Connection Type | :Â Â | Mechanical |
Effective Date | :Â Â | 19991027 |
Insulation Material | :Â Â | None |
Material of Conductor | :Â Â | Copper |
Number of Batteries | :Â Â | 0 |
Product Name | :Â Â | BKB-OVERHEAD SPLICE & TAP CONN |
Product Type | :Â Â | Copper Pole Ground Plate |
Size | :Â Â | 7 in X 7-5/8 in |
Special Functions | :Â Â | Installed cost considerably less than butt-wrapped poles. Plate portion fabricated of .025 inch pure copper. Connector is eye-bolt type, cast of corrosion resistant aluminum bronze alloy, with solicon bronze nut and lock washer. |
Type of Indicator | :Â Â | None |
Classifications | ||
WEEE Category | :Â Â | Product Not in WEEE Scope |
IDEA Granular Category Code (IGCC) | :Â Â | 4909 >> Grounding devices or assemblies |
Container Information
Package Level 1 Units :Â Â 50 piece Package Level 1 Width :Â Â 26 in660 mm Package Level 1 Height :Â Â 7.8 in198 mm Package Level 1 Depth / Length :Â Â 11.8 in300 mm Additional Information
Application :Â Â Installed on Butt end of utility poles to provide an economical, low resistance neutral ground Brand / Label :Â Â Blackburn Connection Type :Â Â Mechanical Effective Date :Â Â 19991027 Insulation Material :Â Â None Material of Conductor :Â Â Copper Number of Batteries :Â Â 0 Product Name :Â Â BKB-OVERHEAD SPLICE & TAP CONN Product Type :Â Â Copper Pole Ground Plate Size :Â Â 7 in X 7-5/8 in Special Functions :Â Â Installed cost considerably less than butt-wrapped poles. Plate portion fabricated of .025 inch pure copper. Connector is eye-bolt type, cast of corrosion resistant aluminum bronze alloy, with solicon bronze nut and lock washer. Type of Indicator :Â Â None Classifications
WEEE Category :Â Â Product Not in WEEE Scope IDEA Granular Category Code (IGCC) :Â Â 4909 >> Grounding devices or assemblies
