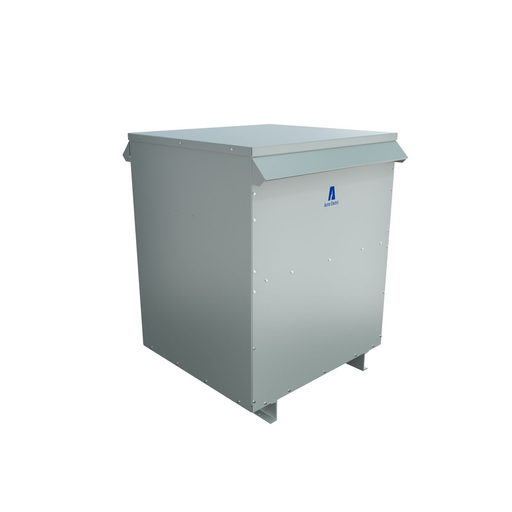

Drive Isolation Transformer - Three Phase, 460Δ - 460Y/266V, 880kVA
MFG #DTGB-00880-4S
$73,955.63 / E
EACH
EACH
Product Description:
Drive Isolation Transformer - Three Phase, 460Δ - 460Y/266V, 880kVA
HESCO Part Number
ACMDTGB008804S
UPC
047503000755
Manufacturer Part Number
DTGB-00880-4S
Manufacturer
Acme
Drive Isolation Transformer - Three Phase, 460Δ - 460Y/266V, 880kVA
MFG #DTGB-00880-4S
Product Description:
Drive Isolation Transformer - Three Phase, 460Δ - 460Y/266V, 880kVA
HESCO Part Number
ACMDTGB008804S
UPC
047503000755
Manufacturer Part Number
DTGB-00880-4S
Manufacturer
Acme
$73,955.63 / E
EACH
EACH
- Features
- Specifications
- Resources
- Copper terminations for trouble free operation
- Wound core and strip winding for low losses
- Electrostatic shield for enhanced protection
- Full capacity taps on all units
- Optional weather shiled - WSA6
Specifications
| ANFC Taps | : | 2 |
| BNFC Taps | : | 2 |
| Country of Origin | : | MX |
| CSA Standard | : | C22.2 No. 47 |
| Dimensions | : | 41.49 in x 54 in x 62.84 in |
| Each - Width | : | 54 in |
| kVA | : | 880.0 |
| Max Temperature Rise | : | 150 Degrees Celsius |
| Product Category | : | Drive Isolation Transformer |
| Product Type | : | Drive Isolation Transformer |
| Secondary Voltage | : | 460Y/266 V |
| Taps % Steps | : | 2.5% |
| Frequency Rating | : | 60 Hz |
| Height | : | 62.84 in |
| Length | : | 41.49 in |
| Mounting | : | Floor |
| Primary Voltage | : | 460D V |
| Width | : | 54 in |
| UL Insulation Class | : | 220°C |
| UL Standard | : | UL 1561 |
| Weight | : | 3816 lb. |
| Material type | : | ZFIN |
| Mounting Type | : | Floor |
| Nema Rating | : | NEMA 2 |
| ARRA Compliant | : | Contact Manufacturer |
| Class Code | : | D10 |
| Freight Class Code | : | 06342001 |
| Harmonization Code | : | 8504340000 |
| Image Actual Or Representative | : | R |
| Stock Indicator | : | S - Shelf Stock |
| Sub Class Code | : | D10D130 |
| Electrostatic Shield | : | Shielded |
| Winding Material | : | AL |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 24.000x15.000x22.000 (in) |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 00047503000755 |
| Pallet Height | : | 29.000 in |
| Pallet Length | : | 48.000 in |
| Pallet Weight | : | 1000.000 lb. |
| Pallet Width | : | 40.000 in |
- Copper terminations for trouble free operation
- Wound core and strip winding for low losses
- Electrostatic shield for enhanced protection
- Full capacity taps on all units
- Optional weather shiled - WSA6
Specifications
ANFC Taps : 2 BNFC Taps : 2 Country of Origin : MX CSA Standard : C22.2 No. 47 Dimensions : 41.49 in x 54 in x 62.84 in Each - Width : 54 in kVA : 880.0 Max Temperature Rise : 150 Degrees Celsius Product Category : Drive Isolation Transformer Product Type : Drive Isolation Transformer Secondary Voltage : 460Y/266 V Taps % Steps : 2.5% Frequency Rating : 60 Hz Height : 62.84 in Length : 41.49 in Mounting : Floor Primary Voltage : 460D V Width : 54 in UL Insulation Class : 220°C UL Standard : UL 1561 Weight : 3816 lb. Material type : ZFIN Mounting Type : Floor Nema Rating : NEMA 2 ARRA Compliant : Contact Manufacturer Class Code : D10 Freight Class Code : 06342001 Harmonization Code : 8504340000 Image Actual Or Representative : R Stock Indicator : S - Shelf Stock Sub Class Code : D10D130 Electrostatic Shield : Shielded Winding Material : AL Base Unit of Measure : EA BOX SIZE : 24.000x15.000x22.000 (in) Carton - SCC-14 Next Lower Level Sub Pack : 00047503000755 Pallet Height : 29.000 in Pallet Length : 48.000 in Pallet Weight : 1000.000 lb. Pallet Width : 40.000 in - Downloads
Spec SheetMSDSBrochure Asset ReferenceCatalog Full Asset ReferenceCustomer Notices Asset ReferenceTerms and Conditions Asset ReferenceAcme_DTGB008804S_TECHNICAL_DRAWINGS.pdf
