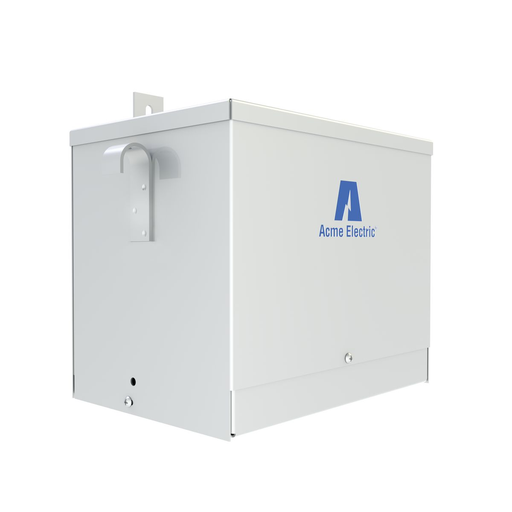

Drive Isolation Transformer - Three Phase, 575Δ - 230Y/133V, 7.5kVA
MFG #DTHA-7-2S
$4,008.93 / E
EACH
EACH
Product Description:
Drive Isolation Transformer - Three Phase, 575Δ - 230Y/133V, 7.5kVA
HESCO Part Number
ACMDTHA72S
UPC
004750369561
Manufacturer Part Number
DTHA-7-2S
Manufacturer
Acme
Drive Isolation Transformer - Three Phase, 575Δ - 230Y/133V, 7.5kVA
MFG #DTHA-7-2S
Product Description:
Drive Isolation Transformer - Three Phase, 575Δ - 230Y/133V, 7.5kVA
HESCO Part Number
ACMDTHA72S
UPC
004750369561
Manufacturer Part Number
DTHA-7-2S
Manufacturer
Acme
$4,008.93 / E
EACH
EACH
- Features
- Specifications
- Resources
- Copper terminations for trouble free operation
- Wound Core and Strip Winding for Low Losses
- Electrostatic shield for enhanced protection
- Full capacity taps on all units
Specifications
| ANFC Taps | : | 1 |
| BNFC Taps | : | 1 |
| Buy American Compliant | : | Contact Manufacturer |
| Country of Origin | : | MX |
| CSA Standard | : | C22.2 No. 47 |
| Dimensions | : | 7.37 in x 19.25 in x 15.21 in |
| Each - Width | : | 19.25 in |
| kVA | : | 7.5 |
| Max Temperature Rise | : | 115 Degrees Celsius |
| Product Category | : | Drive Isolation Transformer |
| Product Type | : | Drive Isolation Transformer |
| Secondary Voltage | : | 230Y/133 V |
| Taps % Steps | : | 5% |
| Frequency Rating | : | 60 Hz |
| Height | : | 15.21 in |
| Length | : | 7.37 in |
| Mounting | : | Wall |
| Primary Voltage | : | 575D V |
| Width | : | 19.25 in |
| UL Insulation Class | : | 180°C |
| UL Standard | : | UL 506 |
| Weight | : | 180 lb. |
| Material type | : | ZFIN |
| Mounting Type | : | Wall |
| Nema Rating | : | NEMA 3R |
| ARRA Compliant | : | Contact Manufacturer |
| Class Code | : | D10 |
| Freight Class Code | : | 06342001 |
| Harmonization Code | : | 8504320000 |
| Image Actual Or Representative | : | A |
| Stock Indicator | : | S - Shelf Stock |
| Sub Class Code | : | D10D130 |
| Electrostatic Shield | : | Shielded |
| Winding Material | : | AL |
| Base Unit of Measure | : | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 00004750369561 |
- Copper terminations for trouble free operation
- Wound Core and Strip Winding for Low Losses
- Electrostatic shield for enhanced protection
- Full capacity taps on all units
Specifications
ANFC Taps : 1 BNFC Taps : 1 Buy American Compliant : Contact Manufacturer Country of Origin : MX CSA Standard : C22.2 No. 47 Dimensions : 7.37 in x 19.25 in x 15.21 in Each - Width : 19.25 in kVA : 7.5 Max Temperature Rise : 115 Degrees Celsius Product Category : Drive Isolation Transformer Product Type : Drive Isolation Transformer Secondary Voltage : 230Y/133 V Taps % Steps : 5% Frequency Rating : 60 Hz Height : 15.21 in Length : 7.37 in Mounting : Wall Primary Voltage : 575D V Width : 19.25 in UL Insulation Class : 180°C UL Standard : UL 506 Weight : 180 lb. Material type : ZFIN Mounting Type : Wall Nema Rating : NEMA 3R ARRA Compliant : Contact Manufacturer Class Code : D10 Freight Class Code : 06342001 Harmonization Code : 8504320000 Image Actual Or Representative : A Stock Indicator : S - Shelf Stock Sub Class Code : D10D130 Electrostatic Shield : Shielded Winding Material : AL Base Unit of Measure : EA Carton - SCC-14 Next Lower Level Sub Pack : 00004750369561 - Downloads
