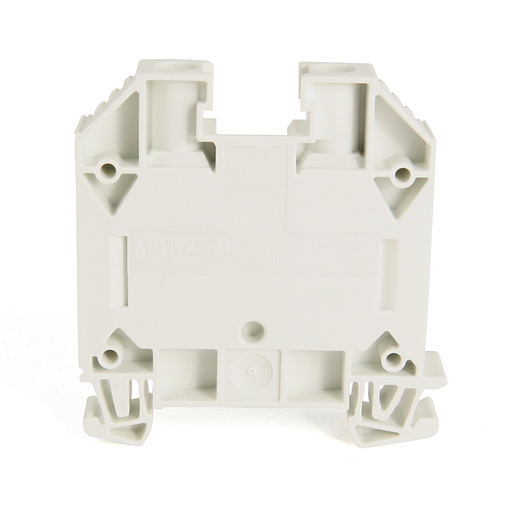

IEC TERM BLCK, 12 X 56 X 60MM, SCREW, 1492-J16
MFG #1492-J16
$5.71Â /Â E
EACH
EACH
Product Description:
Terminal Block, Screw Connection, Feed Through, 12 x 60 x 56mm (0.472 x 2.36 x 2.2 in), 1 Pole, Gray, Pkg. Qty. of 50, VOLTAGE RATING UR 600V AC/DC, CSA 600V AC/DC, IEC 1000V AC/DC, ATEX 690V AC/DC, MAXIMUM CURRENT RATING UR 85A, CSA 85A, IE
HESCO Part Number
AB1492J16
UPC
662073058281
Manufacturer Part Number
1492-J16
Manufacturer
Allen-Bradley
IEC TERM BLCK, 12 X 56 X 60MM, SCREW, 1492-J16
MFG #1492-J16
Product Description:
Terminal Block, Screw Connection, Feed Through, 12 x 60 x 56mm (0.472 x 2.36 x 2.2 in), 1 Pole, Gray, Pkg. Qty. of 50, VOLTAGE RATING UR 600V AC/DC, CSA 600V AC/DC, IEC 1000V AC/DC, ATEX 690V AC/DC, MAXIMUM CURRENT RATING UR 85A, CSA 85A, IE
HESCO Part Number
AB1492J16
UPC
662073058281
Manufacturer Part Number
1492-J16
Manufacturer
Allen-Bradley
$5.71Â /Â E
EACH
EACH
- Specifications
- Resources
Specifications
| Amperage Rating | :Â Â | 66/76/85 |
| Brand Name | :Â Â | Allen-Bradley |
| Color | :Â Â | Gray |
| Special Features | :Â Â | Screw Connection, Feed Through, 1 Pole, Gray, Pkg. Qty. of 50 |
| Standard | :Â Â | CCC, CE, CSA, CUL, KC, MARINE, UL |
| Sub Brand | :Â Â | 1492 |
| Terminal Size | :Â Â | 12 x 60 x 56mm (0.472 x 2.36 x 2.2 in) |
| Type | :Â Â | IEC Screw Terminal Block |
| Voltage Rating | :Â Â | 600/690/1k//600/690/1k |
| Wire Size | :  | UR - #18...4 AWG, CSA - #18...4 AWG, IEC - 16mm², ATEX - #16...6 AWG |
Specifications
Amperage Rating :  66/76/85 Brand Name :  Allen-Bradley Color :  Gray Special Features :  Screw Connection, Feed Through, 1 Pole, Gray, Pkg. Qty. of 50 Standard :  CCC, CE, CSA, CUL, KC, MARINE, UL Sub Brand :  1492 Terminal Size :  12 x 60 x 56mm (0.472 x 2.36 x 2.2 in) Type :  IEC Screw Terminal Block Voltage Rating :  600/690/1k//600/690/1k Wire Size :  UR - #18...4 AWG, CSA - #18...4 AWG, IEC - 16mm², ATEX - #16...6 AWG - Downloads
Spec Sheet
