Allen-Bradley

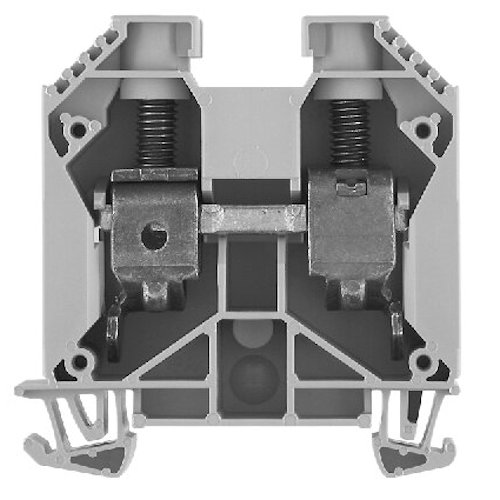

IEC 1-CKT FEED-THROUGH BLK, 1492-J35-B
MFG #1492-J35-B
$12.90Â /Â E
(Must order in increments of 40/E)
(Must order in increments of 40/E)
Product Description:
Terminal Block, Screw Connection, Feed Through, 15.9 x 60 x 56mm (0.626 x 2.36 x 2.2 in), 1 Pole, Blue, Pkg. Qty. of 40, VOLTAGE RATING UR 1000V AC/DC, CSA 600V AC/DC, IEC 1000V AC/DC, ATEX 690V AC/DC, MAXIMUM CURRENT RATING UR 150A, CSA 120A,
HESCO Part Number
AB1492J35B
UPC
662073058380
Manufacturer Part Number
1492-J35-B
Manufacturer
Allen-Bradley
Allen-Bradley
IEC 1-CKT FEED-THROUGH BLK, 1492-J35-B
MFG #1492-J35-B
Product Description:
Terminal Block, Screw Connection, Feed Through, 15.9 x 60 x 56mm (0.626 x 2.36 x 2.2 in), 1 Pole, Blue, Pkg. Qty. of 40, VOLTAGE RATING UR 1000V AC/DC, CSA 600V AC/DC, IEC 1000V AC/DC, ATEX 690V AC/DC, MAXIMUM CURRENT RATING UR 150A, CSA 120A,
HESCO Part Number
AB1492J35B
UPC
662073058380
Manufacturer Part Number
1492-J35-B
Manufacturer
Allen-Bradley
$12.90Â /Â E
(Must order in increments of 40/E)
(Must order in increments of 40/E)
- Specifications
- Resources
Specifications
| Amperage Rating | :Â Â | 109/120/125/150 |
| Brand Name | :Â Â | Allen-Bradley |
| Color | :Â Â | Blue |
| Special Features | :Â Â | Screw Connection, Feed Through, 1 Pole, Blue, Pkg. Qty. of 40 |
| Standard | :Â Â | CCC, CE, CSA, KC, MARINE, UL |
| Sub Brand | :Â Â | 1492 |
| Terminal Size | :Â Â | 15.9 x 60 x 56mm (0.626 x 2.36 x 2.2 in) |
| Type | :Â Â | IEC Screw Terminal Block |
| Voltage Rating | :Â Â | 600/690/1,000 // 600/690/1,000 |
| Wire Size | :  | UR - #12...1/0 AWG, CSA - #12...2 AWG, IEC - 35mm², ATEX #14...2AWG |
Specifications
Amperage Rating :  109/120/125/150 Brand Name :  Allen-Bradley Color :  Blue Special Features :  Screw Connection, Feed Through, 1 Pole, Blue, Pkg. Qty. of 40 Standard :  CCC, CE, CSA, KC, MARINE, UL Sub Brand :  1492 Terminal Size :  15.9 x 60 x 56mm (0.626 x 2.36 x 2.2 in) Type :  IEC Screw Terminal Block Voltage Rating :  600/690/1,000 // 600/690/1,000 Wire Size :  UR - #12...1/0 AWG, CSA - #12...2 AWG, IEC - 35mm², ATEX #14...2AWG - Downloads
Spec Sheet
