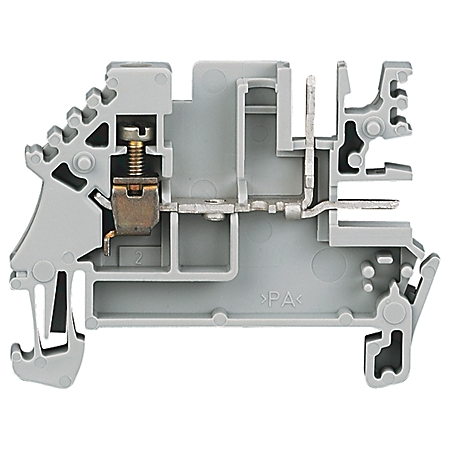

2.5 SQUARE MM COMB STYLE TERMINAL BLOCK, 1492-JC3
MFG #1492-JC3
$4.31Â /Â E
EACH
EACH
Product Description:
Terminal Block, Screw Connection, Feed Through with 2 plug in comb connections on one side, 5.1 x 45.4 x 30mm (0.20 x 1.79 x 1.18 in), 1 Pole, Gray, Pkg. Qty. of 50, VOLTAGE RATING UR 300V AC/DC, CSA 300V AC/DC, IEC 250V AC/DC, MAXIMUM CURRENT RATI
HESCO Part Number
AB1492JC3
UPC
662073059080
Manufacturer Part Number
1492-JC3
Manufacturer
Allen-Bradley
2.5 SQUARE MM COMB STYLE TERMINAL BLOCK, 1492-JC3
MFG #1492-JC3
Product Description:
Terminal Block, Screw Connection, Feed Through with 2 plug in comb connections on one side, 5.1 x 45.4 x 30mm (0.20 x 1.79 x 1.18 in), 1 Pole, Gray, Pkg. Qty. of 50, VOLTAGE RATING UR 300V AC/DC, CSA 300V AC/DC, IEC 250V AC/DC, MAXIMUM CURRENT RATI
HESCO Part Number
AB1492JC3
UPC
662073059080
Manufacturer Part Number
1492-JC3
Manufacturer
Allen-Bradley
$4.31Â /Â E
EACH
EACH
- Specifications
- Resources
Specifications
| Amperage Rating | :Â Â | UR - 20A, CSA - 10A, IEC - 10A (2 x 8) |
| Brand Name | :Â Â | Allen-Bradley |
| Color | :Â Â | Gray |
| Special Features | :Â Â | Screw Connection, Feed Through with 2 plug-in comb connections on one side, 1 Pole, Gray, Pkg. Qty. of 50 |
| Standard | :Â Â | CCC, CE, CSA, KC, UL |
| Sub Brand | :Â Â | 1492 |
| Terminal Size | :Â Â | 5.1 x 45.4 x 30mm (0.20 x 1.79 x 1.18 in) |
| Type | :Â Â | IEC Screw Plug-In Term Blk |
| Voltage Rating | :Â Â | 250/300//250/300 |
| Wire Size | :  | UR - #22...12 AWG, CSA - #26...12 AWG, IEC - 2.5mm² |
Specifications
Amperage Rating :  UR - 20A, CSA - 10A, IEC - 10A (2 x 8) Brand Name :  Allen-Bradley Color :  Gray Special Features :  Screw Connection, Feed Through with 2 plug-in comb connections on one side, 1 Pole, Gray, Pkg. Qty. of 50 Standard :  CCC, CE, CSA, KC, UL Sub Brand :  1492 Terminal Size :  5.1 x 45.4 x 30mm (0.20 x 1.79 x 1.18 in) Type :  IEC Screw Plug-In Term Blk Voltage Rating :  250/300//250/300 Wire Size :  UR - #22...12 AWG, CSA - #26...12 AWG, IEC - 2.5mm² - Downloads
Spec Sheet
