Allen-Bradley

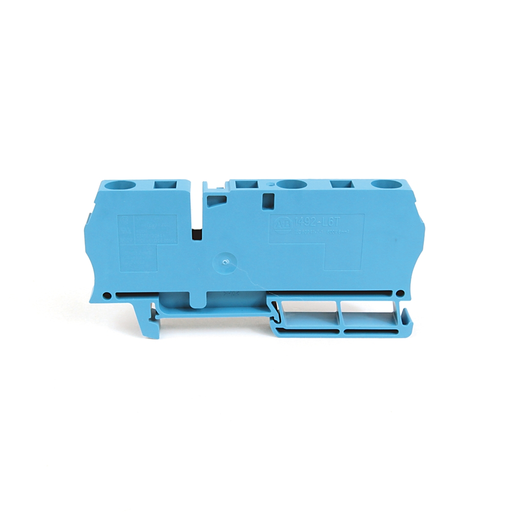

IEC TERM BLCK 8.1X90X38MM SPR CLP, 1492-L6T
MFG #1492-L6T
$4.71Â /Â E
EACH
EACH
Product Description:
Terminal Block, Spring Clamp Connection, Feed Through with 2 Connection Points on One Side, 8.1 x 90 x 38mm (0.319 x 3.54 x 1.5 in), 1 Pole, Gray, Pkg. Qty. of 50, VOLTAGE RATING UR 600V AC/DC, CSA 600V AC/DC, IEC 800V AC/DC, ATEX 550V AC/DC, MA
HESCO Part Number
AB1492L6T
UPC
662073055426
Manufacturer Part Number
1492-L6T
Manufacturer
Allen-Bradley
Allen-Bradley
IEC TERM BLCK 8.1X90X38MM SPR CLP, 1492-L6T
MFG #1492-L6T
Product Description:
Terminal Block, Spring Clamp Connection, Feed Through with 2 Connection Points on One Side, 8.1 x 90 x 38mm (0.319 x 3.54 x 1.5 in), 1 Pole, Gray, Pkg. Qty. of 50, VOLTAGE RATING UR 600V AC/DC, CSA 600V AC/DC, IEC 800V AC/DC, ATEX 550V AC/DC, MA
HESCO Part Number
AB1492L6T
UPC
662073055426
Manufacturer Part Number
1492-L6T
Manufacturer
Allen-Bradley
$4.71Â /Â E
EACH
EACH
- Specifications
- Resources
Specifications
| Amperage Rating | :Â Â | 36/41/50 |
| Brand Name | :Â Â | Allen-Bradley |
| Color | :Â Â | Gray |
| Special Features | :Â Â | Spring Clamp Connection, Feed Through with 2 Connection Points on One Side,1 Pole, Gray, Pkg. Qty. of 50 |
| Standard | :Â Â | C-TICK, CCC, CE, CSA, CUL, KC, MARINE, UL |
| Sub Brand | :Â Â | 1492 |
| Terminal Size | :Â Â | 8.1 x 90 x 38mm (0.319 x 3.54 x 1.5 in) |
| Type | :Â Â | IEC Spring Clamp Terminal Block |
| Voltage Rating | :Â Â | 550/600/800//550/600/800 |
| Wire Size | :  | UR - #22...8 AWG, CSA - #20...8 AWG, IEC - 6mm², ATEX - #20...8 AWG |
Specifications
Amperage Rating :  36/41/50 Brand Name :  Allen-Bradley Color :  Gray Special Features :  Spring Clamp Connection, Feed Through with 2 Connection Points on One Side,1 Pole, Gray, Pkg. Qty. of 50 Standard :  C-TICK, CCC, CE, CSA, CUL, KC, MARINE, UL Sub Brand :  1492 Terminal Size :  8.1 x 90 x 38mm (0.319 x 3.54 x 1.5 in) Type :  IEC Spring Clamp Terminal Block Voltage Rating :  550/600/800//550/600/800 Wire Size :  UR - #22...8 AWG, CSA - #20...8 AWG, IEC - 6mm², ATEX - #20...8 AWG - Downloads
Spec Sheet
