IEC TERM BLCK 5.1X72.5X47.9MM SPR CLP, 1492-LDG3C
MFG #1492-LDG3C
$11.17 / E
(Must order in increments of 25/E)
(Must order in increments of 25/E)
Product Description:

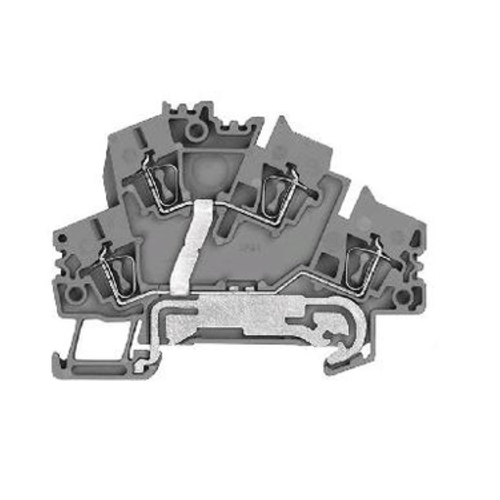

Terminal Block, Spring Clamp Connection, Single Circuit Two Level Grounding with 2 Connection Points on Each Side, 5.1 x 72.5 x 47.9mm (0.20 x 2.85 x 1.89 in), 1 Pole, Green/Yellow, Pkg. Qty. of 25, WIRE RANGE (Rated Cross Section) û UR #26...12 AWG, C
HESCO Part Number
AB1492LDG3C
UPC
662073056508
Manufacturer Part Number
1492-LDG3C
Manufacturer
Allen-Bradley
IEC TERM BLCK 5.1X72.5X47.9MM SPR CLP, 1492-LDG3C
MFG #1492-LDG3C
Product Description:
Terminal Block, Spring Clamp Connection, Single Circuit Two Level Grounding with 2 Connection Points on Each Side, 5.1 x 72.5 x 47.9mm (0.20 x 2.85 x 1.89 in), 1 Pole, Green/Yellow, Pkg. Qty. of 25, WIRE RANGE (Rated Cross Section) û UR #26...12 AWG, C
HESCO Part Number
AB1492LDG3C
UPC
662073056508
Manufacturer Part Number
1492-LDG3C
Manufacturer
Allen-Bradley
$11.17 / E
(Must order in increments of 25/E)
(Must order in increments of 25/E)
- Specifications
- Resources
Specifications
| Brand Name | : | Allen-Bradley |
| Color | : | Green/Yellow |
| Special Features | : | Spring Clamp Connection,Single Circuit Two Level Grounding 2 Connection Pts on Each Side,1 Pole,Green/Yellow |
| Standard | : | CCC, CE, CSA, CUL, UL |
| Sub Brand | : | 1492 |
| Terminal Size | : | 5.1 x 72.5 x 47.9mm (0.20 x 2.85 x 1.89 in) |
| Type | : | IEC Spring Clamp Grounding Terminal Block |
| Wire Size | : | UR - #26...12 AWG, CSA - #30...12 AWG, IEC - 2.5 mm², ATEX - #20...14 AWG |
Specifications
Brand Name : Allen-Bradley Color : Green/Yellow Special Features : Spring Clamp Connection,Single Circuit Two Level Grounding 2 Connection Pts on Each Side,1 Pole,Green/Yellow Standard : CCC, CE, CSA, CUL, UL Sub Brand : 1492 Terminal Size : 5.1 x 72.5 x 47.9mm (0.20 x 2.85 x 1.89 in) Type : IEC Spring Clamp Grounding Terminal Block Wire Size : UR - #26...12 AWG, CSA - #30...12 AWG, IEC - 2.5 mm², ATEX - #20...14 AWG - Downloads
Spec Sheet
