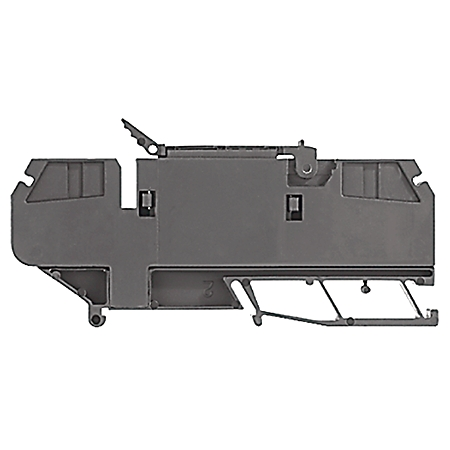

IEC TERM BLCK 8 X 97 X 43.8MM SPR CLP, 1492-RFB4
MFG #1492-RFB4
$17.89Â /Â E
EACH
EACH
Product Description:
Terminal Block, Spring Clamp, Single Circuit, Fusible, No Blown Fuse Indicator, 8 x 97 x 43.8mm (0.31 x 3.82 x 1.72 in), 1 Pole, Black, Pkg. Qty. of 25, VOLTAGE RATING UR 300V AC/DC, CSA 300V AC/DC, IEC 500V AC/DC, MAXIMUM CURRENT RATING UR 15A,
HESCO Part Number
AB1492RFB4
UPC
611320307726
Manufacturer Part Number
1492-RFB4
Manufacturer
Allen-Bradley
IEC TERM BLCK 8 X 97 X 43.8MM SPR CLP, 1492-RFB4
MFG #1492-RFB4
Product Description:
Terminal Block, Spring Clamp, Single Circuit, Fusible, No Blown Fuse Indicator, 8 x 97 x 43.8mm (0.31 x 3.82 x 1.72 in), 1 Pole, Black, Pkg. Qty. of 25, VOLTAGE RATING UR 300V AC/DC, CSA 300V AC/DC, IEC 500V AC/DC, MAXIMUM CURRENT RATING UR 15A,
HESCO Part Number
AB1492RFB4
UPC
611320307726
Manufacturer Part Number
1492-RFB4
Manufacturer
Allen-Bradley
$17.89Â /Â E
EACH
EACH
- Specifications
- Resources
Specifications
| Amperage Rating | :Â Â | 15 |
| Application | :Â Â | For Use with 5 x 20 mm Fuse (Not Supplied) |
| Brand Name | :Â Â | Allen-Bradley |
| Color | :Â Â | Black |
| Special Features | :Â Â | Spring Clamp, Single Circuit, Fusible, No Blown Fuse Indicator, 1 Pole, Black, Pkg. Qty. of 25 |
| Standard | :Â Â | CCC, CE, CUL, KC, UL |
| Sub Brand | :Â Â | 1492 |
| Terminal Size | :Â Â | 8 x 97 x 43.8mm (0.31 x 3.82 x 1.72 in) |
| Type | :Â Â | IEC Spring Clamp Fuse Terminal Block |
| Voltage Rating | :Â Â | 300/500//300/500 |
| Wire Size | :  | UR - #22...12 AWG, CSA - #22...12 AWG, IEC - 0.5...4mm² |
Specifications
Amperage Rating :  15 Application :  For Use with 5 x 20 mm Fuse (Not Supplied) Brand Name :  Allen-Bradley Color :  Black Special Features :  Spring Clamp, Single Circuit, Fusible, No Blown Fuse Indicator, 1 Pole, Black, Pkg. Qty. of 25 Standard :  CCC, CE, CUL, KC, UL Sub Brand :  1492 Terminal Size :  8 x 97 x 43.8mm (0.31 x 3.82 x 1.72 in) Type :  IEC Spring Clamp Fuse Terminal Block Voltage Rating :  300/500//300/500 Wire Size :  UR - #22...12 AWG, CSA - #22...12 AWG, IEC - 0.5...4mm² - Downloads
Spec Sheet
