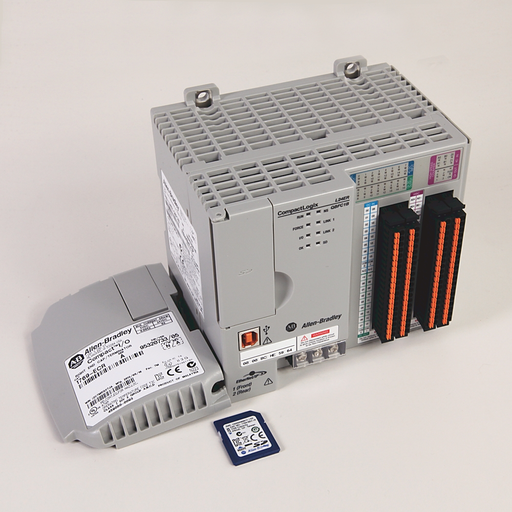

COMPACTLOGIX 750KB DI/O AI/O CONTROLLER, 1769-L24ER-QBFC1B
MFG #1769-L24ER-QBFC1B
$4,765.96Â /Â E
EACH
EACH
Product Description:
CompactLogix 5370 L2 Controller, 2 EtherNet/IP Ports With Device Level Ring Capability, 750KB Memory, 16 DC Inputs, 16 DC Outputs, 4 Universal Analog Inputs, 2 Analog Outputs, 4 High Speed Counters, Up To 4 1769 I/O Expansion Modules, 8 EtherNet/IP And 120 TCP Connections, 24V DC Input Embedded Power Supply, With 1GB SD card, Can Support Up To 2GB SD Card, 1 USB Port
HESCO Part Number
AB1769L24ERQBFC1B
UPC
885630101255
Manufacturer Part Number
1769-L24ER-QBFC1B
Manufacturer
Allen-Bradley
COMPACTLOGIX 750KB DI/O AI/O CONTROLLER, 1769-L24ER-QBFC1B
MFG #1769-L24ER-QBFC1B
Product Description:
CompactLogix 5370 L2 Controller, 2 EtherNet/IP Ports With Device Level Ring Capability, 750KB Memory, 16 DC Inputs, 16 DC Outputs, 4 Universal Analog Inputs, 2 Analog Outputs, 4 High Speed Counters, Up To 4 1769 I/O Expansion Modules, 8 EtherNet/IP And 120 TCP Connections, 24V DC Input Embedded Power Supply, With 1GB SD card, Can Support Up To 2GB SD Card, 1 USB Port
HESCO Part Number
AB1769L24ERQBFC1B
UPC
885630101255
Manufacturer Part Number
1769-L24ER-QBFC1B
Manufacturer
Allen-Bradley
$4,765.96Â /Â E
EACH
EACH
- Specifications
- Resources
Specifications
| Brand Name | :Â Â | Allen-Bradley |
| Communication | :Â Â | Ethernet , USB |
| Depth | :Â Â | 105mm |
| Display | :Â Â | Status LEDs |
| Input Signal | :Â Â | 10-30VDC, +/- 10V, 0-10.5V, 0-5.25V. 0-21mA, Thermocouple: J, K, T, E, R, S, B, N and C, RTD: Platinum 385, Platinum 3916, Copper 426, Nickel 672, Nickel 618, Nickel-Iron 518, Resistance |
| Isolation | :Â Â | 30V(continuous),Basic Insul,USB to system,Ethernet to system and Ethernet to Ethernet,Type tested at 500VAC for 60 s |
| Memory | :Â Â | 0.75MB |
| Mounting | :Â Â | DIN Rail / Panel Mount |
| Output Signal | :Â Â | 24VDC, +/- 10V, 0-10.5V, 0-5.25V. 0-21mA |
| Power Supply | :Â Â | 24V DC input, Isolated,Class 2/SELV |
| Special Features | :Â Â | Universal Analog Input |
| Standard | :Â Â | C-TICK, CE, CUL, GOST, KC, MARINE, UL |
| Sub Brand | :Â Â | CompactLogix |
| Type | :Â Â | Packaged Controller |
Specifications
Brand Name :Â Â Allen-Bradley Communication :Â Â Ethernet , USB Depth :Â Â 105mm Display :Â Â Status LEDs Input Signal :Â Â 10-30VDC, +/- 10V, 0-10.5V, 0-5.25V. 0-21mA, Thermocouple: J, K, T, E, R, S, B, N and C, RTD: Platinum 385, Platinum 3916, Copper 426, Nickel 672, Nickel 618, Nickel-Iron 518, Resistance Isolation :Â Â 30V(continuous),Basic Insul,USB to system,Ethernet to system and Ethernet to Ethernet,Type tested at 500VAC for 60 s Memory :Â Â 0.75MB Mounting :Â Â DIN Rail / Panel Mount Output Signal :Â Â 24VDC, +/- 10V, 0-10.5V, 0-5.25V. 0-21mA Power Supply :Â Â 24V DC input, Isolated,Class 2/SELV Special Features :Â Â Universal Analog Input Standard :Â Â C-TICK, CE, CUL, GOST, KC, MARINE, UL Sub Brand :Â Â CompactLogix Type :Â Â Packaged Controller - Downloads
Spec Sheet
