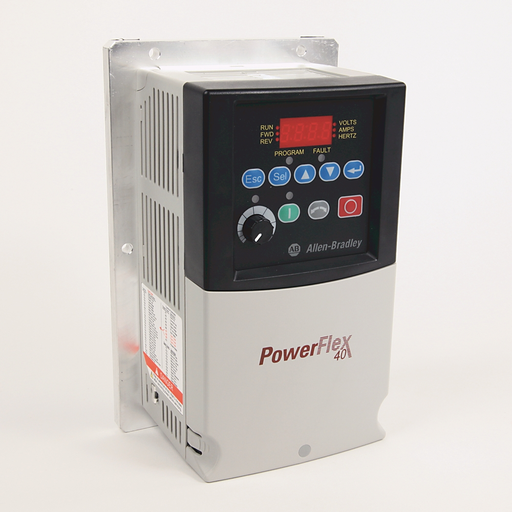

POWERFLEX 40- 4 KW (5 HP) AC DRIVE, 22B-D010H204
MFG #22B-D010H204
$2,240.88Â /Â E
EACH
EACH
Product Description:
AC Drive, 4 kW (5 HP), 480V AC Input, 3 PH, 50 60 Hz, 10.5 A Output, IP20, UL NEMA Type Open, Plate Mounting, With Brake IGBT, Omit Heatsink, Frame B, 0.98 PF, Integral Keypad With Flash Rom And Led Display, RS485, Fixed Terminal Block Connections
HESCO Part Number
AB22BD010H204
UPC
820919142765
Manufacturer Part Number
22B-D010H204
Manufacturer
Allen-Bradley
POWERFLEX 40- 4 KW (5 HP) AC DRIVE, 22B-D010H204
MFG #22B-D010H204
Product Description:
AC Drive, 4 kW (5 HP), 480V AC Input, 3 PH, 50 60 Hz, 10.5 A Output, IP20, UL NEMA Type Open, Plate Mounting, With Brake IGBT, Omit Heatsink, Frame B, 0.98 PF, Integral Keypad With Flash Rom And Led Display, RS485, Fixed Terminal Block Connections
HESCO Part Number
AB22BD010H204
UPC
820919142765
Manufacturer Part Number
22B-D010H204
Manufacturer
Allen-Bradley
$2,240.88Â /Â E
EACH
EACH
- Specifications
- Resources
Specifications
| Brake IGBT | :Â Â | Included |
| Brand Name | :Â Â | Allen-Bradley |
| Connection | :Â Â | Fixed Terminal Block |
| Control | :Â Â | RS485 |
| Enclosure | :Â Â | IP20 (Heatsinkless) |
| Frequency Rating | :Â Â | 50-60 |
| Input Voltage Rating | :Â Â | 480V AC |
| Mounting | :Â Â | Panel Mount |
| Output Current Rating | :Â Â | 10.5 A |
| Power Factor | :Â Â | 0.98 |
| Power Rating | :Â Â | 4 |
| Special Features | :Â Â | Without Heatsink |
| Standard | :Â Â | C-TICK, CE, CUL, GOST, KC, UL |
| Sub Brand | :Â Â | PowerFlex 40 |
| Type | :Â Â | AC Drive |
| User Interface | :Â Â | Keypad w/ Flash ROM Display |
Specifications
Brake IGBT :Â Â Included Brand Name :Â Â Allen-Bradley Connection :Â Â Fixed Terminal Block Control :Â Â RS485 Enclosure :Â Â IP20 (Heatsinkless) Frequency Rating :Â Â 50-60 Input Voltage Rating :Â Â 480V AC Mounting :Â Â Panel Mount Output Current Rating :Â Â 10.5 A Power Factor :Â Â 0.98 Power Rating :Â Â 4 Special Features :Â Â Without Heatsink Standard :Â Â C-TICK, CE, CUL, GOST, KC, UL Sub Brand :Â Â PowerFlex 40 Type :Â Â AC Drive User Interface :Â Â Keypad w/ Flash ROM Display - Downloads
Spec Sheet
