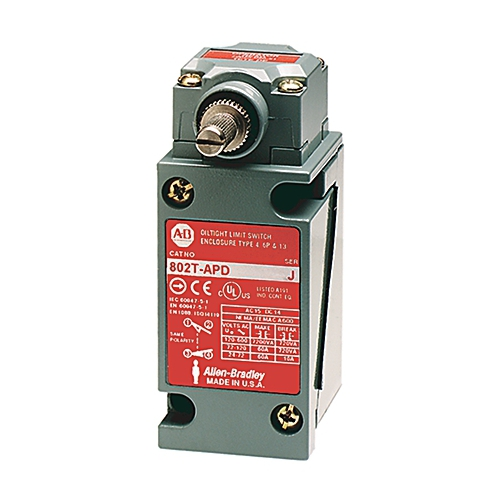

METAL PLUG-IN OILTIGHT LIMIT SWITCH, 802T-APDD5
MFG #802T-APDD5
$275.76Â /Â E
EACH
EACH
Product Description:
Plug In Oiltight Limit Switch, Metal, 10 A Standard Energy, Rotary Lever Arm, 2 Circuits, Quick Disconnect Connector, Low Energy, 24V DC @ 1.1A, 1 Normally Open Contact, 1 Normally Closed Contact, Standard Low Temprature, 18C, 110 C High Temp Limit, Snap Acting, Clockwise & Counter Clockwise, Spring Return, Full Switch (Head & Body), NEMA Style Standard Mounting, Direct Acting, 4 lb in, 802T Plug in Style, 13 Degree Angle, 7 Degree Angle, A600, AC 15, Q300, DC 13, 25 Degree Angle Direct Action, 370
HESCO Part Number
AB802TAPDD5
UPC
611320352405
Manufacturer Part Number
802T-APDD5
Manufacturer
Allen-Bradley
METAL PLUG-IN OILTIGHT LIMIT SWITCH, 802T-APDD5
MFG #802T-APDD5
Product Description:
Plug In Oiltight Limit Switch, Metal, 10 A Standard Energy, Rotary Lever Arm, 2 Circuits, Quick Disconnect Connector, Low Energy, 24V DC @ 1.1A, 1 Normally Open Contact, 1 Normally Closed Contact, Standard Low Temprature, 18C, 110 C High Temp Limit, Snap Acting, Clockwise & Counter Clockwise, Spring Return, Full Switch (Head & Body), NEMA Style Standard Mounting, Direct Acting, 4 lb in, 802T Plug in Style, 13 Degree Angle, 7 Degree Angle, A600, AC 15, Q300, DC 13, 25 Degree Angle Direct Action, 370
HESCO Part Number
AB802TAPDD5
UPC
611320352405
Manufacturer Part Number
802T-APDD5
Manufacturer
Allen-Bradley
$275.76Â /Â E
EACH
EACH
- Specifications
- Resources
Specifications
Actuator | :Â Â | Rotary Lever Arm |
Application | :Â Â | Full Switch (Head & Body) |
Brand Name | :Â Â | Allen-Bradley |
Connection | :Â Â | Cable Length Not Applicable,Number of Pins Not Applicable,Quick Disconnect Connector,Connector Type Not Applicable |
Contact Configuration | :Â Â | 2 Circuits |
Contact Rating | :Â Â | A600,AC-15,Q300,DC-13 |
Enclosure | :Â Â | Metal |
Lever Type | :Â Â | Lever Type Not Applicable |
Mounting | :Â Â | NEMA Style Standard Mounting |
Number Of Poles | :Â Â | 2 |
Operating Temperature | :Â Â | 110 C High Temp Limit,Standard Low Temprature, -18C |
Roller Diameter | :Â Â | Roller Diameter Not Applicable |
Roller Width | :Â Â | Roller Width Not Applicable |
Size | :Â Â | 802T Plug-in Style |
Special Features | :Â Â | Indicator Config - Not Appli |
Standard | :Â Â | CCC, KC |
Type | :Â Â | Plug-In Oiltight Limit Switch |
Specifications
Actuator :Â Â Rotary Lever Arm Application :Â Â Full Switch (Head & Body) Brand Name :Â Â Allen-Bradley Connection :Â Â Cable Length Not Applicable,Number of Pins Not Applicable,Quick Disconnect Connector,Connector Type Not Applicable Contact Configuration :Â Â 2 Circuits Contact Rating :Â Â A600,AC-15,Q300,DC-13 Enclosure :Â Â Metal Lever Type :Â Â Lever Type Not Applicable Mounting :Â Â NEMA Style Standard Mounting Number Of Poles :Â Â 2 Operating Temperature :Â Â 110 C High Temp Limit,Standard Low Temprature, -18C Roller Diameter :Â Â Roller Diameter Not Applicable Roller Width :Â Â Roller Width Not Applicable Size :Â Â 802T Plug-in Style Special Features :Â Â Indicator Config - Not Appli Standard :Â Â CCC, KC Type :Â Â Plug-In Oiltight Limit Switch - Downloads
Spec Sheet
