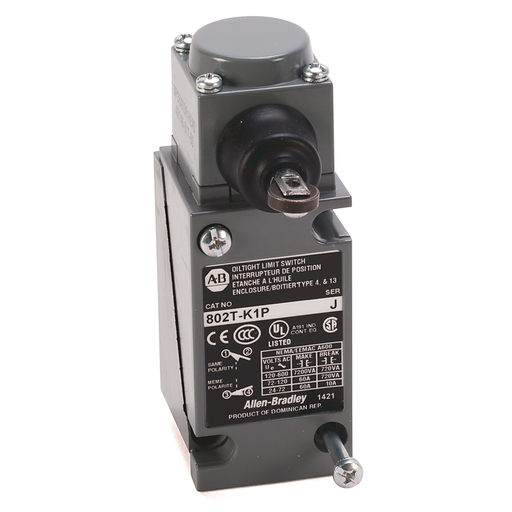

METAL PLUG-IN OILTIGHT LIMIT SWITCH, 802T-K1TPD
MFG #802T-K1TPD
$367.16Â /Â E
EACH
EACH
Product Description:
Plug In Oiltight Limit Switch, Metal, 10 A Standard Energy, Horizontal Side Push Roller, 4 Circuits, Conduit Entry, Low Energy, 24V DC @ 1.1A, 2 Normally Open Contacts, 2 Normally Closed Contacts, Standard Low Temprature, 18C, 110 C High Temp Limit, Snap Acting, 1/2" NPT Thread, Push Accuation, Spring Return, Full Switch (Head & Body), NEMA Style Standard Mounting, Direct Acting, 5.5 lb in, 802T Plug in Style, 2.08 mm, 1.14 mm, A300, Q300, DC 13, 4.19 mm Direct Action Postion, 404
HESCO Part Number
AB802TK1TPD
UPC
611320837001
Manufacturer Part Number
802T-K1TPD
Manufacturer
Allen-Bradley
METAL PLUG-IN OILTIGHT LIMIT SWITCH, 802T-K1TPD
MFG #802T-K1TPD
Product Description:
Plug In Oiltight Limit Switch, Metal, 10 A Standard Energy, Horizontal Side Push Roller, 4 Circuits, Conduit Entry, Low Energy, 24V DC @ 1.1A, 2 Normally Open Contacts, 2 Normally Closed Contacts, Standard Low Temprature, 18C, 110 C High Temp Limit, Snap Acting, 1/2" NPT Thread, Push Accuation, Spring Return, Full Switch (Head & Body), NEMA Style Standard Mounting, Direct Acting, 5.5 lb in, 802T Plug in Style, 2.08 mm, 1.14 mm, A300, Q300, DC 13, 4.19 mm Direct Action Postion, 404
HESCO Part Number
AB802TK1TPD
UPC
611320837001
Manufacturer Part Number
802T-K1TPD
Manufacturer
Allen-Bradley
$367.16Â /Â E
EACH
EACH
- Specifications
- Resources
Specifications
Action | :Â Â | Snap Acting,Low Energy, 24V DC @ 1.1A |
Actuator | :Â Â | Horizontal Side Push Roller |
Application | :Â Â | Full Switch (Head & Body) |
Brand Name | :Â Â | Allen-Bradley |
Connection | :Â Â | Connector Type Not Applicable,Conduit Entry,Number of Pins Not Applicable,Cable Length Not Applicable |
Contact Configuration | :Â Â | 4 Circuits |
Contact Rating | :Â Â | A300,Q300,DC-13 |
Enclosure | :Â Â | Metal |
Mounting | :Â Â | NEMA Style Standard Mounting |
Number Of Poles | :Â Â | 4 |
Operating Temperature | :Â Â | Standard Low Temprature, -18C,110 C High Temp Limit |
Size | :Â Â | 802T Plug-in Style |
Special Features | :Â Â | Indicator Config - Not Appli |
Standard | :Â Â | CCC, KC |
Type | :Â Â | Plug-In Oiltight Limit Switch |
Voltage Rating | :Â Â | 10 A Standard Energy |
Roller Width | :Â Â | Roller Width Not Applicable |
Lever Type | :Â Â | Lever Type Not Applicable |
Roller Diameter | :Â Â | Roller Diameter Not Applicable |
Specifications
Action :Â Â Snap Acting,Low Energy, 24V DC @ 1.1A Actuator :Â Â Horizontal Side Push Roller Application :Â Â Full Switch (Head & Body) Brand Name :Â Â Allen-Bradley Connection :Â Â Connector Type Not Applicable,Conduit Entry,Number of Pins Not Applicable,Cable Length Not Applicable Contact Configuration :Â Â 4 Circuits Contact Rating :Â Â A300,Q300,DC-13 Enclosure :Â Â Metal Mounting :Â Â NEMA Style Standard Mounting Number Of Poles :Â Â 4 Operating Temperature :Â Â Standard Low Temprature, -18C,110 C High Temp Limit Size :Â Â 802T Plug-in Style Special Features :Â Â Indicator Config - Not Appli Standard :Â Â CCC, KC Type :Â Â Plug-In Oiltight Limit Switch Voltage Rating :Â Â 10 A Standard Energy Roller Width :Â Â Roller Width Not Applicable Lever Type :Â Â Lever Type Not Applicable Roller Diameter :Â Â Roller Diameter Not Applicable - Downloads
Spec Sheet
