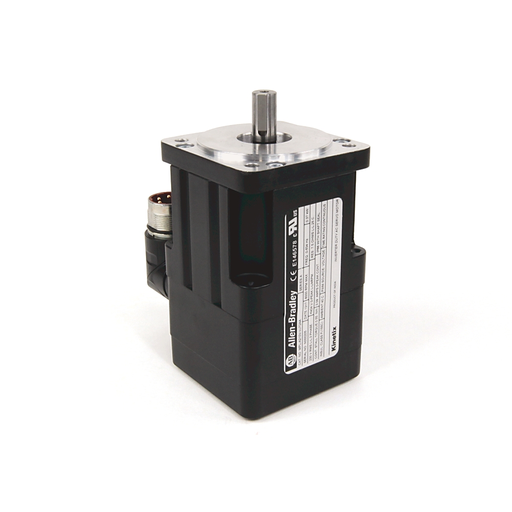

MP-SERIES MPL 240V AC ROTARY SERVO MOTOR, MPL-A210V-VJ72AA
MFG #MPL-A210V-VJ72AA
$2,335.44Â /Â E
EACH
EACH
Product Description:
Bulletin MPL Low Inertia Brushless Servo Motors Product, 230 V, Frame Size 2 = 75 mm (2.95 in.), Stack Length 10 = 25.4 mm (1.0 in.), 8000 RPM, Multi turn High resolution Encoder (absolute feedback). Keyed Shaft Extension, SpeedTEC DIN Connector, Right
HESCO Part Number
ABMPLA210VVJ72AA
UPC
884951213531
Manufacturer Part Number
MPL-A210V-VJ72AA
Manufacturer
Allen-Bradley
MP-SERIES MPL 240V AC ROTARY SERVO MOTOR, MPL-A210V-VJ72AA
MFG #MPL-A210V-VJ72AA
Product Description:
Bulletin MPL Low Inertia Brushless Servo Motors Product, 230 V, Frame Size 2 = 75 mm (2.95 in.), Stack Length 10 = 25.4 mm (1.0 in.), 8000 RPM, Multi turn High resolution Encoder (absolute feedback). Keyed Shaft Extension, SpeedTEC DIN Connector, Right
HESCO Part Number
ABMPLA210VVJ72AA
UPC
884951213531
Manufacturer Part Number
MPL-A210V-VJ72AA
Manufacturer
Allen-Bradley
$2,335.44Â /Â E
EACH
EACH
- Specifications
- Resources
Specifications
| Armature Voltage | :Â Â | 230 V |
| Brake Option | :Â Â | No Brake |
| Brand Name | :Â Â | Allen-Bradley |
| Connectors | :Â Â | SpeedTEC DIN Connector, Right Angle, 180 Rotatable (Quick Connect) |
| Enclosure | :Â Â | Keyed Shaft Extension |
| Factory Options | :Â Â | Standard |
| Feedback | :Â Â | Multi-turn High-resolution Encoder (absolute feedback) |
| Frame | :Â Â | 2 = 75 mm (2.95 in.) |
| Magnet Stack Length | :Â Â | 10 = 25.4 mm (1.0 in.) |
| Mounting | :Â Â | IEC Metric, Free Mounting Holes (Type FF) |
| Special Features | :Â Â | low inertia |
| Speed Rating | :Â Â | 8000 RPM |
| Standard | :Â Â | CE, CUL, KC, UL |
| Sub Brand | :Â Â | MP-Series |
| Type | :Â Â | Servo Motor |
Specifications
Armature Voltage :Â Â 230 V Brake Option :Â Â No Brake Brand Name :Â Â Allen-Bradley Connectors :Â Â SpeedTEC DIN Connector, Right Angle, 180 Rotatable (Quick Connect) Enclosure :Â Â Keyed Shaft Extension Factory Options :Â Â Standard Feedback :Â Â Multi-turn High-resolution Encoder (absolute feedback) Frame :Â Â 2 = 75 mm (2.95 in.) Magnet Stack Length :Â Â 10 = 25.4 mm (1.0 in.) Mounting :Â Â IEC Metric, Free Mounting Holes (Type FF) Special Features :Â Â low inertia Speed Rating :Â Â 8000 RPM Standard :Â Â CE, CUL, KC, UL Sub Brand :Â Â MP-Series Type :Â Â Servo Motor - Downloads
Spec Sheet
