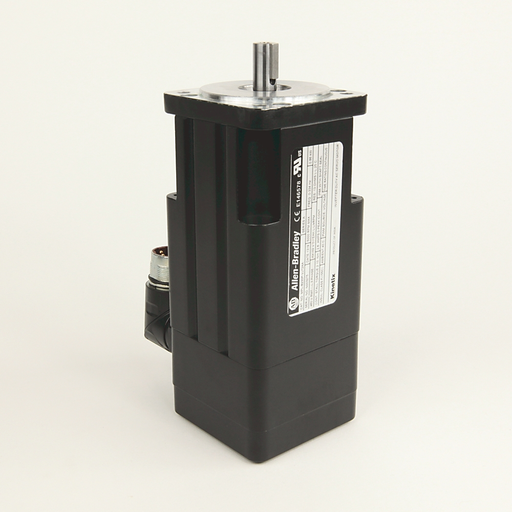

MP-SERIES MPL 480V AC ROTARY SERVO MOTOR, MPL-B230P-VJ72AA
MFG #MPL-B230P-VJ72AA
$2,398.72Â /Â E
EACH
EACH
Product Description:
Bulletin MPL Low Inertia Brushless Servo Motors Product, 460 V, Frame Size 2 = 75 mm (2.95 in.), Stack Length 30 = 76.2 mm (3.0 in.), 5000 RPM, Multi turn High resolution Encoder (absolute feedback). Keyed Shaft Extension, SpeedTEC DIN Connector, Right
HESCO Part Number
ABMPLB230PVJ72AA
UPC
884951213975
Manufacturer Part Number
MPL-B230P-VJ72AA
Manufacturer
Allen-Bradley
MP-SERIES MPL 480V AC ROTARY SERVO MOTOR, MPL-B230P-VJ72AA
MFG #MPL-B230P-VJ72AA
Product Description:
Bulletin MPL Low Inertia Brushless Servo Motors Product, 460 V, Frame Size 2 = 75 mm (2.95 in.), Stack Length 30 = 76.2 mm (3.0 in.), 5000 RPM, Multi turn High resolution Encoder (absolute feedback). Keyed Shaft Extension, SpeedTEC DIN Connector, Right
HESCO Part Number
ABMPLB230PVJ72AA
UPC
884951213975
Manufacturer Part Number
MPL-B230P-VJ72AA
Manufacturer
Allen-Bradley
$2,398.72Â /Â E
EACH
EACH
- Specifications
- Resources
Specifications
| Standard | :Â Â | CE, CUL, KC, UL |
| Armature Voltage | :Â Â | 460 V |
| Brand Name | :Â Â | Allen-Bradley |
| Enclosure | :Â Â | Keyed Shaft Extension |
| Frame | :Â Â | 2 = 75 mm (2.95 in.) |
| Mounting | :Â Â | IEC Metric, Free Mounting Holes (Type FF) |
| Special Features | :Â Â | low inertia |
| Speed Rating | :Â Â | 5000 RPM |
| Sub Brand | :Â Â | MP-Series |
| Type | :Â Â | Servo Motor |
| Connectors | :Â Â | SpeedTEC DIN Connector, Right Angle, 180 Rotatable (Quick Connect) |
| Feedback | :Â Â | Multi-turn High-resolution Encoder (absolute feedback) |
| Magnet Stack Length | :Â Â | 30 = 76.2 mm (3.0 in.) |
| Factory Options | :Â Â | Standard |
| Brake Option | :Â Â | No Brake |
Specifications
Standard :Â Â CE, CUL, KC, UL Armature Voltage :Â Â 460 V Brand Name :Â Â Allen-Bradley Enclosure :Â Â Keyed Shaft Extension Frame :Â Â 2 = 75 mm (2.95 in.) Mounting :Â Â IEC Metric, Free Mounting Holes (Type FF) Special Features :Â Â low inertia Speed Rating :Â Â 5000 RPM Sub Brand :Â Â MP-Series Type :Â Â Servo Motor Connectors :Â Â SpeedTEC DIN Connector, Right Angle, 180 Rotatable (Quick Connect) Feedback :Â Â Multi-turn High-resolution Encoder (absolute feedback) Magnet Stack Length :Â Â 30 = 76.2 mm (3.0 in.) Factory Options :Â Â Standard Brake Option :Â Â No Brake - Downloads
Spec Sheet
