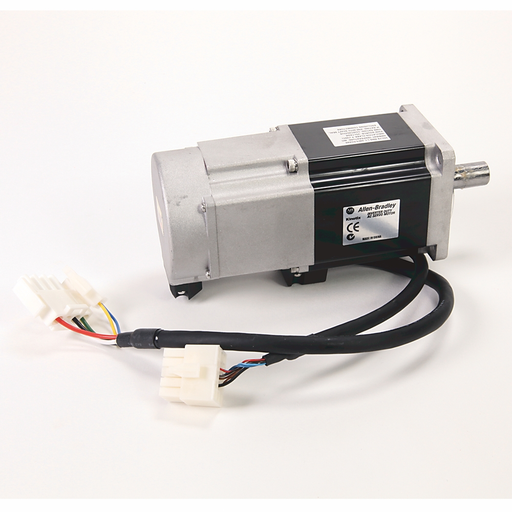

TL-SERIES 240V AC ROTARY SERVO MOTOR, TL-A220P-BJ32AA
MFG #TL-A220P-BJ32AA
$778.76Â /Â E
EACH
EACH
Product Description:
TL Series Servo Motor, 230V AC, Frame Size 2 = 70 mm (2.75 in.) or NEMA 23, Magnet Stack Length 20, 5000 RPM, Absolute Encoder, Battery Backed, Multi Turn, IP65 housing/ Shaft key/No shaft seal, Cables With Rectangular Connectors, 300 mm (11.8 in.), No Brake, Standard (Metric)
HESCO Part Number
ABTLA220PBJ32AA
UPC
820919236792
Manufacturer Part Number
TL-A220P-BJ32AA
Manufacturer
Allen-Bradley
TL-SERIES 240V AC ROTARY SERVO MOTOR, TL-A220P-BJ32AA
MFG #TL-A220P-BJ32AA
Product Description:
TL Series Servo Motor, 230V AC, Frame Size 2 = 70 mm (2.75 in.) or NEMA 23, Magnet Stack Length 20, 5000 RPM, Absolute Encoder, Battery Backed, Multi Turn, IP65 housing/ Shaft key/No shaft seal, Cables With Rectangular Connectors, 300 mm (11.8 in.), No Brake, Standard (Metric)
HESCO Part Number
ABTLA220PBJ32AA
UPC
820919236792
Manufacturer Part Number
TL-A220P-BJ32AA
Manufacturer
Allen-Bradley
$778.76Â /Â E
EACH
EACH
- Specifications
- Resources
Specifications
Application | :Â Â | TL-Series |
Armature Voltage | :Â Â | 240V AC |
Brake Option | :Â Â | no brake |
Brand Name | :Â Â | Allen-Bradley |
Connectors | :Â Â | Cables with rectangular connectors, 300mm (11.8 in.) |
Enclosure | :Â Â | IP65 housing/ Shaft key/No shaft seal |
Factory Options | :Â Â | Standard (Metric) |
Feedback | :Â Â | Multi-turn, 17 bit (131,072) counts/revolution, absolute, battery-backed encoder (serial protocol) |
Frame | :Â Â | 2 = 70 mm (2.75 in.) or NEMA 23 |
Magnet Stack Length | :Â Â | Two Stack |
Speed Rating | :Â Â | 5000 RPM |
Standard | :Â Â | CE, KC |
Sub Brand | :Â Â | TL-Series |
Type | :Â Â | servo motor |
Specifications
Application :Â Â TL-Series Armature Voltage :Â Â 240V AC Brake Option :Â Â no brake Brand Name :Â Â Allen-Bradley Connectors :Â Â Cables with rectangular connectors, 300mm (11.8 in.) Enclosure :Â Â IP65 housing/ Shaft key/No shaft seal Factory Options :Â Â Standard (Metric) Feedback :Â Â Multi-turn, 17 bit (131,072) counts/revolution, absolute, battery-backed encoder (serial protocol) Frame :Â Â 2 = 70 mm (2.75 in.) or NEMA 23 Magnet Stack Length :Â Â Two Stack Speed Rating :Â Â 5000 RPM Standard :Â Â CE, KC Sub Brand :Â Â TL-Series Type :Â Â servo motor - Downloads
Spec Sheet
