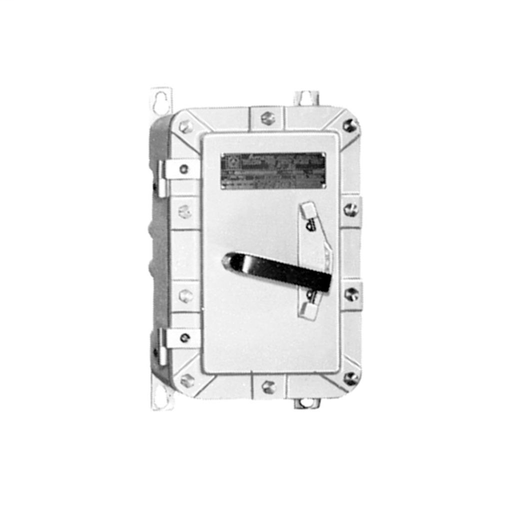

Appleton™ EDS Heavy Duty Disconnect Switches - PN EDS1036
MFG #EDS1036
$4,622.64 / E
EACH
EACH
Product Description:
Appleton™ explosionproof, dust-ignitionproof EDS Series non-fused switches provide a safe means of disconnecting loads or controlling motors. The lightweight, compact design and internal flange provides the smallest footprint available for a disconnect switch in the industry. For use with heavy duty loads in hazardous environments. This 600 Vac 3-pole, motor circuit switch is available in 30, 60, 100, and 200 Amp units.
HESCO Part Number
APPEDS1036
Manufacturer Part Number
EDS1036
Manufacturer
Appleton Group
Appleton™ EDS Heavy Duty Disconnect Switches - PN EDS1036
MFG #EDS1036
Product Description:
Appleton™ explosionproof, dust-ignitionproof EDS Series non-fused switches provide a safe means of disconnecting loads or controlling motors. The lightweight, compact design and internal flange provides the smallest footprint available for a disconnect switch in the industry. For use with heavy duty loads in hazardous environments. This 600 Vac 3-pole, motor circuit switch is available in 30, 60, 100, and 200 Amp units.
HESCO Part Number
APPEDS1036
Manufacturer Part Number
EDS1036
Manufacturer
Appleton Group
$4,622.64 / E
EACH
EACH
- Features
- Specifications
- Resources
- Explosionproof, dust-ignitionproof. Functions as load disconnect switch or as individual motor control switch
- Hinged, removable cover provides instant access for installation and servicing
- Self-locating, spring-mounted internal handle actuator
- Rugged handle has stainless steel shaft within a stainless steel bushing; may be locked in ON or OFF position
- Removable mounting plate simplifies installation
- Top and bottom standard feed-thru conduit openings. Removable reducer bushing furnished with each opening
- Additional top and bottom openings for drain and breather; supplied with close-up plugs
- Covers have captive, slotted, stainless steel screws to prevent "freezing"
- Insulated neutral lug supplied as standard
- For 200 Amp, please contact your local sales representative
Specifications
| Standard Materials and Finishes | : | Copperfree (4/10 of 1% max.) aluminum enclosure and cover; stainless steel handle shaft, bushing and exposed hardware. Exterior surfaces have epoxy powder coat finish |
| Options | : | 1NO, 1NC or 2NO, 2NC auxiliary switch, drain/breather and NEMA 4, 4X enclosure are available. See catalog pages for details |
Certifications and Compliances | ||
| NEC Certifications and Compliances | : | Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III; NEMA 3R, 4, 4X, 7BCD, 9EFG |
| CEC Certifications and Compliances | : | Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III; NEMA 4, 4X, 7BCD, 9EFG |
- Explosionproof, dust-ignitionproof. Functions as load disconnect switch or as individual motor control switch
- Hinged, removable cover provides instant access for installation and servicing
- Self-locating, spring-mounted internal handle actuator
- Rugged handle has stainless steel shaft within a stainless steel bushing; may be locked in ON or OFF position
- Removable mounting plate simplifies installation
- Top and bottom standard feed-thru conduit openings. Removable reducer bushing furnished with each opening
- Additional top and bottom openings for drain and breather; supplied with close-up plugs
- Covers have captive, slotted, stainless steel screws to prevent "freezing"
- Insulated neutral lug supplied as standard
- For 200 Amp, please contact your local sales representative
Specifications
Standard Materials and Finishes : Copperfree (4/10 of 1% max.) aluminum enclosure and cover; stainless steel handle shaft, bushing and exposed hardware. Exterior surfaces have epoxy powder coat finish Options : 1NO, 1NC or 2NO, 2NC auxiliary switch, drain/breather and NEMA 4, 4X enclosure are available. See catalog pages for details Certifications and Compliances
NEC Certifications and Compliances : Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III; NEMA 3R, 4, 4X, 7BCD, 9EFG CEC Certifications and Compliances : Class I, Division 1 and 2, Groups B, C, D; Class II, Division 1 and 2, Groups E, F, G; Class III; NEMA 4, 4X, 7BCD, 9EFG - Catalogs
Catalog: EDS Heavy Duty Disconnect Switches | Appleton
