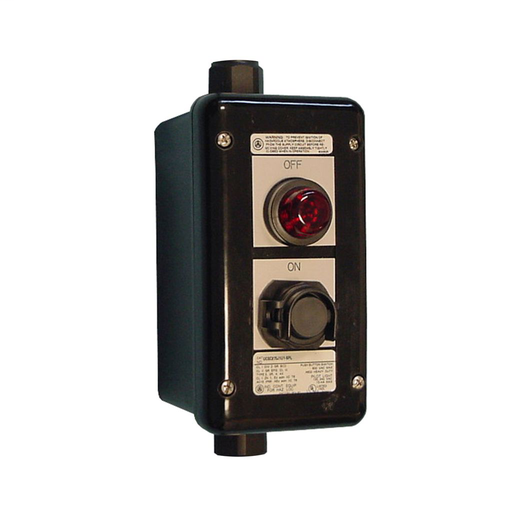

Appleton™ UniCode™ Series Factory Sealed Control Stations and Pilot Lights - PN UCSC150UM1
MFG #UCSC150UM1
$820.40 / E
EACH
EACH
Product Description:
Appleton™ UniCode™ Series factory sealed control stations are for use in washdown areas and other damp, wet and highly corrosive areas for control operation of motors and other equipment. A variety of push buttons and selector switches are available for use in conjunction with contactors or magnetic starters for remote control of motors in hazardous locations. They provide circuit control and/or selection. Pilot lights are available to provide visual assurance that an electrical function is being performed at a remote or local hazardous location.
HESCO Part Number
APPUCSC150UM1
Manufacturer Part Number
UCSC150UM1
Manufacturer
Appleton Group
Appleton™ UniCode™ Series Factory Sealed Control Stations and Pilot Lights - PN UCSC150UM1
MFG #UCSC150UM1
Product Description:
Appleton™ UniCode™ Series factory sealed control stations are for use in washdown areas and other damp, wet and highly corrosive areas for control operation of motors and other equipment. A variety of push buttons and selector switches are available for use in conjunction with contactors or magnetic starters for remote control of motors in hazardous locations. They provide circuit control and/or selection. Pilot lights are available to provide visual assurance that an electrical function is being performed at a remote or local hazardous location.
HESCO Part Number
APPUCSC150UM1
Manufacturer Part Number
UCSC150UM1
Manufacturer
Appleton Group
$820.40 / E
EACH
EACH
- Features
- Specifications
- Resources
- Ideal for installation in chemical and petrochemical plants, refineries, pulp and paper processing plants and other process industries
- Enclosures constructed of specially formulated fiberglass reinforced thermoset polyester with low surface resistivity that will not hold a static charge
- Corrosion resistant captive stainless steel screws hold covers to body
- Durable materials and construction exceeds UL environmental requirements including impact
- Both the standard hub and union hub provide ground path continuity in feed-thru applications
- Factory sealed, eliminates the need for adding sealing fittings and compound at each conduit entrance
- Wide variety of devices and options results in a control station tailor made to the application
- Available with two types of explosionproof protection
- The Labyrinth switch is rated A600 heavy pilot duty and P150
- Pilot light employs LED cluster with lifetime of 100,000 hours that can be used at either 120 Vac?or 240 Vac
- Optional pilot light has 12 Vac/24 Vdc ratings
- Optional union hub allows temporary rotation of hub for ease of installation
Specifications
| Standard Materials | : | Fiberglass reinforced thermoset polyester body and cover; stainless steel and Noryl™ hubs, ground plate, and screws; operators are polyester, Valox™ and stainless steel |
| Modified Operation Three Position Selector Switches | : | Momentary contact right position, spring return to center, maintained contact left position (with or without alternate contacts). Momentary contact left position, spring return to center, maintained contact right position. See catalog pages for details |
| Available Options | : | See catalog pages for details |
Certifications and Compliances | ||
| NEC and CEC Certifications and Compliances | : | Class I, Division 2, Groups B, C, D; Class I, Zone 2, Group IIC; Class II, Groups E, F, G; Class III; Type 3, 3R, 4, 4X; IP66 |
- Ideal for installation in chemical and petrochemical plants, refineries, pulp and paper processing plants and other process industries
- Enclosures constructed of specially formulated fiberglass reinforced thermoset polyester with low surface resistivity that will not hold a static charge
- Corrosion resistant captive stainless steel screws hold covers to body
- Durable materials and construction exceeds UL environmental requirements including impact
- Both the standard hub and union hub provide ground path continuity in feed-thru applications
- Factory sealed, eliminates the need for adding sealing fittings and compound at each conduit entrance
- Wide variety of devices and options results in a control station tailor made to the application
- Available with two types of explosionproof protection
- The Labyrinth switch is rated A600 heavy pilot duty and P150
- Pilot light employs LED cluster with lifetime of 100,000 hours that can be used at either 120 Vac?or 240 Vac
- Optional pilot light has 12 Vac/24 Vdc ratings
- Optional union hub allows temporary rotation of hub for ease of installation
Specifications
Standard Materials : Fiberglass reinforced thermoset polyester body and cover; stainless steel and Noryl™ hubs, ground plate, and screws; operators are polyester, Valox™ and stainless steel Modified Operation Three Position Selector Switches : Momentary contact right position, spring return to center, maintained contact left position (with or without alternate contacts). Momentary contact left position, spring return to center, maintained contact right position. See catalog pages for details Available Options : See catalog pages for details Certifications and Compliances
NEC and CEC Certifications and Compliances : Class I, Division 2, Groups B, C, D; Class I, Zone 2, Group IIC; Class II, Groups E, F, G; Class III; Type 3, 3R, 4, 4X; IP66 - Manuals & Guides
Instruction Sheet: F-11161, Unicode 2 Series Control Stations | Appleton
CatalogsCatalog: UniCode Series Factory Sealed Control Stations and Pilot Lights | Appleton
