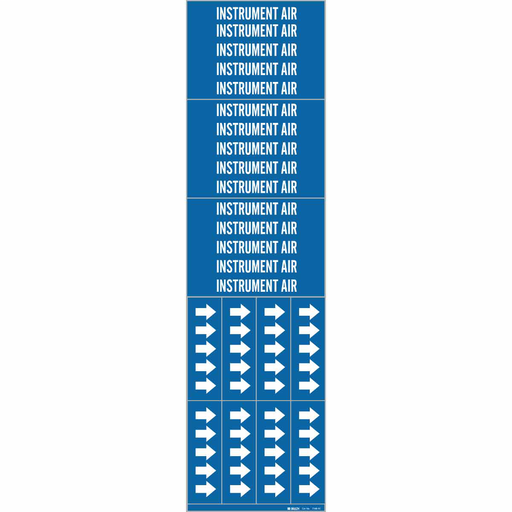

INSTRUMENT AIR Pipe Marker, 2.25" H x 2.75" W, Card of 3 Each, Fits Pipes 0.75" Dia. or Smaller
MFG #7168-3C
Requires Quote
/ EACH
Product Description:
Self-sticking pipe markers from Brady® simplify installation with their factory-applied industrial-grade adhesives: simply peel off the backing and press the marker in place.
HESCO Part Number
BRA71683C
UPC
754473362041
Manufacturer Part Number
7168-3C
Manufacturer
Brady
INSTRUMENT AIR Pipe Marker, 2.25" H x 2.75" W, Card of 3 Each, Fits Pipes 0.75" Dia. or Smaller
MFG #7168-3C
Product Description:
Self-sticking pipe markers from Brady® simplify installation with their factory-applied industrial-grade adhesives: simply peel off the backing and press the marker in place.
HESCO Part Number
BRA71683C
UPC
754473362041
Manufacturer Part Number
7168-3C
Manufacturer
Brady
Requires Quote
/ EACH
- Features
- Specifications
- Resources
- Banding each end of a pipe marker with directional flow arrow tape is recommended
- Style 3C pipe markers measure 2-1/4 in. x 2-3/4 in. and fit pipe diameters less than 3/4 in.
- High gloss, durable, flexible vinyl with a permanent cold temperature pressure sensitive acrylic adhesive
- Good chemical, oil and water resistance
Specifications
| Applications | : | Pipe and Valve Marking |
| Brand Name | : | Brady® |
| Color | : | White on Blue |
| Compatible Surface Types | : | General |
| Enables Industry Compliance | : | ANSI A13.1-2007 |
| Finish | : | Gloss |
| Language | : | English |
| Pipe Marker Mounting Style | : | Self-Adhesive |
| Pipe Marker Style | : | 3C |
| Pre-Printed Areas on Label | : | Pipe Contents |
| Primary Noun, Basic Function | : | Pipe Marker |
| Printer and Label Applications | : | General Identification; Pipe Marker |
| Quantity per Card or Sheet | : | 3 |
| Reflective Type | : | Non-Reflective |
| Self-Adhesive Pipe Marker Format | : | Die-Cut on Cards |
| Text Legend | : | INSTRUMENT AIR |
| Adhesive Type | : | Permanent Acrylic |
| Brady Material Number | : | B-946 |
| Indoor or Outdoor Use | : | Outdoor Use |
| Label Properties | : | Aggressive Adhesive Labels; Permanent Adhesive Labels; Standard High Quality Labels |
| Material | : | Vinyl |
| Resistance Properties | : | Abrasion-Resistant; Chemical-Resistant |
| SAP B-Number | : | B-946 |
| Average Outdoor Durability | : | 8 to 10 Years |
| Character Height (in/ft/yd) | : | 0.5 in |
| Character Height (mm/cm/m) | : | 12.7 mm |
| Dimensions | : | 2.25 in H x 2.75 in W |
| Dimensions (Metric) | : | 57.2 mm H |
| Dimensions 2 | : | 2.25 in H x 2.75 in W |
| Height (in/ft/yd) | : | 2.25 in |
| Height (mm/cm/m) | : | 57.2 mm |
| Maximum Outside Pipe Diameter (in/ft/yd) | : | 0.75 in |
| Maximum Outside Pipe Diameter (mm/cm/m) | : | 19.05 mm |
| Maximum Service Temperature °C | : | 82 °C |
| Maximum Service Temperature °F | : | 180 °F |
| Minimum Application Temperature °C | : | -18 °C |
| Minimum Application Temperature °F | : | 0 °F |
| Minimum Service Temperature °C | : | -40 °C |
| Minimum Service Temperature °F | : | -40 °F |
| Overall Size | : | Fits Pipes 0.75in Dia. or smaller |
| Sign Size-General | : | 2.25 in x 2.75 in |
| Size | : | 3C |
| Thickness (in/ft/yd) | : | 0.004 in |
| Thickness (mm/cm/m) | : | 0.102 mm |
| Width (in/ft/yd) | : | 2.75 in |
| Width (mm/cm/m) | : | 69.85 mm |
Regulatory Information | ||
| Contains CA PROP 65 Substance | : | No - Does not contain |
| Contains CA PROP 65 Substance | : | No |
| Contains Heavy Metal(s) | : | No - Does not contain |
| DOT Regulated Product | : | No = not regulated by DOT |
| EU RoHS Compliance | : | Pass 2011/65/EU |
| EU RoHS Compliant | : | Yes |
| SDS Safety Data Sheet required | : | No = MSDS/SDS is not required |
- Banding each end of a pipe marker with directional flow arrow tape is recommended
- Style 3C pipe markers measure 2-1/4 in. x 2-3/4 in. and fit pipe diameters less than 3/4 in.
- High gloss, durable, flexible vinyl with a permanent cold temperature pressure sensitive acrylic adhesive
- Good chemical, oil and water resistance
Specifications
Applications : Pipe and Valve Marking Brand Name : Brady® Color : White on Blue Compatible Surface Types : General Enables Industry Compliance : ANSI A13.1-2007 Finish : Gloss Language : English Pipe Marker Mounting Style : Self-Adhesive Pipe Marker Style : 3C Pre-Printed Areas on Label : Pipe Contents Primary Noun, Basic Function : Pipe Marker Printer and Label Applications : General Identification; Pipe Marker Quantity per Card or Sheet : 3 Reflective Type : Non-Reflective Self-Adhesive Pipe Marker Format : Die-Cut on Cards Text Legend : INSTRUMENT AIR Adhesive Type : Permanent Acrylic Brady Material Number : B-946 Indoor or Outdoor Use : Outdoor Use Label Properties : Aggressive Adhesive Labels; Permanent Adhesive Labels; Standard High Quality Labels Material : Vinyl Resistance Properties : Abrasion-Resistant; Chemical-Resistant SAP B-Number : B-946 Average Outdoor Durability : 8 to 10 Years Character Height (in/ft/yd) : 0.5 in Character Height (mm/cm/m) : 12.7 mm Dimensions : 2.25 in H x 2.75 in W Dimensions (Metric) : 57.2 mm H Dimensions 2 : 2.25 in H x 2.75 in W Height (in/ft/yd) : 2.25 in Height (mm/cm/m) : 57.2 mm Maximum Outside Pipe Diameter (in/ft/yd) : 0.75 in Maximum Outside Pipe Diameter (mm/cm/m) : 19.05 mm Maximum Service Temperature °C : 82 °C Maximum Service Temperature °F : 180 °F Minimum Application Temperature °C : -18 °C Minimum Application Temperature °F : 0 °F Minimum Service Temperature °C : -40 °C Minimum Service Temperature °F : -40 °F Overall Size : Fits Pipes 0.75in Dia. or smaller Sign Size-General : 2.25 in x 2.75 in Size : 3C Thickness (in/ft/yd) : 0.004 in Thickness (mm/cm/m) : 0.102 mm Width (in/ft/yd) : 2.75 in Width (mm/cm/m) : 69.85 mm Regulatory Information
Contains CA PROP 65 Substance : No - Does not contain Contains CA PROP 65 Substance : No Contains Heavy Metal(s) : No - Does not contain DOT Regulated Product : No = not regulated by DOT EU RoHS Compliance : Pass 2011/65/EU EU RoHS Compliant : Yes SDS Safety Data Sheet required : No = MSDS/SDS is not required - Downloads
Spec Sheet
