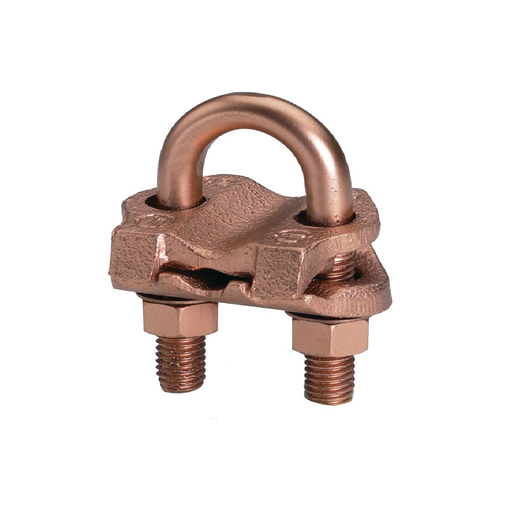

Mechanical Grounding Connector, Cable to Rod or Pipe, 4 AWG (Sol)-2/0 AWG (Str), 3/8" Pipe, 5/8"-3/4" Rod, #5-#6 Rebar, Bright Dipped
MFG #GAR6426
$91.20 / E
EACH
EACH
Product Description:
Mechanical Grounding Connector, Cable to Rod or Pipe, 4 AWG (Sol)-2/0 AWG (Str), 3/8" Pipe, 5/8"-3/4" Rod, #5-#6 Rebar, Bright Dipped. Silicon bronze hardware.
HESCO Part Number
BURGAR6426
UPC
781810238202
Manufacturer Part Number
GAR6426
Manufacturer
Burndy
Mechanical Grounding Connector, Cable to Rod or Pipe, 4 AWG (Sol)-2/0 AWG (Str), 3/8" Pipe, 5/8"-3/4" Rod, #5-#6 Rebar, Bright Dipped
MFG #GAR6426
Product Description:
Mechanical Grounding Connector, Cable to Rod or Pipe, 4 AWG (Sol)-2/0 AWG (Str), 3/8" Pipe, 5/8"-3/4" Rod, #5-#6 Rebar, Bright Dipped. Silicon bronze hardware.
HESCO Part Number
BURGAR6426
UPC
781810238202
Manufacturer Part Number
GAR6426
Manufacturer
Burndy
$91.20 / E
EACH
EACH
- Features
- Specifications
- Resources
- Wire to Rebar
- Fence Post Grounding Connector
- Wire to Pipe
- One-wrench installation
- Rated for Direct Burial in earth or concrete
- UL467 Listed for US and Canadian Markets
- Select connectors qualified to IEEE-837-2014
Certifications
| CSA Approved | : | No |
| cULus | : | No |
| ETL | : | No |
| UL Listed Direct Burial | : | Yes |
| UL Recognized | : | No |
| EU RoHS Indicator | : | Yes |
Specifications | ||
| Buy American Compliant | : | No |
| Standard | : | UL467 |
| ARRA Compliant | : | No |
| Description - Invoice | : | 4-2/0CU 3/8IPS |
| Stock Indicator | : | N - Non-stock |
| Package Height | : | 4.50 in |
| Package Length | : | 7.06 in |
| Package Width | : | 6.13 in |
| Conductor - Copper Solid Size | : | 4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG |
| Conductor - Copper Solid Size Range | : | 4 AWG-2/0 AWG |
| Conductor - Copper Str Size | : | 5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG |
| Conductor - Copper Str Size Range | : | 5 AWG-2/0 AWG |
| Conductor - Copper Tube Std Size | : | 3/8 IPS IPS |
| Conductor - Copper Tube Std Size Range | : | 3/8 IPS IPS |
| Conductor - Pipe or Round Tube Size | : | 3/8 in |
| Conductor - Rebar Size | : | 5 ;6 |
| Conductor - Rebar Size Range | : | 5 -6 |
| Conductor - Rod Size | : | 0.625in - 0.75in |
| Conductor - Rod Size Range | : | 5/8 in-3/4 in |
| Country of Origin | : | MX |
| Dimension - B Length inch | : | 1.50 in |
| Dimension - Height fraction | : | 2-7/8 in |
| Dimension - Height inch | : | 2.88 in |
| Dimension - L Length Overall mm | : | 40 mm |
| Dimension - Length Overall inch | : | 1.56 in |
| Dimension - Outside Diameter inch | : | 0.68 in |
| Dimension - Width fraction | : | 2-1/8 in |
| Dimension - Width inch | : | 2.06 in |
| Dimension - Width mm | : | 52 mm |
| Width | : | 1.500 in |
| Each - Width | : | 1.500 in |
| Industry Standard(s) | : | UL467 |
| Installation Torque Recommended in-lb | : | 240 lb-in |
| Plated | : | N |
| Plating Type | : | Bright Dipped |
| Product Type | : | Mechanical |
| Standards - Industry Standards Met | : | UL467 |
| Standards - RoHS Compliance Status | : | EX |
| U Bolt Type | : | 269 |
| Sub Brand | : | MECHANICAL CONNECTOR |
| Application | : | For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post |
| Conductor Type | : | CU C Solid-Size;CU C Str-Size;CU Tube Std-Size;Rod-Size |
| Type | : | GAR |
| Certification Agency | : | Proposition 65 |
| Class Code | : | B41 |
| Freight Class Code | : | 16027000 |
| Harmonization Code | : | 8535909999 |
| Image Actual Or Representative | : | A |
| Lead Time | : | 10 wk |
| MSDS Flag | : | No |
| Order Multiple | : | 1 EA |
| Sub Class Code | : | B41BD1F |
| UL Listed | : | Yes |
| Material | : | Copper Alloy |
| Material - Hardware | : | DURIUM™ Silicon Bronze |
| Base Unit of Measure | : | EA |
| BOX SIZE | : | 4.700x7.300x8.900 (in) |
| Carton - Gross Weight per Pack | : | 0.000 lb. |
| Carton - Number of Sub Packs | : | 25 |
| Carton - Pack Description | : | Carton |
| Carton - SCC-14 Next Lower Level Sub Pack | : | 00781810238202 |
| Carton - Total Units | : | 25 |
| Case - SCC-14 Next Lower Level Sub Pack | : | 30781810238203 |
| Each - Number of Sub Packs | : | 1 |
| Each - Pack Description | : | Each |
| Lowest Level UOM | : | Each |
| Package - Gross Weight per Pack | : | 14.7 lb. |
| Package - GTIN - Package | : | 30781810238203 |
| Package - Number of Sub Packs | : | 25 |
| Package - Pack Description | : | Package |
| Package - SCC-14 Next Lower Level Sub Pack | : | 00781810238202 |
| Package - Total Units | : | 25 EA |
| Package Quantity | : | 25 EA |
| Package Weight | : | 0.000 lb. |
| Pallet - GTIN - Package | : | 70781810238201 |
| Pallet Height | : | 51.700 in |
| Pallet Length | : | 48.000 in |
| Pallet Weight | : | 4042.500 lb. |
| Pallet Width | : | 48.000 in |
| Standard Package Quantity | : | 25 |
- Wire to Rebar
- Fence Post Grounding Connector
- Wire to Pipe
- One-wrench installation
- Rated for Direct Burial in earth or concrete
- UL467 Listed for US and Canadian Markets
- Select connectors qualified to IEEE-837-2014
Certifications
CSA Approved : No cULus : No ETL : No UL Listed Direct Burial : Yes UL Recognized : No EU RoHS Indicator : Yes Specifications
Buy American Compliant : No Standard : UL467 ARRA Compliant : No Description - Invoice : 4-2/0CU 3/8IPS Stock Indicator : N - Non-stock Package Height : 4.50 in Package Length : 7.06 in Package Width : 6.13 in Conductor - Copper Solid Size : 4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG Conductor - Copper Solid Size Range : 4 AWG-2/0 AWG Conductor - Copper Str Size : 5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG Conductor - Copper Str Size Range : 5 AWG-2/0 AWG Conductor - Copper Tube Std Size : 3/8 IPS IPS Conductor - Copper Tube Std Size Range : 3/8 IPS IPS Conductor - Pipe or Round Tube Size : 3/8 in Conductor - Rebar Size : 5 ;6 Conductor - Rebar Size Range : 5 -6 Conductor - Rod Size : 0.625in - 0.75in Conductor - Rod Size Range : 5/8 in-3/4 in Country of Origin : MX Dimension - B Length inch : 1.50 in Dimension - Height fraction : 2-7/8 in Dimension - Height inch : 2.88 in Dimension - L Length Overall mm : 40 mm Dimension - Length Overall inch : 1.56 in Dimension - Outside Diameter inch : 0.68 in Dimension - Width fraction : 2-1/8 in Dimension - Width inch : 2.06 in Dimension - Width mm : 52 mm Width : 1.500 in Each - Width : 1.500 in Industry Standard(s) : UL467 Installation Torque Recommended in-lb : 240 lb-in Plated : N Plating Type : Bright Dipped Product Type : Mechanical Standards - Industry Standards Met : UL467 Standards - RoHS Compliance Status : EX U Bolt Type : 269 Sub Brand : MECHANICAL CONNECTOR Application : For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post Conductor Type : CU C Solid-Size;CU C Str-Size;CU Tube Std-Size;Rod-Size Type : GAR Certification Agency : Proposition 65 Class Code : B41 Freight Class Code : 16027000 Harmonization Code : 8535909999 Image Actual Or Representative : A Lead Time : 10 wk MSDS Flag : No Order Multiple : 1 EA Sub Class Code : B41BD1F UL Listed : Yes Material : Copper Alloy Material - Hardware : DURIUM™ Silicon Bronze Base Unit of Measure : EA BOX SIZE : 4.700x7.300x8.900 (in) Carton - Gross Weight per Pack : 0.000 lb. Carton - Number of Sub Packs : 25 Carton - Pack Description : Carton Carton - SCC-14 Next Lower Level Sub Pack : 00781810238202 Carton - Total Units : 25 Case - SCC-14 Next Lower Level Sub Pack : 30781810238203 Each - Number of Sub Packs : 1 Each - Pack Description : Each Lowest Level UOM : Each Package - Gross Weight per Pack : 14.7 lb. Package - GTIN - Package : 30781810238203 Package - Number of Sub Packs : 25 Package - Pack Description : Package Package - SCC-14 Next Lower Level Sub Pack : 00781810238202 Package - Total Units : 25 EA Package Quantity : 25 EA Package Weight : 0.000 lb. Pallet - GTIN - Package : 70781810238201 Pallet Height : 51.700 in Pallet Length : 48.000 in Pallet Weight : 4042.500 lb. Pallet Width : 48.000 in Standard Package Quantity : 25 - Downloads
