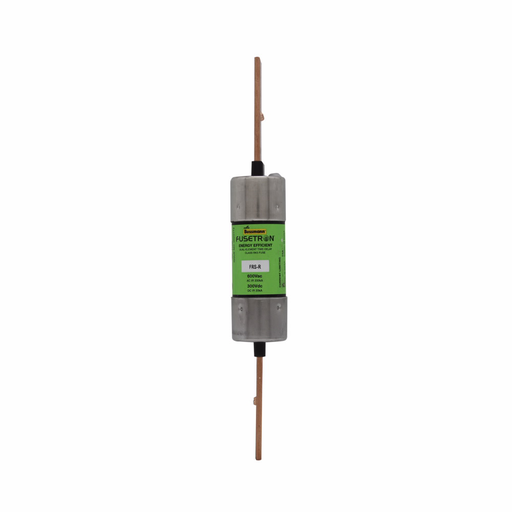

Eaton Bussmann series FRS-R fuse, 100 A, Dual, Class RK5, Non-indicating, Blade end x blade end, 10 sec at 500%, 20 kAIC at 300 Vdc,200 kAIC at 600 V, Standard, 600 V, 300 Vdc
MFG #FRS-R-100
$120.25Â /Â E
EACH
EACH
HESCO Part Number
BUSFRSR100
UPC
051712508438
Manufacturer Part Number
FRS-R-100
Manufacturer
Bussmann
Eaton Bussmann series FRS-R fuse, 100 A, Dual, Class RK5, Non-indicating, Blade end x blade end, 10 sec at 500%, 20 kAIC at 300 Vdc,200 kAIC at 600 V, Standard, 600 V, 300 Vdc
MFG #FRS-R-100
HESCO Part Number
BUSFRSR100
UPC
051712508438
Manufacturer Part Number
FRS-R-100
Manufacturer
Bussmann
$120.25Â /Â E
EACH
EACH
- Specifications
- Resources
General
| UPC | :Â Â | 051712508438 |
| Product Length/Depth | :Â Â | 5 in |
| Product Height | :Â Â | .81 in |
| Product Width | :Â Â | .81 in |
| Product Weight | :Â Â | .4 lb |
| Warranty | :Â Â | Not Applicable |
| Compliances | :Â Â | CE Marked |
Electrical Rating | ||
| Amperage Rating | :Â Â | 100 A |
| Interrupt rating | :Â Â | 200 kAIC at 600 Vac |
| Response time | :Â Â | 10 sec at 500% |
| Voltage rating | :Â Â | 600 Vac, 300 Vdc |
General Information | ||
| Class | :Â Â | Class RK5 |
| Connection | :Â Â | Blade end x blade end |
| Fuse indicator | :Â Â | Non-indicating |
Physical Details | ||
| Number of elements | :Â Â | Dual |
| Packaging type | :Â Â | Standard |
General
UPC :Â Â 051712508438 Product Length/Depth :Â Â 5 in Product Height :Â Â .81 in Product Width :Â Â .81 in Product Weight :Â Â .4 lb Warranty :Â Â Not Applicable Compliances :Â Â CE Marked Electrical Rating
Amperage Rating :Â Â 100 A Interrupt rating :Â Â 200 kAIC at 600 Vac Response time :Â Â 10 sec at 500% Voltage rating :Â Â 600 Vac, 300 Vdc General Information
Class :Â Â Class RK5 Connection :Â Â Blade end x blade end Fuse indicator :Â Â Non-indicating Physical Details
Number of elements :Â Â Dual Packaging type :Â Â Standard - Technical Data Sheets
Frs-R-100~Fusetron Dual Element Fuse Class Rk5
