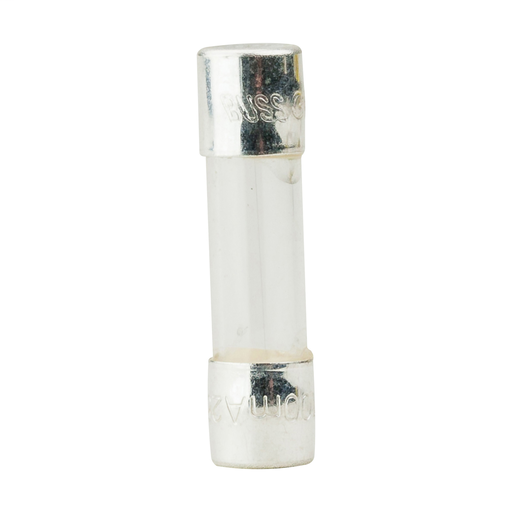

Fast-Acting Fuse
MFG #GMA-125-R
$2.66Â /Â E
(Must order in increments of 5/E)
(Must order in increments of 5/E)
HESCO Part Number
BUSGMA125R
UPC
051712647861
Manufacturer Part Number
GMA-125-R
Manufacturer
Bussmann
Fast-Acting Fuse
MFG #GMA-125-R
HESCO Part Number
BUSGMA125R
UPC
051712647861
Manufacturer Part Number
GMA-125-R
Manufacturer
Bussmann
$2.66Â /Â E
(Must order in increments of 5/E)
(Must order in increments of 5/E)
- Features
- Specifications
- CE Marked
- RoHS Compliant
Specifications
| Type | :Â Â | Electronic- small dimension |
| Application | :Â Â | Electronic circuits |
| Amperage Rating | :Â Â | 125A |
| Voltage Rating | :Â Â | 32 Vdc (self certified) |
| Fuse Indicator | :Â Â | Non Indicating |
| Packaging Type | :Â Â | Standard |
| Response Time | :Â Â | 60 min maximum at 135%, 2 min maximum at 200% |
| Material | :Â Â | Glass tube, nickel-plated brass endcaps |
| Connection | :Â Â | Ferrule end X ferrule end |
| Height | :Â Â | .788 IN |
| Length | :Â Â | .25 IN |
| Width | :Â Â | .197 IN |
| Weight | :Â Â | .005 LB |
- CE Marked
- RoHS Compliant
Specifications
Type :Â Â Electronic- small dimension Application :Â Â Electronic circuits Amperage Rating :Â Â 125A Voltage Rating :Â Â 32 Vdc (self certified) Fuse Indicator :Â Â Non Indicating Packaging Type :Â Â Standard Response Time :Â Â 60 min maximum at 135%, 2 min maximum at 200% Material :Â Â Glass tube, nickel-plated brass endcaps Connection :Â Â Ferrule end X ferrule end Height :Â Â .788 IN Length :Â Â .25 IN Width :Â Â .197 IN Weight :Â Â .005 LB
