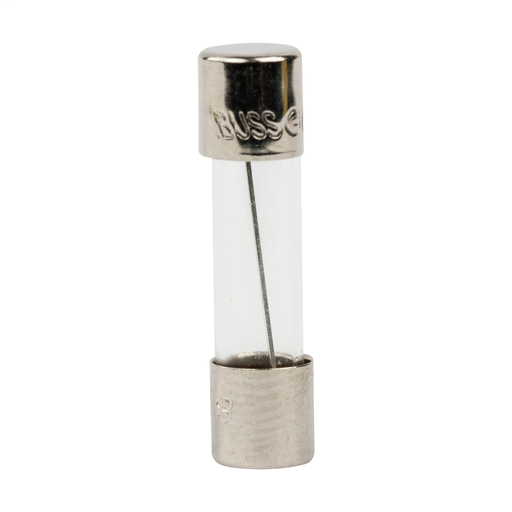

Time-Delay Fuse
MFG #GMD-1-R
$4.82Â /Â E
(Must order in increments of 5/E)
(Must order in increments of 5/E)
HESCO Part Number
BUSGMD1R
UPC
051712657839
Manufacturer Part Number
GMD-1-R
Manufacturer
Bussmann
Time-Delay Fuse
MFG #GMD-1-R
HESCO Part Number
BUSGMD1R
UPC
051712657839
Manufacturer Part Number
GMD-1-R
Manufacturer
Bussmann
$4.82Â /Â E
(Must order in increments of 5/E)
(Must order in increments of 5/E)
- Features
- Specifications
- RoHS Compliant
- CE Marked
Specifications
| Type | :Â Â | Electronic- small dimension |
| Application | :Â Â | Electronic circuits |
| Amperage Rating | :Â Â | 1A |
| Voltage Rating | :Â Â | 250 Vac, 32 Vdc (self certified) |
| Interrupt Rating | :Â Â | 35A at 250 Vac (p.f.=.7-.8), 10 kAIC at 125 Vac (p.f.= 1.0) |
| Fuse Indicator | :Â Â | Non Indicating |
| Packaging Type | :Â Â | Standard |
| Response Time | :Â Â | 60 min maximum at 135%, 5 s minimum at 200%, 2 min maximum at 200% |
| Material | :Â Â | Glass tube, nickel-plated brass endcaps |
| Connection | :Â Â | Ferrule end X ferrule end |
| Height | :Â Â | .25 IN |
| Length | :Â Â | .625 IN |
| Width | :Â Â | .25 IN |
| Weight | :Â Â | .002 LB |
- RoHS Compliant
- CE Marked
Specifications
Type :Â Â Electronic- small dimension Application :Â Â Electronic circuits Amperage Rating :Â Â 1A Voltage Rating :Â Â 250 Vac, 32 Vdc (self certified) Interrupt Rating :Â Â 35A at 250 Vac (p.f.=.7-.8), 10 kAIC at 125 Vac (p.f.= 1.0) Fuse Indicator :Â Â Non Indicating Packaging Type :Â Â Standard Response Time :Â Â 60 min maximum at 135%, 5 s minimum at 200%, 2 min maximum at 200% Material :Â Â Glass tube, nickel-plated brass endcaps Connection :Â Â Ferrule end X ferrule end Height :Â Â .25 IN Length :Â Â .625 IN Width :Â Â .25 IN Weight :Â Â .002 LB
