E-FLEX 211034 CBLA 11 BLUE 1/2" 500
MFG #211034
Requires Quote
/ FEET
Product Description:

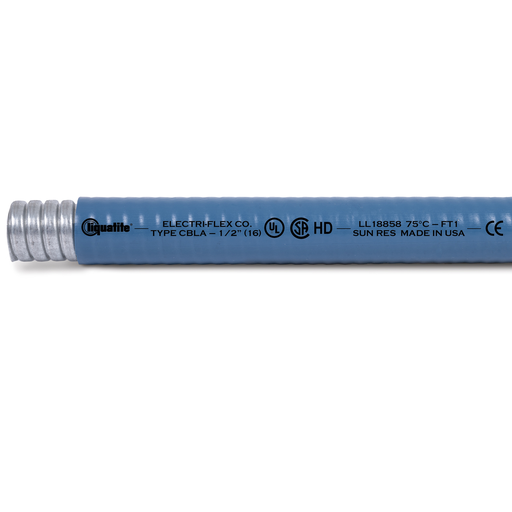

CBLA 11 BLUE 1/2" 500'REEL Computer Blue LA (CBLA) is a liquidtight flexible steel conduit commonly used for computer room installations. The blue jacket color easily identifies circuitry for computer power wiring. It is listed by Underwriters Laboratories Inc. and certified by Canadian Standards Association for “Heavy-Duty” applications.
HESCO Part Number
ELF211034
UPC
782673001774
Manufacturer Part Number
211034
Manufacturer
Electri-Flex
E-FLEX 211034 CBLA 11 BLUE 1/2" 500
MFG #211034
Product Description:
CBLA 11 BLUE 1/2" 500'REEL Computer Blue LA (CBLA) is a liquidtight flexible steel conduit commonly used for computer room installations. The blue jacket color easily identifies circuitry for computer power wiring. It is listed by Underwriters Laboratories Inc. and certified by Canadian Standards Association for “Heavy-Duty” applications.
HESCO Part Number
ELF211034
UPC
782673001774
Manufacturer Part Number
211034
Manufacturer
Electri-Flex
Requires Quote
/ FEET
- Features
- Specifications
- Resources
- This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
- Inner core is made of hot dipped galvanized steel.
- The Electri-Flex Company manufactures its products to the specifications and standards as described in the most current ElectriFlex catalog and it guarantees them to be free from defects in materials and workmanship. Electri-Flex will, in the case of product claim, be liable for only the price of the goods purchased. Remedies with respect to products sold by Electri-Flex will be limited only to the right of replacement, or to repayment of user’s price of its product.
- ARRA Compliant
- Liquidtight jacket is made of flexible blue PVC.
- BAA Compliant
- Resistant to oils and mild acids.
- PROP65
- Flame retardant. Sunlight resistant (UV).
- UL
- Marked HD for “Heavy-Duty”
- CSA
- This conduit is intended for installation in accordance with Article 350 of the NEC (ANSI/NFPA-70)
- CE
- Permitted for use in exposed or concealed locations.
- E29278
- Installed under raised floors in Data Processing Areas. Article 645.5(E)
- LL18858 C22.2 No 56-17
- BS EN IEC 61386 Classification Code 444240650414
- EU RoHS Indicator
Specifications
| Country of Origin | : | United States |
| Standard Colors | : | Computer Blue |
| Working Temperatures | : | -30°C to 80°C Dry / 60°C Wet / 70°C Oil |
| Type | : | CBLA |
| Color | : | Blue |
| Length | : | 500 ft. |
| Material | : | Steel |
| Trade Size | : | 1/2 in. |
| Inside Bend Radius | : | 3 in. |
| Inside Diameter Minimum | : | 0.622 in. |
| Outside Diameter Maximum | : | .840 in. |
| Inside Diameter Maximum | : | 0.642 in. |
| Weight | : | 32 lbs./100ft |
| Outside Diameter Minimum | : | .820 in. |
- This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
- Inner core is made of hot dipped galvanized steel.
- The Electri-Flex Company manufactures its products to the specifications and standards as described in the most current ElectriFlex catalog and it guarantees them to be free from defects in materials and workmanship. Electri-Flex will, in the case of product claim, be liable for only the price of the goods purchased. Remedies with respect to products sold by Electri-Flex will be limited only to the right of replacement, or to repayment of user’s price of its product.
- ARRA Compliant
- Liquidtight jacket is made of flexible blue PVC.
- BAA Compliant
- Resistant to oils and mild acids.
- PROP65
- Flame retardant. Sunlight resistant (UV).
- UL
- Marked HD for “Heavy-Duty”
- CSA
- This conduit is intended for installation in accordance with Article 350 of the NEC (ANSI/NFPA-70)
- CE
- Permitted for use in exposed or concealed locations.
- E29278
- Installed under raised floors in Data Processing Areas. Article 645.5(E)
- LL18858 C22.2 No 56-17
- BS EN IEC 61386 Classification Code 444240650414
- EU RoHS Indicator
Specifications
Country of Origin : United States Standard Colors : Computer Blue Working Temperatures : -30°C to 80°C Dry / 60°C Wet / 70°C Oil Type : CBLA Color : Blue Length : 500 ft. Material : Steel Trade Size : 1/2 in. Inside Bend Radius : 3 in. Inside Diameter Minimum : 0.622 in. Outside Diameter Maximum : .840 in. Inside Diameter Maximum : 0.642 in. Weight : 32 lbs./100ft Outside Diameter Minimum : .820 in. - Downloads
Specification SheetBrochureMaterial Comp DeclarationWarranty
