E-FLEX 74104 CSA 14 BLACK1-1/4IN.20
MFG #74104
Requires Quote
/ FEET
Product Description:

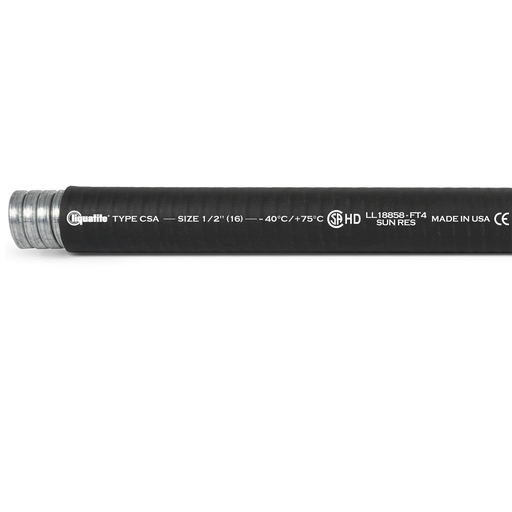

CSA 14 BLACK1-1/4IN.200FT.REEL This flexible liquidtight steel conduit is certified by the Canadian Standards Association for “Heavy-Duty” applications. Its design and function is similar to that of type LA, except that it cannot be used as a ground return path per the Canadian code.
HESCO Part Number
ELF74104
UPC
782673741045
Manufacturer Part Number
74104
Manufacturer
Electri-Flex
E-FLEX 74104 CSA 14 BLACK1-1/4IN.20
MFG #74104
Product Description:
CSA 14 BLACK1-1/4IN.200FT.REEL This flexible liquidtight steel conduit is certified by the Canadian Standards Association for “Heavy-Duty” applications. Its design and function is similar to that of type LA, except that it cannot be used as a ground return path per the Canadian code.
HESCO Part Number
ELF74104
UPC
782673741045
Manufacturer Part Number
74104
Manufacturer
Electri-Flex
Requires Quote
/ FEET
- Features
- Specifications
- Resources
- The Electri-Flex Company manufactures its products to the specifications and standards as described in the most current ElectriFlex catalog and it guarantees them to be free from defects in materials and workmanship. Electri-Flex will, in the case of product claim, be liable for only the price of the goods purchased. Remedies with respect to products sold by Electri-Flex will be limited only to the right of replacement, or to repayment of user’s price of its product.
- This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
- Inner core is made of hot dipped galvanized steel.
- ARRA Compliant
- Liquidtight jacket is made of flexible PVC.
- BAA Compliant
- Resistant to oils and mild acids.
- PROP65
- FT-4 flame retardant.
- CSA
- Sunlight resistant (UV).
- CE
- Marked HD for “Heavy-Duty”
- LL18858 C22.2 No 56-17, C22.2 No 0.3
- BS EN IEC 61386 Classification Code 445240650414
- EU RoHS Indicator
Specifications
| Country of Origin | : | United States |
| Standard Colors | : | Black |
| Working Temperatures | : | -40°C to 75°C |
| Type | : | CSA |
| Color | : | Black |
| Length | : | 200 ft. |
| Material | : | Steel |
| Trade Size | : | 1-1/4 in. |
| Inside Diameter Maximum | : | 1.41 in. |
| Inside Diameter Minimum | : | 1.38 in. |
| Outside Diameter Minimum | : | 1.630 in. |
| Weight | : | 86 lbs./100ft |
| Outside Diameter Maximum | : | 1.660 in. |
| Inside Bend Radius | : | 6.2 in. |
- The Electri-Flex Company manufactures its products to the specifications and standards as described in the most current ElectriFlex catalog and it guarantees them to be free from defects in materials and workmanship. Electri-Flex will, in the case of product claim, be liable for only the price of the goods purchased. Remedies with respect to products sold by Electri-Flex will be limited only to the right of replacement, or to repayment of user’s price of its product.
- This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation.
- Inner core is made of hot dipped galvanized steel.
- ARRA Compliant
- Liquidtight jacket is made of flexible PVC.
- BAA Compliant
- Resistant to oils and mild acids.
- PROP65
- FT-4 flame retardant.
- CSA
- Sunlight resistant (UV).
- CE
- Marked HD for “Heavy-Duty”
- LL18858 C22.2 No 56-17, C22.2 No 0.3
- BS EN IEC 61386 Classification Code 445240650414
- EU RoHS Indicator
Specifications
Country of Origin : United States Standard Colors : Black Working Temperatures : -40°C to 75°C Type : CSA Color : Black Length : 200 ft. Material : Steel Trade Size : 1-1/4 in. Inside Diameter Maximum : 1.41 in. Inside Diameter Minimum : 1.38 in. Outside Diameter Minimum : 1.630 in. Weight : 86 lbs./100ft Outside Diameter Maximum : 1.660 in. Inside Bend Radius : 6.2 in. - Downloads
Specification SheetBrochureMaterial Comp DeclarationWarranty
