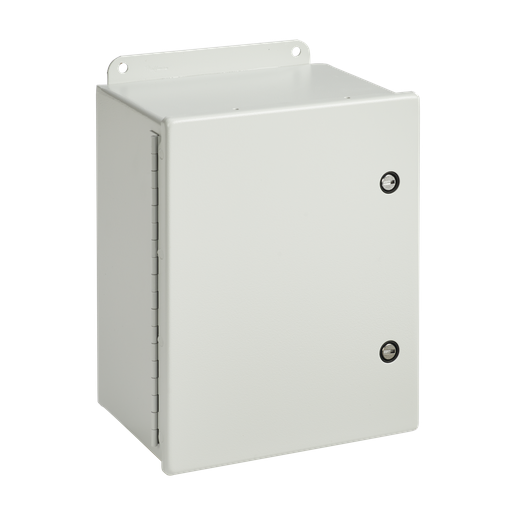

Continuous Hinge with 1/4-Turn Latch Type 4, 10.00x8.00x4.00, Gray, Steel
MFG #A1008CHFL
$193.00Â /Â E
EACH
EACH
Product Description:
Type 4, 1/4-Turn Latch, Junction Boxes are ideal for housing and protecting electrical connections. This Continuous Hinge with 1/4-Turn Latch Type 4, A1008CHFL item measures 10.00x8.00x4.00 inches with a material of Steel colored Gray.
HESCO Part Number
HFA1008CHFL
UPC
783510148812
Manufacturer Part Number
A1008CHFL
Manufacturer
Hoffman
Continuous Hinge with 1/4-Turn Latch Type 4, 10.00x8.00x4.00, Gray, Steel
MFG #A1008CHFL
Product Description:
Type 4, 1/4-Turn Latch, Junction Boxes are ideal for housing and protecting electrical connections. This Continuous Hinge with 1/4-Turn Latch Type 4, A1008CHFL item measures 10.00x8.00x4.00 inches with a material of Steel colored Gray.
HESCO Part Number
HFA1008CHFL
UPC
783510148812
Manufacturer Part Number
A1008CHFL
Manufacturer
Hoffman
$193.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Seams continuously welded and ground smooth
- Continuous hinge
- Bonding provision on door
- External welded-on mounting brackets for easy installation
- Oil-resistant gasket
- Quarter-turn slotted latches
- Seamless foam-in-place gasket
- Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
Specifications
| Height (H) | :Â Â | 254 |
| Width (W) | :Â Â | 203 |
| Depth (D) | :Â Â | 102 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Finish | :Â Â | Powder Coated |
| Color Code | :Â Â | RAL 7035 |
| Thickness (T) | :Â Â | 1.9 |
| Mounting (G x H) | :Â Â | 273 x 152 |
| Overall Dimensions (L x W) | :Â Â | 292 x 214 |
| Latch Quantity | :Â Â | 2 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 4 |
| IP Rating | :Â Â | IP66 |
| Weight | :Â Â | 8 |
| Material | :Â Â | Steel |
| Size | :Â Â | 10.00x8.00x4.00 in |
| Color | :Â Â | Gray |
| NEMA Rating | :Â Â | 12 Indoor, dust-resistant |
- Seams continuously welded and ground smooth
- Continuous hinge
- Bonding provision on door
- External welded-on mounting brackets for easy installation
- Oil-resistant gasket
- Quarter-turn slotted latches
- Seamless foam-in-place gasket
- Weldnuts provided for mounting optional panels and terminal block kits in size 6.00 x 4.00 in. (152 x 102 mm) and larger
Specifications
Height (H) :Â Â 254 Width (W) :Â Â 203 Depth (D) :Â Â 102 Protection Rating :Â Â NEMA Type 12 Finish :Â Â Powder Coated Color Code :Â Â RAL 7035 Thickness (T) :Â Â 1.9 Mounting (G x H) :Â Â 273 x 152 Overall Dimensions (L x W) :Â Â 292 x 214 Latch Quantity :Â Â 2 Modification Services :Â Â Yes Type Number :Â Â Type 4 IP Rating :Â Â IP66 Weight :Â Â 8 Material :Â Â Steel Size :Â Â 10.00x8.00x4.00 in Color :Â Â Gray NEMA Rating :Â Â 12 Indoor, dust-resistant - Certificate
Certificate - CE-00035 - NAM-USCertificate - CERT-00091 - NAM-US
DownloadsSpec Sheet
Data SheetData Sheet - Spec-00137 - NAM-CAData Sheet - Spec-00758 - NAM-USData Sheet - Spec-01279 - NAM-CA
Instruction ManualInstruction Manual - 23155002 - NAM-USInstruction Manual - 93217001 - NAM-US
