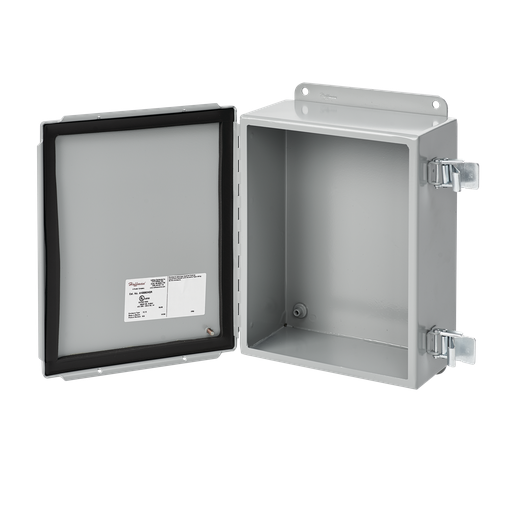

Continuous Hinge Enclosure Quick-Release Latch Type 12, 12x10x5, Gray, Mild Steel
MFG #A1210CHQR
$200.00Â /Â E
EACH
EACH
Product Description:
Type 12, QR Latch, Junction Boxes provide fast access and are ideal for housing electrical connections. This Continuous Hinge Enclosure Quick-Release Latch Type 12, A1210CHQR item measures 12x10x5 inch with a material of Steel colored Gray.
HESCO Part Number
HFA1210CHQR
UPC
783510568702
Manufacturer Part Number
A1210CHQR
Manufacturer
Hoffman
Continuous Hinge Enclosure Quick-Release Latch Type 12, 12x10x5, Gray, Mild Steel
MFG #A1210CHQR
Product Description:
Type 12, QR Latch, Junction Boxes provide fast access and are ideal for housing electrical connections. This Continuous Hinge Enclosure Quick-Release Latch Type 12, A1210CHQR item measures 12x10x5 inch with a material of Steel colored Gray.
HESCO Part Number
HFA1210CHQR
UPC
783510568702
Manufacturer Part Number
A1210CHQR
Manufacturer
Hoffman
$200.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Seams continuously welded and ground smooth
- Continuous hinge
- Bonding provision on door
- Quick-release latches
- External welded-on mounting brackets for easy installation
- Oil-resistant gasket
- Weldnuts provided for mounting optional panels and terminal block kits
Specifications
| Height (H) | :Â Â | 305 |
| Width (W) | :Â Â | 254 |
| Depth (D) | :Â Â | 127 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Finish | :Â Â | Powder Coated |
| Color Code | :Â Â | ANSI 61 |
| Thickness (T) | :Â Â | 1.9 |
| Panel | :Â Â | A12P10 |
| Conductive Panel | :Â Â | A12P10G |
| Panel Size (D x E) | :Â Â | 273 x 226 |
| Mounting (G x H) | :Â Â | 324 x 203 |
| Overall Dimensions (L x W) | :Â Â | 343 x 275 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 13 |
| IP Rating | :Â Â | IP65 |
| NEMA Rating | :Â Â | 12 Indoor, dust-resistant |
| Weight | :Â Â | 11.2 |
| Material | :Â Â | Steel |
| Size | :Â Â | 12.00x10.00x5.00 in |
| Color | :Â Â | Gray |
- Seams continuously welded and ground smooth
- Continuous hinge
- Bonding provision on door
- Quick-release latches
- External welded-on mounting brackets for easy installation
- Oil-resistant gasket
- Weldnuts provided for mounting optional panels and terminal block kits
Specifications
Height (H) :Â Â 305 Width (W) :Â Â 254 Depth (D) :Â Â 127 Protection Rating :Â Â NEMA Type 12 Finish :Â Â Powder Coated Color Code :Â Â ANSI 61 Thickness (T) :Â Â 1.9 Panel :Â Â A12P10 Conductive Panel :Â Â A12P10G Panel Size (D x E) :Â Â 273 x 226 Mounting (G x H) :Â Â 324 x 203 Overall Dimensions (L x W) :Â Â 343 x 275 Modification Services :Â Â Yes Type Number :Â Â Type 13 IP Rating :Â Â IP65 NEMA Rating :Â Â 12 Indoor, dust-resistant Weight :Â Â 11.2 Material :Â Â Steel Size :Â Â 12.00x10.00x5.00 in Color :Â Â Gray - Certificate
Certificate - CE-00028 - NAM-USCertificate - CERT-00087 - NAM-US
DownloadsSpec Sheet
Instruction ManualInstruction Manual - 23155002 - NAM-USInstruction Manual - 93217001 - NAM-US
Data SheetData Sheet - Spec-00274 - NAM-CAData Sheet - Spec-00761 - NAM-USData Sheet - Spec-01282 - NAM-CA
