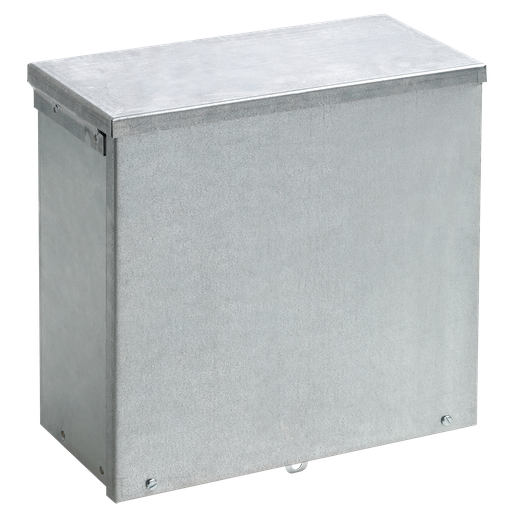

Screw-Cover With Knockouts Type 3R, 12.00x12.00x6.00, Galvanized, Steel
MFG #A12R126GV
$125.00Â /Â E
EACH
EACH
Product Description:
Drip-Shield Screw-Cover Type 3R is used as a wiring or junction box in outdoor applications. This Screw-Cover With Knockouts Type 3R, A12R126GV item measures 12.00x12.00x6.00 inches with a material of Steel finish Galvanized.
HESCO Part Number
HFA12R126GV
UPC
783510165475
Manufacturer Part Number
A12R126GV
Manufacturer
Hoffman
Screw-Cover With Knockouts Type 3R, 12.00x12.00x6.00, Galvanized, Steel
MFG #A12R126GV
Product Description:
Drip-Shield Screw-Cover Type 3R is used as a wiring or junction box in outdoor applications. This Screw-Cover With Knockouts Type 3R, A12R126GV item measures 12.00x12.00x6.00 inches with a material of Steel finish Galvanized.
HESCO Part Number
HFA12R126GV
UPC
783510165475
Manufacturer Part Number
A12R126GV
Manufacturer
Hoffman
$125.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
- Slip-on removable cover fastened with plated steel screws along bottom edge
- Door handles on larger sides (body style C; see table)
- Embossed mounting holes on back of enclosure
- See table for knockout pattern
- Provision for padlocking
Specifications
| Height (H) | :Â Â | 305 |
| Width (W) | :Â Â | 305 |
| Depth (D) | :Â Â | 152 |
| Protection Rating | :Â Â | NEMA Type 3R |
| Finish | :Â Â | Galvanized |
| Thickness (T) | :Â Â | 1.52 |
| NEMA Rating | :Â Â | 3R Weather-resistant, except dust |
| Mounting (H) | :Â Â | 27 |
| Knockout Pattern | :Â Â | C-D-E-F-G |
| Body Style | :Â Â | A |
| Mounting (J) | :Â Â | 1.06 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 3R |
| IP Rating | :Â Â | IP32 |
| Weight | :Â Â | 11 |
| Material | :Â Â | Steel |
| Size | :Â Â | 12.00x12.00x6.00 in |
| Knockouts | :Â Â | Yes |
- Drip shield top and seam-free sides, front, and back protect from rain, snow, or sleet
- Slip-on removable cover fastened with plated steel screws along bottom edge
- Door handles on larger sides (body style C; see table)
- Embossed mounting holes on back of enclosure
- See table for knockout pattern
- Provision for padlocking
Specifications
Height (H) :Â Â 305 Width (W) :Â Â 305 Depth (D) :Â Â 152 Protection Rating :Â Â NEMA Type 3R Finish :Â Â Galvanized Thickness (T) :Â Â 1.52 NEMA Rating :Â Â 3R Weather-resistant, except dust Mounting (H) :Â Â 27 Knockout Pattern :Â Â C-D-E-F-G Body Style :Â Â A Mounting (J) :Â Â 1.06 Modification Services :Â Â Yes Type Number :Â Â Type 3R IP Rating :Â Â IP32 Weight :Â Â 11 Material :Â Â Steel Size :Â Â 12.00x12.00x6.00 in Knockouts :Â Â Yes - Certificate
Certificate - CERT-00110 - NAM-USCertificate - CE-UKCA-00074_Accy-1-3R - NAM-US
Data SheetData Sheet - Spec-00211 - NAM-CA
DownloadsSpec Sheet
