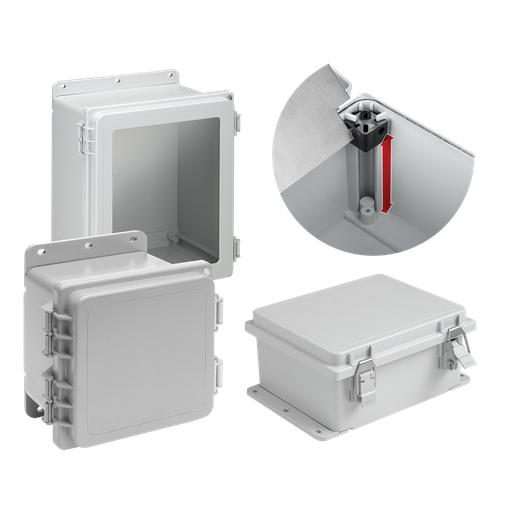

PolyPro Type 4X, 14.02x12.01x8.35, Polyester
MFG #A14128PHC
$219.00Â /Â E
EACH
EACH
Product Description:
PolyPro Polyester Enclosures are lightweight designed to withstand harsh, corrosive environments. This PolyPro Type 4X, A14128PHC item measures 14.02x12.01x8.35 inches with a material of Polyester.
HESCO Part Number
HFA14128PHC
UPC
783510170776
Manufacturer Part Number
A14128PHC
Manufacturer
Hoffman
PolyPro Type 4X, 14.02x12.01x8.35, Polyester
MFG #A14128PHC
Product Description:
PolyPro Polyester Enclosures are lightweight designed to withstand harsh, corrosive environments. This PolyPro Type 4X, A14128PHC item measures 14.02x12.01x8.35 inches with a material of Polyester.
HESCO Part Number
HFA14128PHC
UPC
783510170776
Manufacturer Part Number
A14128PHC
Manufacturer
Hoffman
$219.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Non-glass-filled polyester material offers superior UV resistance; eliminates fiberbloom associated with fiberglass
- Provides excellent chemical resistance to a broad range of solvents, alkalis and acids
- Resists cracking and provides excellent impact resistance
- Lighter-weight than fiberglass
- Recyclable
- Easy, dustless in-field modifications using standard tools
- Overlapping tongue-and-groove raised cover and gasket provide a secure Type 4X seal
- Removable snap-hinge cover allows for easy access to cover and body for modifications
- Molded layout grid on inside of body and solid covers assists with component mounting
- Molded-in embosses for rear panel mounting
- Optional cover screws included with all models
- Internal rail system and adjustable panel blocks allow for panel height adjustment and installation of multiple panels
- Scratch-resistant polycarbonate windows
- Standard models include body and cover, two mounting feet, two latch assemblies with optional cover screwscrews and hardware (adjustable panel blocks and panels sold separately)
Specifications
| Height (H) | :Â Â | 370 |
| Width (W) | :Â Â | 320 |
| Depth (D) | :Â Â | 212 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | PolyPro |
| Finish | :Â Â | Smooth Matte |
| Color | :Â Â | Light Gray |
| Color Code | :Â Â | RAL 7035 |
| Thickness (T) | :Â Â | 3.3 |
| Cover Style | :Â Â | Solid |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 13 |
| IP Rating | :Â Â | IP66 |
| NEMA Rating | :Â Â | 4X Watertight, corrosion-resistant |
| Weight | :Â Â | 8 |
| Sub Brand | :Â Â | PolyPro |
| Material | :Â Â | Polyester |
| Size | :Â Â | 14.02x12.01x8.35 in |
