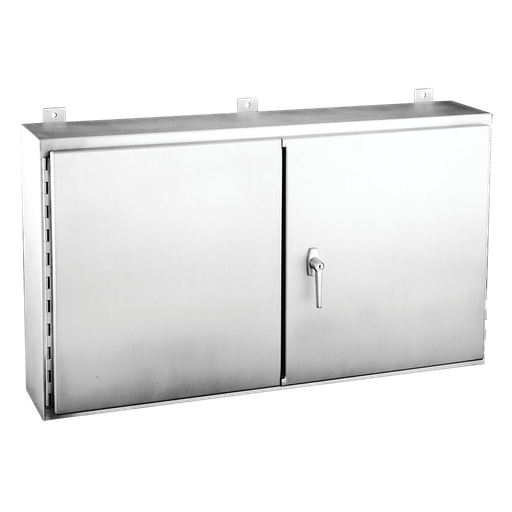

Wallmount 2-Door 3-Point Latch Type 12, 30x42x10, Brushed, SS 304
MFG #A304210WFSSLP
$6,359.00Â /Â E
EACH
EACH
Product Description:
Stainless Steel wallmount Type 12 Enclosures have 2 overlapping doors without a need for centerpost. This Wallmount 2-Door 3-Point Latch Type 12, A304210WFSSLP item measures 30x42x10 in. with a material of SS 304, Brushed.
HESCO Part Number
HFA304210WFSSLP
UPC
783510839802
Manufacturer Part Number
A304210WFSSLP
Manufacturer
Hoffman
Wallmount 2-Door 3-Point Latch Type 12, 30x42x10, Brushed, SS 304
MFG #A304210WFSSLP
Product Description:
Stainless Steel wallmount Type 12 Enclosures have 2 overlapping doors without a need for centerpost. This Wallmount 2-Door 3-Point Latch Type 12, A304210WFSSLP item measures 30x42x10 in. with a material of SS 304, Brushed.
HESCO Part Number
HFA304210WFSSLP
UPC
783510839802
Manufacturer Part Number
A304210WFSSLP
Manufacturer
Hoffman
$6,359.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- 3 Point latching mechanism for simple, reliable one-motion closure
- Seams continuously welded and ground smooth
- Rolled lip around all sides of enclosure body opening
- Gasketed overlapping doors eliminate need for centerpost
- External mounting brackets
- Plated steel 3-point latching mechanism and keylocking handle
- Easily removable doors by pulling heavy-gauge continuous hinge pin
- Data pocket is high-impact thermoplastic
- Collar studs provided for mounting optional panels
- Bonding provision on doors; grounding studs on body
Specifications
| Height (H) | :Â Â | 762 |
| Width (W) | :Â Â | 1,067 |
| Depth (D) | :Â Â | 254 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Finish | :Â Â | Brushed #4 |
| Thickness (T) | :Â Â | 2 |
| Panel Gauge | :Â Â | 12 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 12 |
| IP Rating | :Â Â | IP55 |
| NEMA Rating | :Â Â | 12 Indoor, dust-resistant |
| Weight | :Â Â | 101 |
| Material | :Â Â | Stainless Steel |
| Size | :Â Â | 30.00x42.00x10.00 in |
- 3 Point latching mechanism for simple, reliable one-motion closure
- Seams continuously welded and ground smooth
- Rolled lip around all sides of enclosure body opening
- Gasketed overlapping doors eliminate need for centerpost
- External mounting brackets
- Plated steel 3-point latching mechanism and keylocking handle
- Easily removable doors by pulling heavy-gauge continuous hinge pin
- Data pocket is high-impact thermoplastic
- Collar studs provided for mounting optional panels
- Bonding provision on doors; grounding studs on body
Specifications
Height (H) :Â Â 762 Width (W) :Â Â 1,067 Depth (D) :Â Â 254 Protection Rating :Â Â NEMA Type 12 Finish :Â Â Brushed #4 Thickness (T) :Â Â 2 Panel Gauge :Â Â 12 Modification Services :Â Â Yes Type Number :Â Â Type 12 IP Rating :Â Â IP55 NEMA Rating :Â Â 12 Indoor, dust-resistant Weight :Â Â 101 Material :Â Â Stainless Steel Size :Â Â 30.00x42.00x10.00 in - Downloads
Spec Sheet
CertificateCertificate - CERT-00036 - NAM-USCertificate - CE-UKCA-00014_Enclosure-Large-12 - NAM-US
Instruction ManualInstruction Manual - 99401640 - NAM-USInstruction Manual - 99401677 - NAM-US
Data SheetData Sheet - Spec-00375 - NAM-CA
