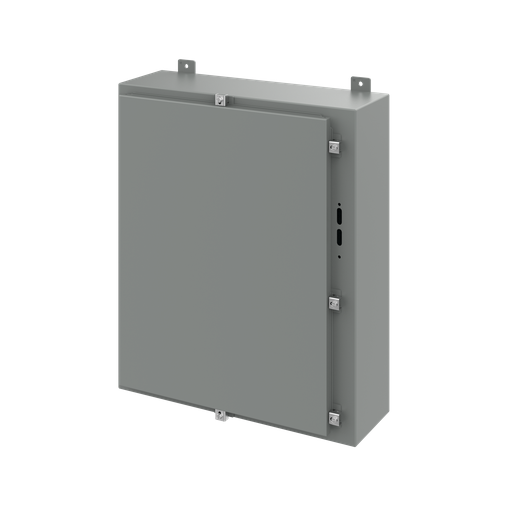

Disconnect Enclosure with Clamps Type 4, 30.00x25x8.00, Gray, Steel
MFG #A30HS2508LP
$1,264.00Â /Â E
EACH
EACH
Product Description:
Disconnect Enclosures provide extra level of visual ON/OFF indication clamped for additional security. This Disconnect Enclosure with Clamps Type 4, A30HS2508LP item measures 30.00x25x8.00 inches with a material of Steel colored Gray.
HESCO Part Number
HFA30HS2508LP
UPC
783510201302
Manufacturer Part Number
A30HS2508LP
Manufacturer
Hoffman
Disconnect Enclosure with Clamps Type 4, 30.00x25x8.00, Gray, Steel
MFG #A30HS2508LP
Product Description:
Disconnect Enclosures provide extra level of visual ON/OFF indication clamped for additional security. This Disconnect Enclosure with Clamps Type 4, A30HS2508LP item measures 30.00x25x8.00 inches with a material of Steel colored Gray.
HESCO Part Number
HFA30HS2508LP
UPC
783510201302
Manufacturer Part Number
A30HS2508LP
Manufacturer
Hoffman
$1,264.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Seams continuously welded and ground smooth
- External mounting brackets
- External-formed flange around all sides of enclosure opening
- Stainless steel door clamps on three sides of door
- Removable door with continuous hinge
- Type 4 rated door gasket
- Collar studs for mounting optional panels
- Holes in body for mounting disconnect operating handle and operating mechanism
- Bonding provision on door
- Adjustable door interlock bracket fastened to door) and instructions for installing disconnects
Specifications
| Height (H) | :Â Â | 762 |
| Width (W) | :Â Â | 645 |
| Depth (D) | :Â Â | 203 |
| Protection Rating | :Â Â | NEMA Type 4 |
| Finish | :Â Â | Powder Coated |
| Color Code | :Â Â | ANSI 61 |
| Thickness (T) | :Â Â | 1.9 |
| Clamp Quantity | :Â Â | 5 |
| Data Pocket Size (D x E) | :Â Â | 305 x 305 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 4 |
| IP Rating | :Â Â | IP66 |
| Weight | :Â Â | 45 |
| Material | :Â Â | Steel |
| Size | :Â Â | 30.00x25.38x8.00 in |
| Color | :Â Â | Gray |
| NEMA Rating | :Â Â | 4 Watertight |
