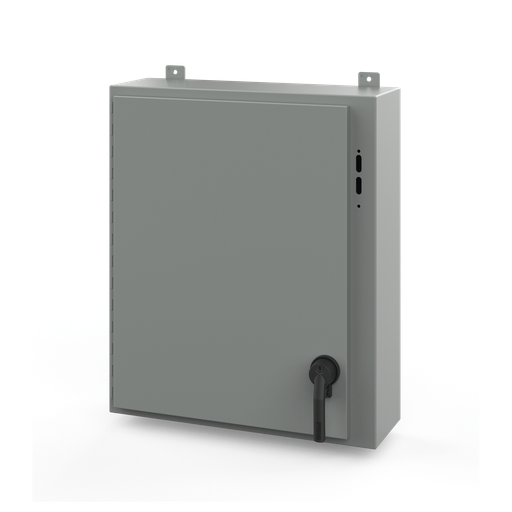

Disconnect Enclosure with Handle Type 12, 30.00x25.38x8.00, Gray, Steel
MFG #A30SA2608LPPL
$1,140.00Â /Â E
EACH
EACH
Product Description:
Disconnect Enclosures provide an extra level of visual ON or OFF indication with easy-access handle. This Disconnect Enclosure with Handle Type 12, A30SA2608LPPL item measures 30.00x25.38x8.00 inches with a material of Steel colored Gray.
HESCO Part Number
HFA30SA2608LPPL
UPC
783510403690
Manufacturer Part Number
A30SA2608LPPL
Manufacturer
Hoffman
Disconnect Enclosure with Handle Type 12, 30.00x25.38x8.00, Gray, Steel
MFG #A30SA2608LPPL
Product Description:
Disconnect Enclosures provide an extra level of visual ON or OFF indication with easy-access handle. This Disconnect Enclosure with Handle Type 12, A30SA2608LPPL item measures 30.00x25.38x8.00 inches with a material of Steel colored Gray.
HESCO Part Number
HFA30SA2608LPPL
UPC
783510403690
Manufacturer Part Number
A30SA2608LPPL
Manufacturer
Hoffman
$1,140.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- "Model numbers ending with ""PL"" include handle and handle latching hardware"
- Seams continuously welded and ground smooth
- Bonding provision on door
- External mounting brackets
- External-formed flange around all sides of enclosure opening
- Removable door with continuous hinge
- Data pocket is high impact thermoplastic
- Oil-resistant gasket
- Collar studs for mounting optional panels
- Holes in body and door for mounting operating handle, operating mechanism, and door closing mechanism
- Available with or without nVent HOFFMAN supplied padlocking defeater handle and latching system
- Includes latch pivot post(s) and adjustable door interlock bracket fastened to door, cover latch bar for door, and instructions for installing disconnects
Specifications
| Height (H) | :Â Â | 762 |
| Width (W) | :Â Â | 645 |
| Depth (D) | :Â Â | 203 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Finish | :Â Â | Powder Coated |
| Exterior Color | :Â Â | Gray |
| Interior Color | :Â Â | White |
| Exterior Color Code | :Â Â | ANSI 61 |
| Thickness (T) | :Â Â | 1.9 |
| Handle Included | :Â Â | Yes |
| Data Pocket Size (D x E) | :Â Â | 305 x 305 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 13 |
| IP Rating | :Â Â | IP65 |
| Weight | :Â Â | 45 |
| Material | :Â Â | Steel |
| Size | :Â Â | 30.00x25.38x8.00 in |
| NEMA Rating | :Â Â | 12 Indoor, dust-resistant |
Data Sheet
Data Sheet - Spec-00245 - NAM-CA
Data Sheet - Spec-00901 - NAM-US
Data Sheet - Spec-01314 - NAM-CA
Downloads
Spec Sheet
Instruction Manual
Instruction Manual - 99401640 - NAM-US
Instruction Manual - 99401665 - NAM-US
Instruction Manual - 99401677 - NAM-US
Certificate
Certificate - CERT-00264 - NAM-US
Certificate - CERT-00052 - NAM-US
Certificate - CE-UKCA-00028_Enclosure-IP65 - NAM-US
