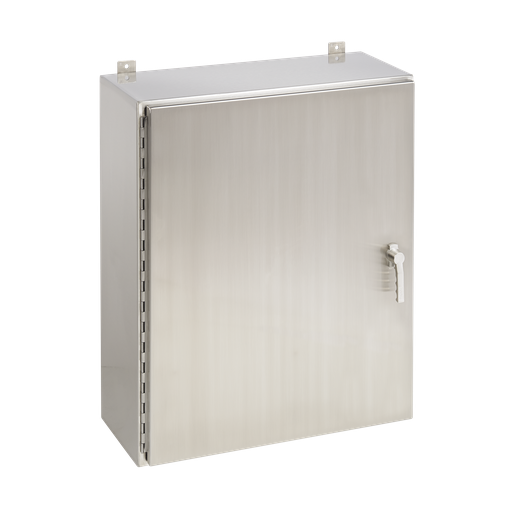

Wallmount 3-Point Latch Type 4X, 36x30x8, Brushed, SS 304
MFG #A36H3008SSLP3PT
$4,019.00Â /Â E
EACH
EACH
Product Description:
These enclosures feature nVent HOFFMAN's exclusive PowerGlide Handle with 3-point latching. This Wallmount 3-Point Latch Type 4X, A36H3008SSLP3PT item measures 36x30x8 in. with a material of SS304, Brushed.
HESCO Part Number
HFA36H3008SSLP3PT
UPC
783510143152
Manufacturer Part Number
A36H3008SSLP3PT
Manufacturer
Hoffman
Wallmount 3-Point Latch Type 4X, 36x30x8, Brushed, SS 304
MFG #A36H3008SSLP3PT
Product Description:
These enclosures feature nVent HOFFMAN's exclusive PowerGlide Handle with 3-point latching. This Wallmount 3-Point Latch Type 4X, A36H3008SSLP3PT item measures 36x30x8 in. with a material of SS304, Brushed.
HESCO Part Number
HFA36H3008SSLP3PT
UPC
783510143152
Manufacturer Part Number
A36H3008SSLP3PT
Manufacturer
Hoffman
$4,019.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket
- Rolled lip around three sides of door
- Internal 3-point latch and Type 316L stainless steel padlocking PowerGlide Handle
- Remove door by pulling stainless steel continuous hinge pin
- Data pocket is high-impact thermoplastic
- Collar studs provided for mounting optional panels
- Exterior hardware on Type 316L stainless steel enclosures matches enclosure material
- Bonding provision on door; grounding stud on body
Specifications
Height (H) | :Â Â | 914 |
Width (W) | :Â Â | 762 |
Depth (D) | :Â Â | 203 |
Protection Rating | :Â Â | NEMA Type 12 |
Finish | :Â Â | Brushed #4 |
Thickness (T) | :Â Â | 2 |
Data Pocket | :Â Â | Large |
Modification Services | :Â Â | Yes |
Type Number | :Â Â | Type 3R |
IP Rating | :Â Â | IP66 |
Weight | :Â Â | 83 |
Material | :Â Â | Stainless Steel |
Size | :Â Â | 36.00x30.00x8.00 in |
NEMA Rating | :Â Â | 4X Watertight, corrosion-resistant |
Downloads
Spec Sheet
Data Sheet
Data Sheet - Spec-00090 - NAM-CA
Data Sheet - Spec-00830 - NAM-US
Data Sheet - Spec-01308 - NAM-CA
Certificate
Certificate - CERT-00084 - NAM-US
Certificate - CE-UKCA-00034_Enclosure-SS-4X - NAM-US
Instruction Manual
Instruction Manual - 35320001 - NAM-US
Instruction Manual - 99401640 - NAM-US
Instruction Manual - 99401677 - NAM-US

Data Sheet



Certificate


Instruction Manual



- Seams continuously welded and ground smooth
- Seamless foam-in-place gasket
- Rolled lip around three sides of door
- Internal 3-point latch and Type 316L stainless steel padlocking PowerGlide Handle
- Remove door by pulling stainless steel continuous hinge pin
- Data pocket is high-impact thermoplastic
- Collar studs provided for mounting optional panels
- Exterior hardware on Type 316L stainless steel enclosures matches enclosure material
- Bonding provision on door; grounding stud on body
Specifications
Height (H) :Â Â 914 Width (W) :Â Â 762 Depth (D) :Â Â 203 Protection Rating :Â Â NEMA Type 12 Finish :Â Â Brushed #4 Thickness (T) :Â Â 2 Data Pocket :Â Â Large Modification Services :Â Â Yes Type Number :Â Â Type 3R IP Rating :Â Â IP66 Weight :Â Â 83 Material :Â Â Stainless Steel Size :Â Â 36.00x30.00x8.00 in NEMA Rating :Â Â 4X Watertight, corrosion-resistant - Downloads
Spec Sheet
Data SheetData Sheet - Spec-00090 - NAM-CA
Data Sheet - Spec-00830 - NAM-US
Data Sheet - Spec-01308 - NAM-CA
CertificateCertificate - CERT-00084 - NAM-US
Certificate - CE-UKCA-00034_Enclosure-SS-4X - NAM-US
Instruction ManualInstruction Manual - 35320001 - NAM-US
Instruction Manual - 99401640 - NAM-US
Instruction Manual - 99401677 - NAM-US
