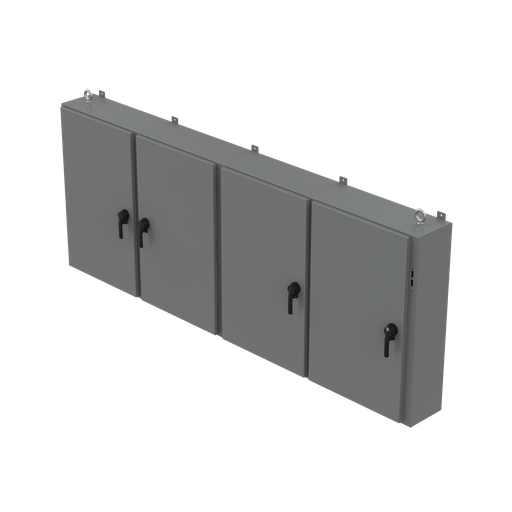

Low-Profile 4-Door Disconnect Type 12, 42.00x108.50x10.00, Gray, Steel
MFG #A42X4E10810
$5,167.00Â /Â E
EACH
EACH
Product Description:
Heavy duty multi-bay enclosure with a lower profile to maintain line of sight in factory. This Low-Profile 4-Door Disconnect Type 12, A42X4E10810 item measures 42.00x108.50x10.00 inches with material of Steel colored Gray.
HESCO Part Number
HFA42X4E10810
UPC
783510127985
Manufacturer Part Number
A42X4E10810
Manufacturer
Hoffman
Low-Profile 4-Door Disconnect Type 12, 42.00x108.50x10.00, Gray, Steel
MFG #A42X4E10810
Product Description:
Heavy duty multi-bay enclosure with a lower profile to maintain line of sight in factory. This Low-Profile 4-Door Disconnect Type 12, A42X4E10810 item measures 42.00x108.50x10.00 inches with material of Steel colored Gray.
HESCO Part Number
HFA42X4E10810
UPC
783510127985
Manufacturer Part Number
A42X4E10810
Manufacturer
Hoffman
$5,167.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Seams continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough excludes liquids and contaminants
- Heavy duty lifting eyes anchor into reinforced top on larger models
- Removable centerposts for easy panel installation
- Concealed, easy-to-remove hinges
- Heavy duty latch mechanism operated by zinc die-cast padlocking defeater handle on all doors; 2-point latch on enclosures up to 36 in. (914 mm); 3-point latch on enclosures 42 in. (1067 mm) and above
- Oil-resistant gasket
- Removable .127-in. thick steel panels mount on collar studs
- Master door is far right-hand door on all enclosures
- Defeater on master door requires a screwdriver to open
- Preferred cutout on right flange provides mounting for most disconnect switches and circuit breakers
- Enclosures with three to five doors have three stiffeners on rear of body
Specifications
| Height (H) | :Â Â | 1,067 |
| Width (W) | :Â Â | 2,756 |
| Depth (D) | :Â Â | 254 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Finish | :Â Â | Powder Coated |
| Color Code | :Â Â | ANSI 61 |
| Thickness (T) | :Â Â | 3.07405405405405 |
| Body Stiffener | :Â Â | 0 |
| Panel Quantity | :Â Â | 2 |
| Lifting Eye Quantity | :Â Â | 4 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 12 |
| IP Rating | :Â Â | IP55 |
| NEMA Rating | :Â Â | 12 Indoor, dust-resistant |
| Weight | :Â Â | 667 |
| Material | :Â Â | Steel |
| Size | :Â Â | 42.00x108.50x10.00 in |
| Color | :Â Â | Gray |
- Seams continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough excludes liquids and contaminants
- Heavy duty lifting eyes anchor into reinforced top on larger models
- Removable centerposts for easy panel installation
- Concealed, easy-to-remove hinges
- Heavy duty latch mechanism operated by zinc die-cast padlocking defeater handle on all doors; 2-point latch on enclosures up to 36 in. (914 mm); 3-point latch on enclosures 42 in. (1067 mm) and above
- Oil-resistant gasket
- Removable .127-in. thick steel panels mount on collar studs
- Master door is far right-hand door on all enclosures
- Defeater on master door requires a screwdriver to open
- Preferred cutout on right flange provides mounting for most disconnect switches and circuit breakers
- Enclosures with three to five doors have three stiffeners on rear of body
Specifications
Height (H) :Â Â 1,067 Width (W) :Â Â 2,756 Depth (D) :Â Â 254 Protection Rating :Â Â NEMA Type 12 Finish :Â Â Powder Coated Color Code :Â Â ANSI 61 Thickness (T) :Â Â 3.07405405405405 Body Stiffener :Â Â 0 Panel Quantity :Â Â 2 Lifting Eye Quantity :Â Â 4 Modification Services :Â Â Yes Type Number :Â Â Type 12 IP Rating :Â Â IP55 NEMA Rating :Â Â 12 Indoor, dust-resistant Weight :Â Â 667 Material :Â Â Steel Size :Â Â 42.00x108.50x10.00 in Color :Â Â Gray - Certificate
Certificate - CERT-00053 - NAM-USCertificate - CERT-00264 - NAM-USCertificate - CE-UKCA-00019_Enclosure-Large-12 - NAM-US
Data SheetData Sheet - Spec-00005 - NAM-CAData Sheet - Spec-00908 - NAM-US
DownloadsSpec Sheet
Instruction ManualInstruction Manual - 87573563 - NAM-US
