Two-Door Floorstand Gray Inside Type 12, 60.06x60.06x12.06, Gray, Steel
MFG #A606012LPG
$3,383.00Â /Â E
EACH
EACH
Product Description:

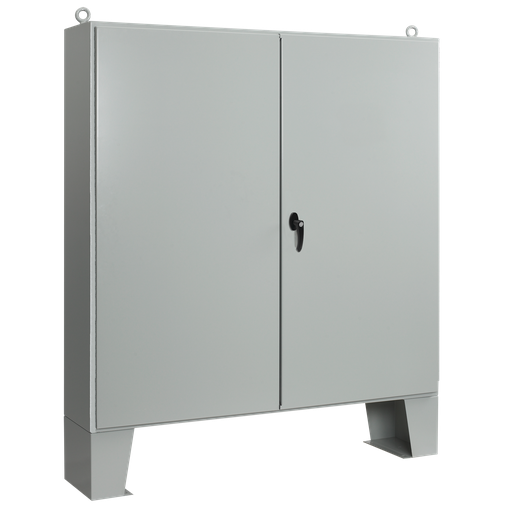

NEMA Type 12 two door enclosure on floorstands with 3 point latch. This Two-Door Floorstand Gray Inside Type 12, A606012LPG item measures 60.06x60.06x12.06 inches with a material of Steel colored Gray.
HESCO Part Number
HFA606012LPG
UPC
783510383893
Manufacturer Part Number
A606012LPG
Manufacturer
Hoffman
Two-Door Floorstand Gray Inside Type 12, 60.06x60.06x12.06, Gray, Steel
MFG #A606012LPG
Product Description:
NEMA Type 12 two door enclosure on floorstands with 3 point latch. This Two-Door Floorstand Gray Inside Type 12, A606012LPG item measures 60.06x60.06x12.06 inches with a material of Steel colored Gray.
HESCO Part Number
HFA606012LPG
UPC
783510383893
Manufacturer Part Number
A606012LPG
Manufacturer
Hoffman
$3,383.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Seams continuously welded and ground smooth; no holes or knockouts
- 3-point latch mechanism operated by oil-tight key-lock handle
- Gasketed overlapping doors with no centerpost
- Concealed, easy-to-remove hinges
- Data pocket is high-impact thermoplastic
- 12-in. floor stands bolted-on to enclosure
- Heavy-duty lifting eyes
- Panel supports
- Oil-resistant gasket
- Collar studs for mounting optional panel
- Bonding provision on door
- Provision for mounting fluorescent light
Specifications
| Height (H) | :Â Â | 1,526 |
| Width (W) | :Â Â | 1,526 |
| Depth (D) | :Â Â | 306 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Finish | :Â Â | Powder Coated |
| Exterior Color | :Â Â | Gray |
| Exterior Color Code | :Â Â | ANSI 61 |
| Interior Color | :Â Â | Gray |
| Thickness (T) | :Â Â | 2.66 |
| Panel Gauge | :Â Â | 11 |
| Stiffener | :Â Â | 533 |
| NEMA Rating | :Â Â | 12 Indoor, dust-resistant |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 12 |
| Weight | :Â Â | 441 |
| Material | :Â Â | Steel |
| Size | :Â Â | 60.06x60.06x12.06 in |
| Color | :Â Â | Gray |
- Seams continuously welded and ground smooth; no holes or knockouts
- 3-point latch mechanism operated by oil-tight key-lock handle
- Gasketed overlapping doors with no centerpost
- Concealed, easy-to-remove hinges
- Data pocket is high-impact thermoplastic
- 12-in. floor stands bolted-on to enclosure
- Heavy-duty lifting eyes
- Panel supports
- Oil-resistant gasket
- Collar studs for mounting optional panel
- Bonding provision on door
- Provision for mounting fluorescent light
Specifications
Height (H) :Â Â 1,526 Width (W) :Â Â 1,526 Depth (D) :Â Â 306 Protection Rating :Â Â NEMA Type 12 Finish :Â Â Powder Coated Exterior Color :Â Â Gray Exterior Color Code :Â Â ANSI 61 Interior Color :Â Â Gray Thickness (T) :Â Â 2.66 Panel Gauge :Â Â 11 Stiffener :Â Â 533 NEMA Rating :Â Â 12 Indoor, dust-resistant Modification Services :Â Â Yes Type Number :Â Â Type 12 Weight :Â Â 441 Material :Â Â Steel Size :Â Â 60.06x60.06x12.06 in Color :Â Â Gray - Data Sheet
Data Sheet - Spec-00295 - NAM-CAData Sheet - Spec-00784 - NAM-USData Sheet - Spec-01318 - NAM-CA
CertificateCertificate - CE-00014 - NAM-USCertificate - CERT-00034 - NAM-US
Instruction ManualInstruction Manual - 23155002 - NAM-US
DownloadsSpec Sheet
