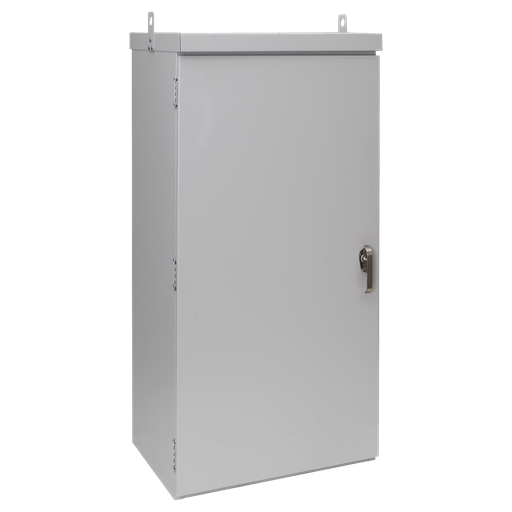

WeatherPro Outdoor Pad Mount Type 3R, 60.00x25.00x18.00, Lt Gray, Steel
MFG #A60R2518FSLP
$2,018.00Â /Â E
EACH
EACH
Product Description:
WeatherPro Pad Mount protects controls, drives, power distribution components in outdoor applications. This WeatherPro Outdoor Pad Mount Type 3R, A60R2518FSLP item measures 60.00x25.00x18.00 inches with a material of Steel colored Lt Gray.
HESCO Part Number
HFA60R2518FSLP
UPC
783510144128
Manufacturer Part Number
A60R2518FSLP
Manufacturer
Hoffman
WeatherPro Outdoor Pad Mount Type 3R, 60.00x25.00x18.00, Lt Gray, Steel
MFG #A60R2518FSLP
Product Description:
WeatherPro Pad Mount protects controls, drives, power distribution components in outdoor applications. This WeatherPro Outdoor Pad Mount Type 3R, A60R2518FSLP item measures 60.00x25.00x18.00 inches with a material of Steel colored Lt Gray.
HESCO Part Number
HFA60R2518FSLP
UPC
783510144128
Manufacturer Part Number
A60R2518FSLP
Manufacturer
Hoffman
$2,018.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- 3-point latching system with heavy duty handle
- Padlock provision in handle
- Open bottom with pre-punched mounting hole flange
- Drip edge overhang on top
- Louvered overhang with a closure plate
- Studs included for mounting optional panels on threaded bolts
- Welded body construction
- Sturdy 7 gauge lifting tabs
- Overlapping doors with no center post on two-door models
- Bonding provision on each door
- Bolted hinges on doors
- Enclosures are finished with paint over plated surfaces
Specifications
| Height (H) | :Â Â | 1,524 |
| Width (W) | :Â Â | 635 |
| Depth (D) | :Â Â | 457 |
| Protection Rating | :Â Â | NEMA Type 3R |
| Product Family | :Â Â | WeatherPro |
| Finish | :Â Â | Galvanized |
| Color Code | :Â Â | RAL 7035 |
| Thickness (T) | :Â Â | 1.9 |
| Mounting Dimensions (F x G) | :Â Â | 124 x 188 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 3R |
| IP Rating | :Â Â | IP32 |
| Weight | :Â Â | 197 |
| Sub Brand | :Â Â | WeatherPro |
| Material | :Â Â | Steel |
| Size | :Â Â | 60.00x25.00x18.00 in |
| Color | :Â Â | LtGray |
| NEMA Rating | :Â Â | 3R Weather-resistant, except dust |
Certificate
Certificate - CERT-00067 - NAM-US
Certificate - CE-UKCA-00010_Enclosure-3R - NAM-US
Data Sheet
Data Sheet - Spec-00088 - NAM-CA
Instruction Manual
Instruction Manual - 35320001 - NAM-US
Downloads
Spec Sheet
Certificate - CERT-00067 - NAM-USCertificate - CE-UKCA-00010_Enclosure-3R - NAM-USData Sheet
Data Sheet - Spec-00088 - NAM-CAInstruction Manual
Instruction Manual - 35320001 - NAM-USDownloads
Spec Sheet- 3-point latching system with heavy duty handle
- Padlock provision in handle
- Open bottom with pre-punched mounting hole flange
- Drip edge overhang on top
- Louvered overhang with a closure plate
- Studs included for mounting optional panels on threaded bolts
- Welded body construction
- Sturdy 7 gauge lifting tabs
- Overlapping doors with no center post on two-door models
- Bonding provision on each door
- Bolted hinges on doors
- Enclosures are finished with paint over plated surfaces
Specifications
Height (H) :Â Â 1,524 Width (W) :Â Â 635 Depth (D) :Â Â 457 Protection Rating :Â Â NEMA Type 3R Product Family :Â Â WeatherPro Finish :Â Â Galvanized Color Code :Â Â RAL 7035 Thickness (T) :Â Â 1.9 Mounting Dimensions (F x G) :Â Â 124 x 188 Modification Services :Â Â Yes Type Number :Â Â Type 3R IP Rating :Â Â IP32 Weight :Â Â 197 Sub Brand :Â Â WeatherPro Material :Â Â Steel Size :Â Â 60.00x25.00x18.00 in Color :Â Â LtGray NEMA Rating :Â Â 3R Weather-resistant, except dust - CertificateCertificate - CERT-00067 - NAM-USCertificate - CE-UKCA-00010_Enclosure-3R - NAM-US
Data SheetData Sheet - Spec-00088 - NAM-CA
Instruction ManualInstruction Manual - 35320001 - NAM-US
DownloadsSpec Sheet
