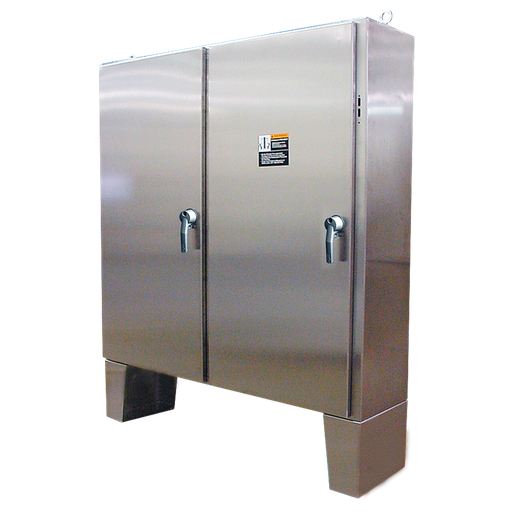

Floor-Mount Disconnect 2-Door Right 3pt Latch Type 4X, 60x49x12, Brushed, SS304
MFG #A60X4912SSLPN4
$18,296.00Â /Â E
EACH
EACH
Product Description:
Designed to house flange-mounted disconnect switches and circuit breakers. This Floor-Mount Disconnect 2-Door Right 3pt Latch Type 4X, A60X4912SSLPN4 item measures 60x49x12in with material SS304 finish Brushed.
HESCO Part Number
HFA60X4912SSLPN4
UPC
783510110970
Manufacturer Part Number
A60X4912SSLPN4
Manufacturer
Hoffman
Floor-Mount Disconnect 2-Door Right 3pt Latch Type 4X, 60x49x12, Brushed, SS304
MFG #A60X4912SSLPN4
Product Description:
Designed to house flange-mounted disconnect switches and circuit breakers. This Floor-Mount Disconnect 2-Door Right 3pt Latch Type 4X, A60X4912SSLPN4 item measures 60x49x12in with material SS304 finish Brushed.
HESCO Part Number
HFA60X4912SSLPN4
UPC
783510110970
Manufacturer Part Number
A60X4912SSLPN4
Manufacturer
Hoffman
$18,296.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Seams continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough collar excludes liquids and contaminants
- Removable centerposts permit easy panel installation
- Heavy-gauge continuous hinges
- Heavy-duty lifting eyes are Type 316 stainless steel
- Data pocket is high-impact thermoplastic
- 15-inch floor stands are welded to enclosure
- Seamless foam-in-place gasket provides oil-tight and dust-tight seal against contaminants
- Panel supports
- Collar studs provided for mounting optional panels
- Heavy-duty 3-point latching mechanism operated by Type 316 stainless steel PowerGlide padlocking handle on all doors
- Masterdoor is right-hand door on X enclosures and left-hand door on CPX enclosures
- Type 316 stainless steel handle with defeater on master door
- Type 316 stainless steel handle (non-defeater) on slave door
- Mechanical interlock operated by master door prevents slave door from being opened first; doors can be closed in any order
- Preferred cutout on right flange provides mounting for most disconnect operators
- Bonding provision on doors; grounding studs on body
- Accessory mounting channel provided in enclosure top
Specifications
| Height (H) | :Â Â | 1,527 |
| Width (W) | :Â Â | 1,265 |
| Depth (D) | :Â Â | 308 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Finish | :Â Â | Brushed #4 |
| Thickness (T) | :Â Â | 2.78 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 3R |
| IP Rating | :Â Â | IP66 |
| Weight | :Â Â | 404 |
| Material | :Â Â | Stainless Steel |
| Size | :Â Â | 60.12x49.75x12.12 in |
| NEMA Rating | :Â Â | 4X Watertight, corrosion-resistant |
